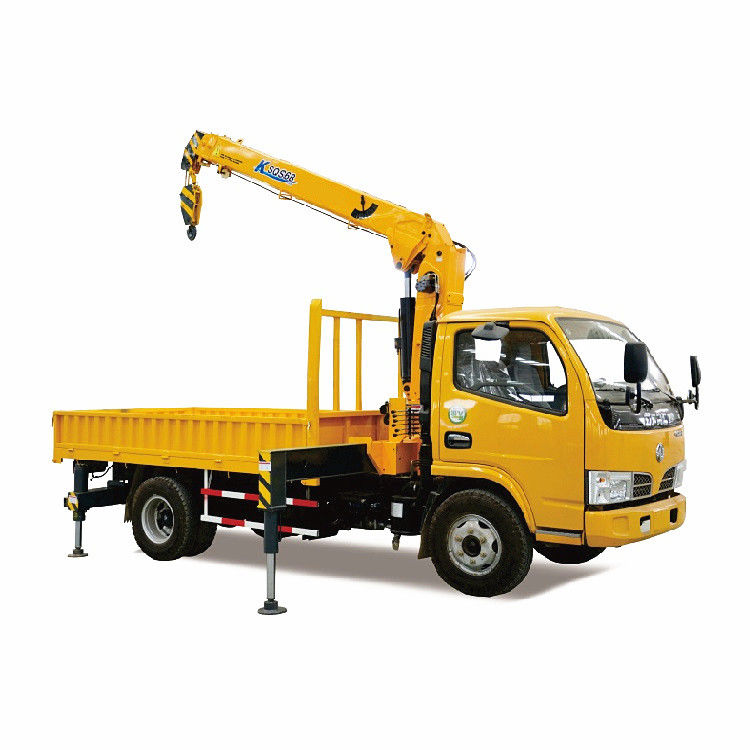

Dongfeng 3.2 Ton Lorry Mounted Crane With Manipulator 1898-3329 Mm Span

3.2 Ton Lorry Mounted Crane

Lorry Mounted Crane With Manipulator

Lorry Mounted Mini Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

Dongfeng 3.2 Ton Lorry Mounted Crane With Manipulator 1898-3329 Mm Span

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

3 Ton

Rated Lifting Moment:

6.8 T.M

Max. Lifting Height:

9 M

Span:

1898-3329 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

New Product 2020

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Gearbox, Engine

Weight (KG):

1290 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

1-3 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

850 Mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

3.2 Ton Lorry Mounted Crane

Lorry Mounted Crane With Manipulator

Lorry Mounted Mini Crane

Payment & Shipping Terms

Price

$7,000.00/units 1-4 units

Packaging Details

Nude packing

Supply Ability

3000 Unit/Units per Year

Telescopic Boom Mini Jib Crane Customized 8 Ton Hydraulic Mobile Crane

Get Best Price

Construction Lifting Cranes 5 Ton And 8 Ton Mini Manipulator Crane

Get Best Price

10 Ton Stiff Arm Mobile Truck Mounted Crane With 25 T.M Rated Lifting Moment

Get Best Price

Truck Mounted Mini Jib Crane Hydraulic Straight Arm 12 Ton For Construction

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

1898-3329 Mm Span Dongfeng 3.2 Ton Lorry Mounted Crane With Manipulator 1-3 Ton Capacity

Product Description

NOTE: The price is only for crane part.

Project		Unit	Value
Crane Dimension	Crane Model	-	SQ 3.2T
	Max. Lifting Capacity	kg	3200
	Max. Lifting Height	m	9
	Working Radius/ Span	m	0.67-10
	Rotation Angle	º	360 Continious
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	3
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	1898-3329
	Crane Weight	kg	1290
	Hydraulic Tank Capacity	L	35
	Max. Flow Rate of Hydraulic Oil System	L/min	25
	Hydraulic System Rated Pressure	Mpa	21
	Installation Space	mm	850
Working Parameter	The Basic Boom Length	m	3.38-11.0
	Max. Lifting Torque	T.m	6.8
	Max. Slewing Speed	r/ min	2.5
