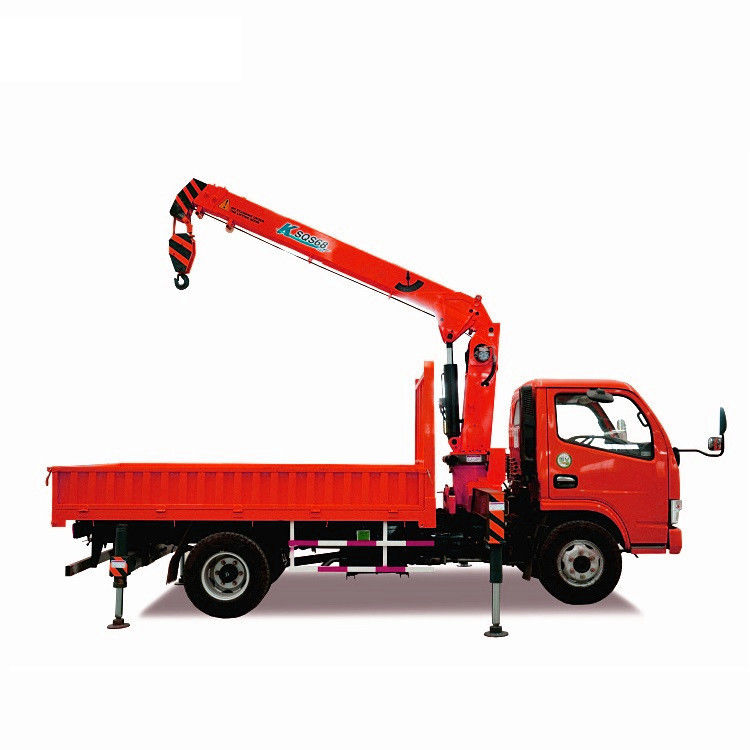

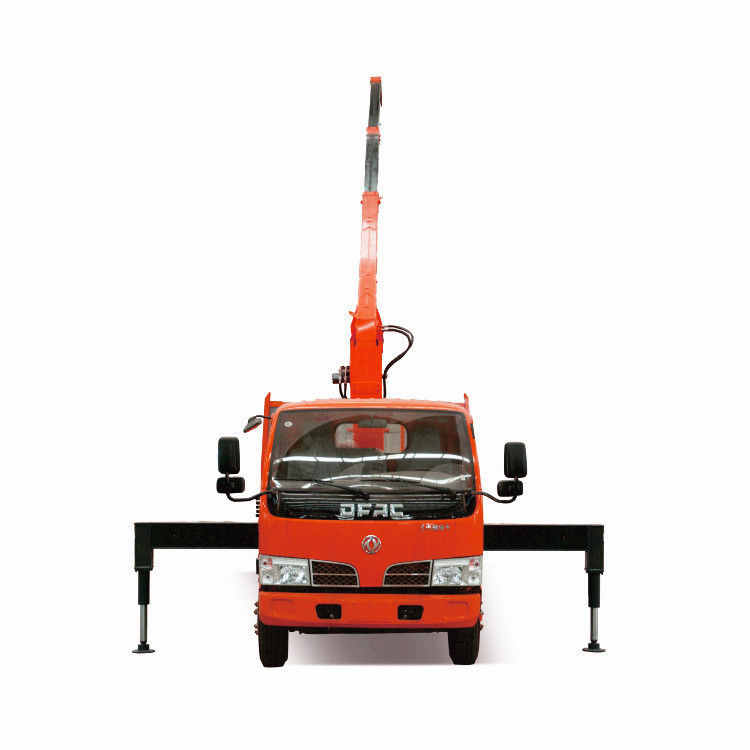

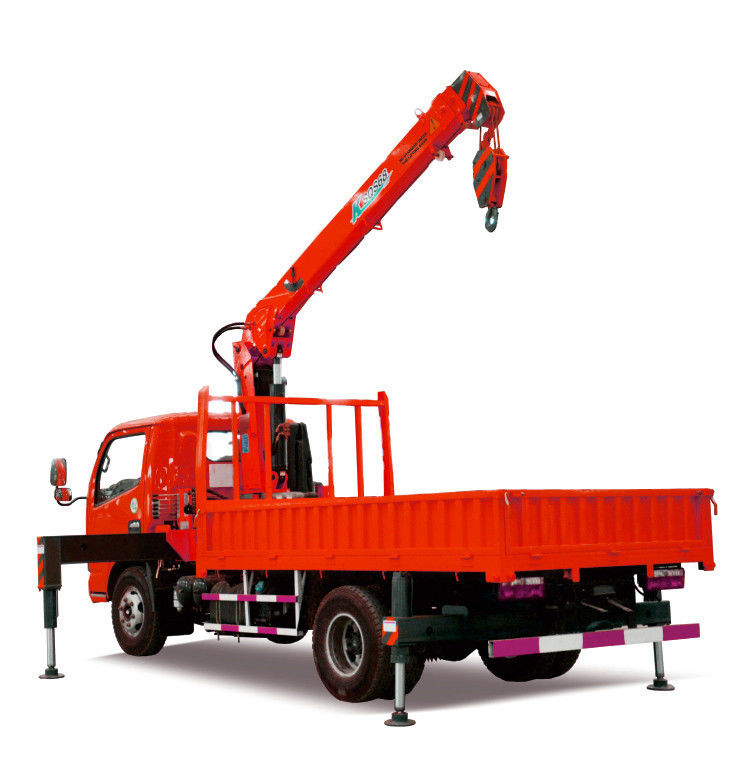

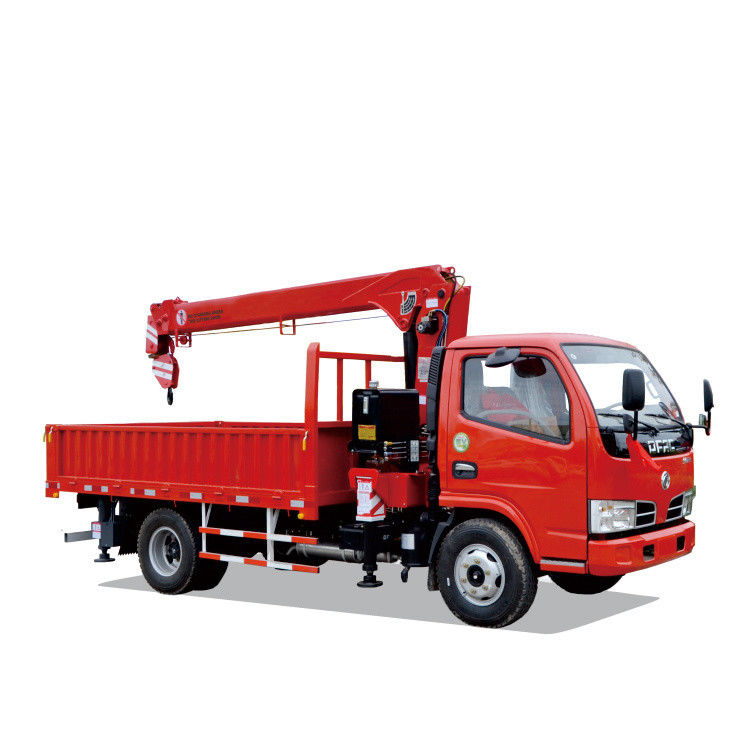

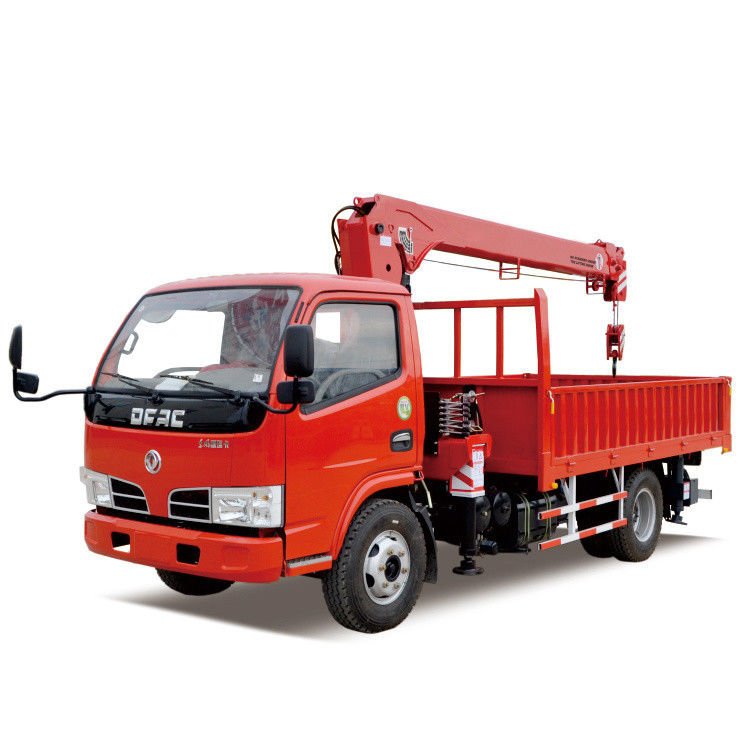

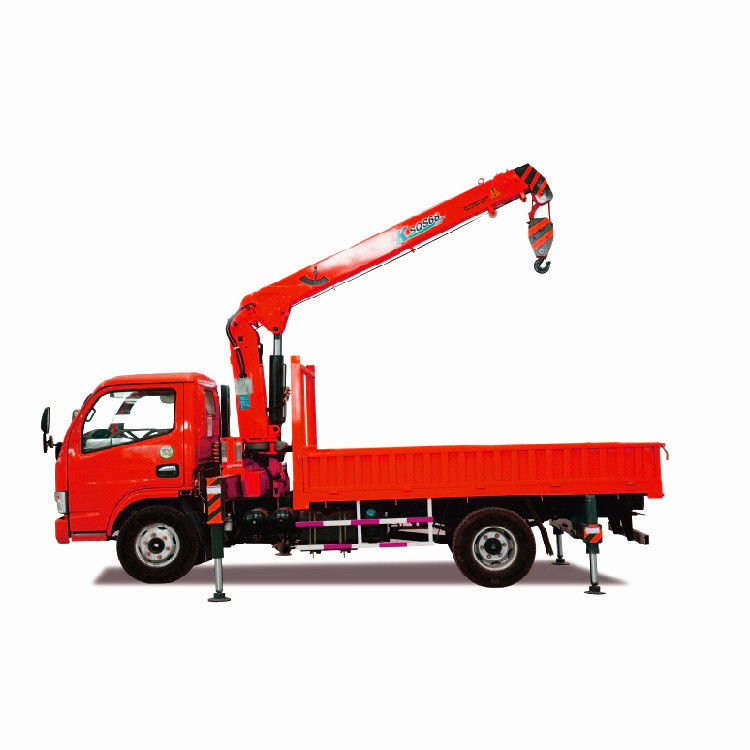

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom

5 Tons Mobile Truck Mounted Crane

Construction Lifting Truck Mounted Crane

Telescopic 5 Ton Boom Truck

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

5 Ton

Rated Lifting Moment:

12.5 T.M

Max. Lifting Height:

11.5 M

Span:

2280-5100 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Pump

Weight (KG):

2260 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

5 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

900 Mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

5 Tons Mobile Truck Mounted Crane

Construction Lifting Truck Mounted Crane

Telescopic 5 Ton Boom Truck

Payment & Shipping Terms

Price

$9,300.00/units 1-2 units

Packaging Details

Nude packing

Supply Ability

3000 Unit/Units per Year

Telescopic Boom Mobile Lorry Crane 5 Ton MOOG Hydraulic Cylinder For Heavy Loads

Get Best Price

Mobile Telescopic Arm Lorry Crane 6.3 Ton For Industrial Construction

Get Best Price

3.2 Ton Straight Arm Mobile Truck Mounted Crane With 7.6 T.M Rated Lifting Moment

Get Best Price

Stiff Loader Mobile Lorry Crane 8 Ton Straight Arm With Max. Lifting Height Of 15.2m

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom

Product Description

NOTE: The price is for crane part only!

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 0

Project		Unit	Value
Crane Dimension	Crane Model	---	SQ 5T
	Max. Lifting Capacity	kg	5000
	Max. Lifting Height	m	8.7
	Working Radius/ Span	m	2.2-11
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
Chassis Truck Data and Weight	Chassis Brand	---	Dongfeng
	Overall Dimensions (LWH)	mm	900025003850
	Cargo Body Dimensions (LWH)	mm	60002300550
	Total Mass	kg	15800
	Rated Loading	kg	4225
	Front and Rear Axle Load	kg	5600/ 10200
	Engine Model	---	Cummins
	Engine Model	---	ISD185 50
	Engine Powder/ Engine Displacement	HP/ml	185/ 4500
Working Parameter	Gearbox	---	6 Forwards& 1 Reverse
	Service Brake	---	Automatically Air-Cut Brake
	Power Steering Model	---	Hydraulic sSteering with Power Assistance
	The Basic Boom Length	m	3.8-8.7
	Diameter of Wire Rope	mm	8
	Length of Wire Rope	m	55
	Speed of Sing Rope (No Load)	m/min	45
	Max. Lines of the Hook	Times	4
Travelling Parameter	Max. Travel Speed	Km/ h	90
	Max. Gradeability	%	30
	Min. Turning Diameter	m	14.5

Product Description

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 3

Prodution Progress

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 4

Packing & Shipping

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 5

Client Visit

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 6

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 7

Certifications

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 8

Optional Device

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 9

Foreign Cases

Construction Lifting 5 Tons Mobile Truck Mounted Crane With Stiff Loader Telescopic Boom 10
