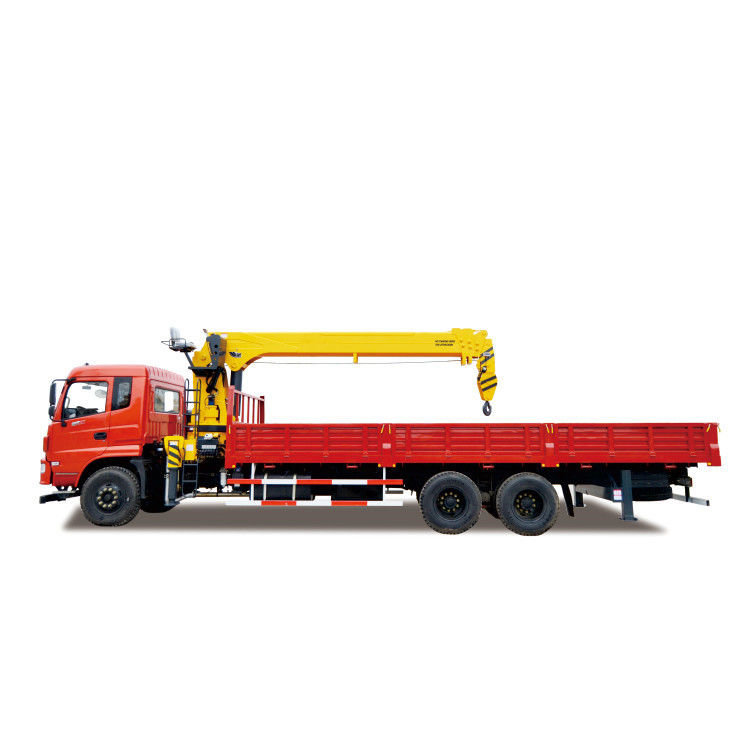

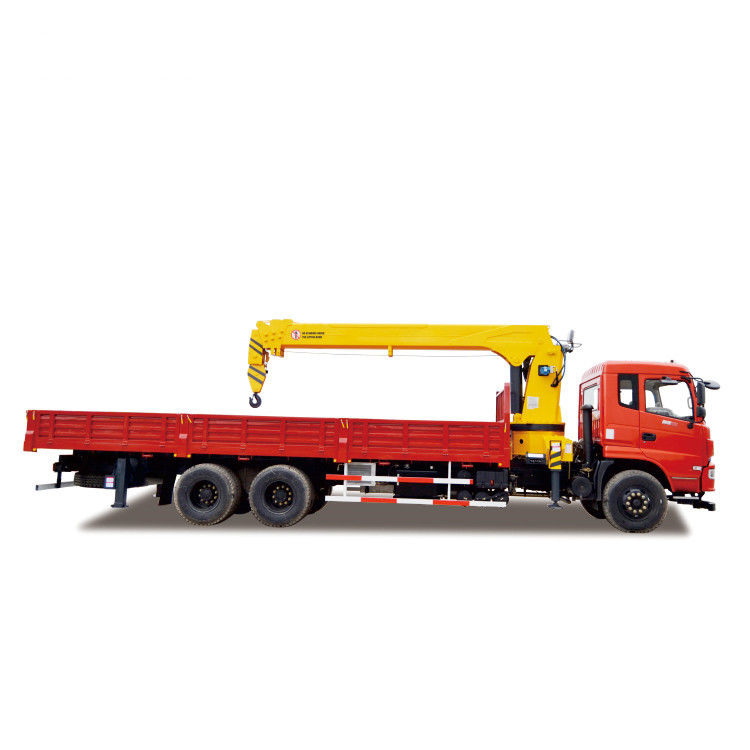

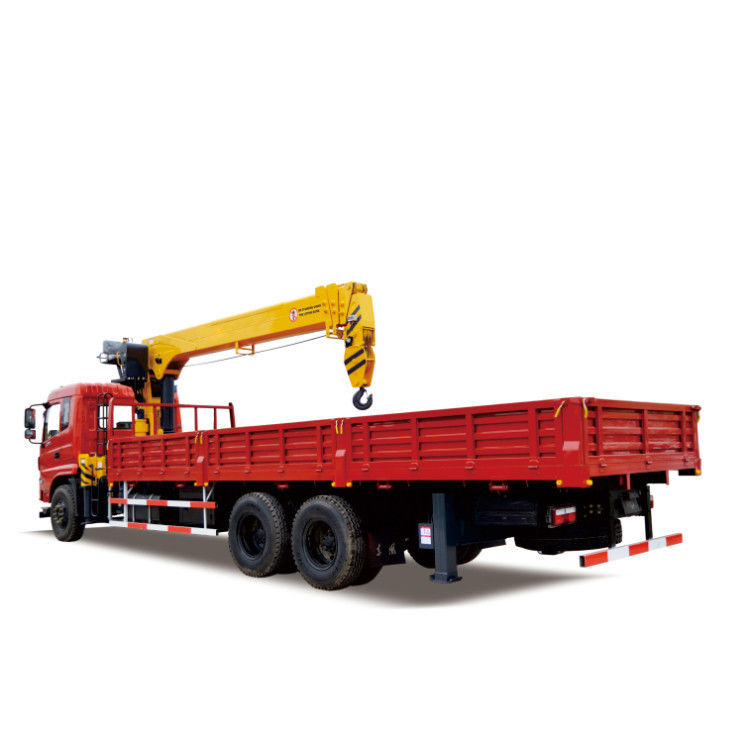

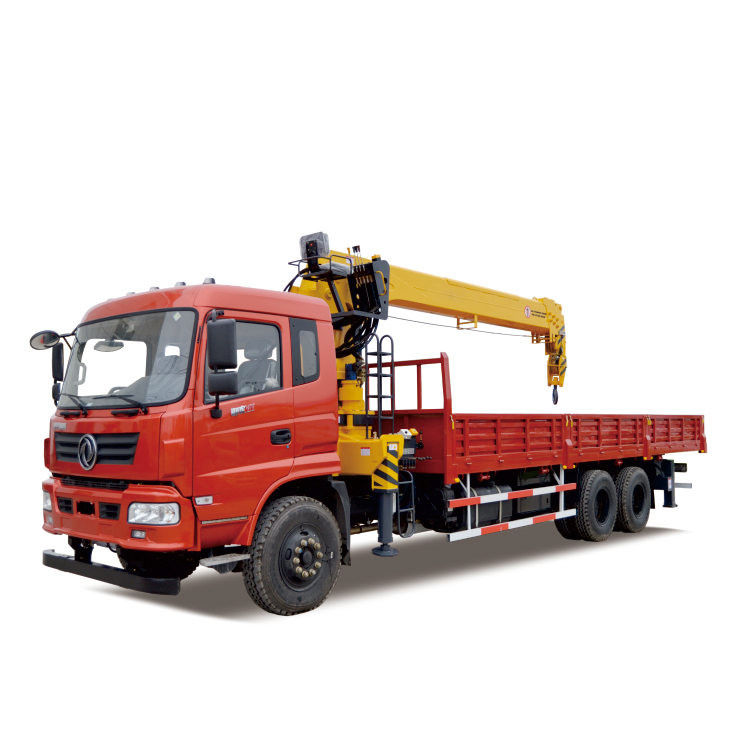

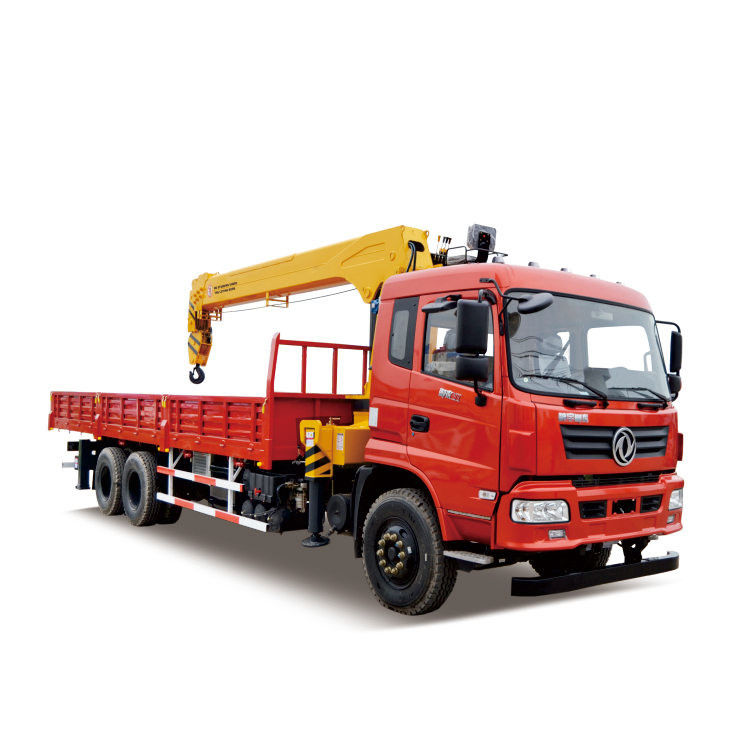

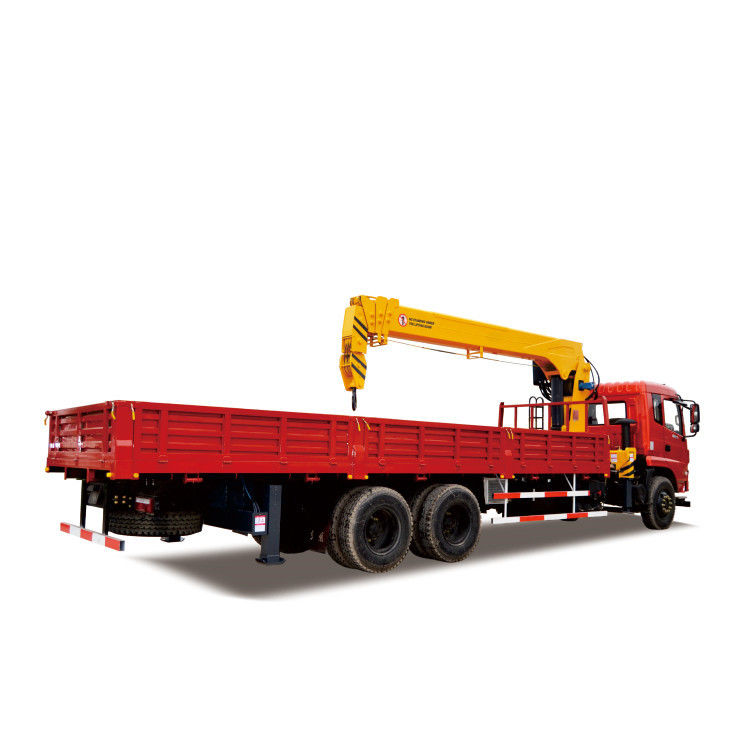

Name: 12 Tons Straight Arm Truck Mounted Telescopic Knuckle Boom Crane
Brand: Henan Liyue Machinery Equipment Co., Ltd.
SKU: SQ12A4 SQ12A5
Price: 1.00 USD
Availability: InStock

Home > products > Truck Mounted Crane >

12 Tons Straight Arm Truck Mounted Telescopic Knuckle Boom Crane

12 Tons Telescopic Knuckle Boom Crane

Straight Arm Truck Mounted Crane

12 Tons Truck Mounted Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Certification:

Model Number:

SQ12A4 SQ12A5

Request A Quote

12 Tons Straight Arm Truck Mounted Telescopic Knuckle Boom Crane

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

12 Ton

Rated Lifting Moment:

5.15-15 T.M

Max. Lifting Height:

17.2 M

Span:

2270-5270 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Pump

Weight (KG):

4316 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

12 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

1300 Mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

12 Tons Telescopic Knuckle Boom Crane

Straight Arm Truck Mounted Crane

12 Tons Truck Mounted Crane

Payment & Shipping Terms

Minimum Order Quantity

Price

$21,400.00/units 1-2 units

Packaging Details

Nude packing

Supply Ability

3000 Unit/Units per Year

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price

Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price

Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price

Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price

86-153-3382-6131

Contact Now

Product Description

12ton Construction Telescopic Boom Truck Mounted Crane

NOTE: The price is for crane part only.

SPECIFICATIONS FOR 12 TON CRANE TRUCK
Crane Dimension	Model	-	SQ 12T
	Max. Lifting Capacity	kg	12000
	Max. Lifting Height	m	17.2
	Working Radius/ Span	m	2.5- 13.5
	Rotation Angle	º	360
	Boom Elevation	º	3-75
	Boom Sections	Pcs	4
	Outrigger Span (Fully Extended)	mm	2270-5270
	Crane Weight	kg	4316
	Hydraulic Tank Capacity	L	160
	Max. Flow Rate of Hydraulic Oil System	L/min	63
	Hydraulic System Rated Pressure	Mpa	26
	Installation Space	mm	1300
Working Parameter	The Basic Boom Length	m	5.15-15
	Max. Lifting Torque	T.m	30
	Max. Slewing Speed	r/ min	2
