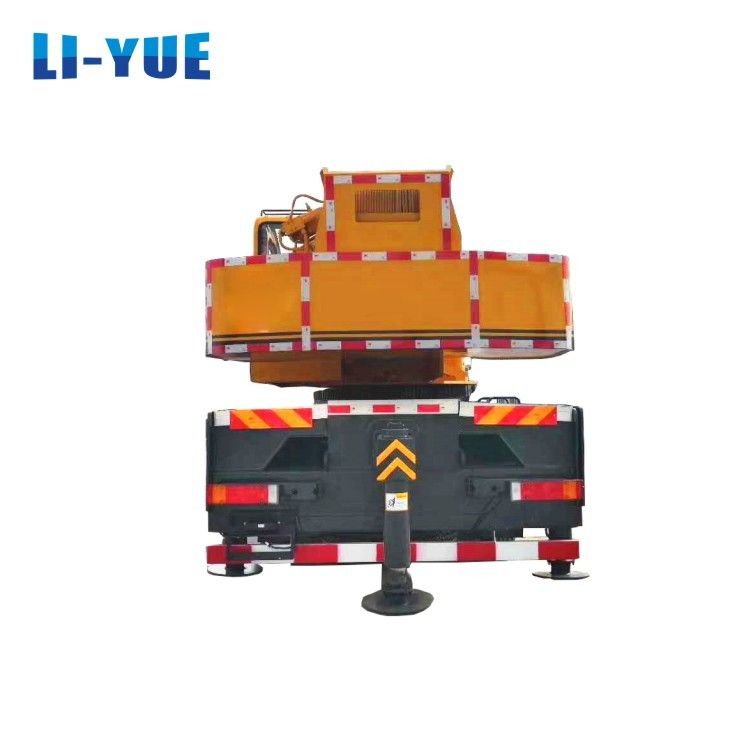

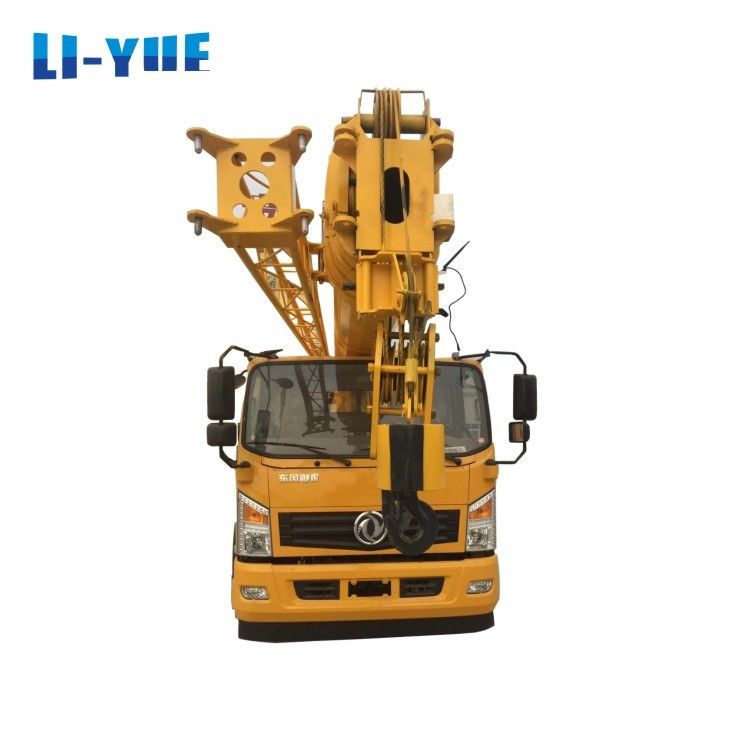

Name: Lifting Machinery 20 ton Hydraulic Stiff Arm Truck Crane
Brand: Henan Liyue Machinery Equipment Co., Ltd.
SKU: QY20-5-34
Availability: InStock

Home > products > Mobile Truck Crane >

Lifting Machinery 20 ton Hydraulic Stiff Arm Truck Crane

Mobile Stiff Arm Truck Crane

Hydraulic Stiff Arm Truck Crane

20 ton Stiff Arm Truck Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Model Number:

QY20-5-34

Request A Quote

Lifting Machinery 20 ton Hydraulic Stiff Arm Truck Crane

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

20 TON

Rated Lifting Moment:

520 KN.M

Max. Lifting Height:

42.3m

Span:

6.1m

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

3 Months

Core Components:

Pressure Vessel, Motor, Pump, Gearbox, Engine

Weight (KG):

15800 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

20 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Keyword:

Crane Truck Mobile Truck Crane Sizes

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Mobile Stiff Arm Truck Crane

Hydraulic Stiff Arm Truck Crane

20 ton Stiff Arm Truck Crane

Payment & Shipping Terms

Price

$65,000.00/units 1-4 units

China Construction High Performance 16 Tons Telescopic Arm Mobile Truck Crane

Get Best Price

High Performance New Technology 16 Tons Straight Arm Mobile Truck Crane For Construction

Get Best Price

High Altitude 16 Tons Mobile Stiff Arm Hydraulic Truck Crane

Get Best Price

Lifting Machinery 16 ton Hydraulic Stiff Arm Truck Crane

Get Best Price

86-153-3382-6131

Contact Now

Product Description

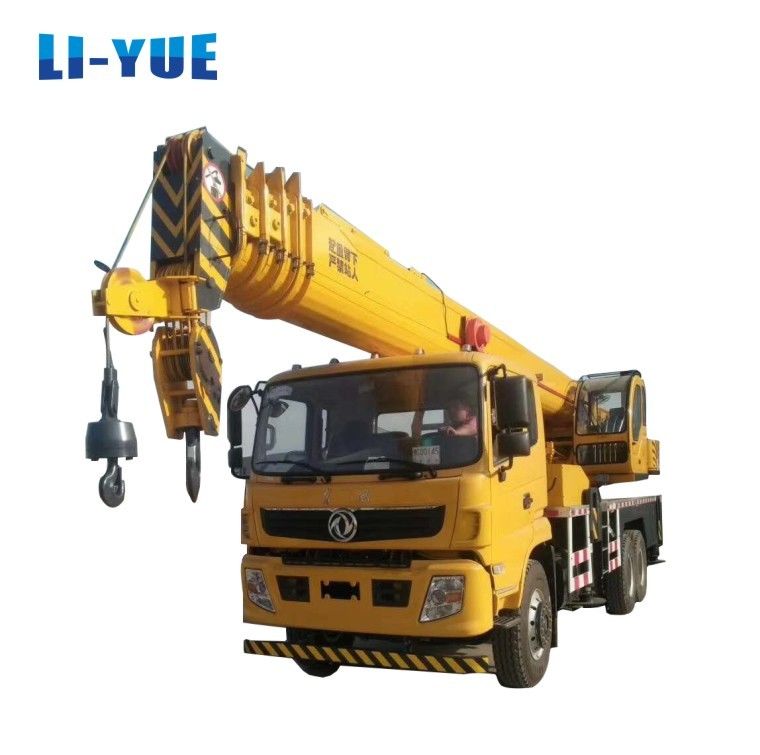

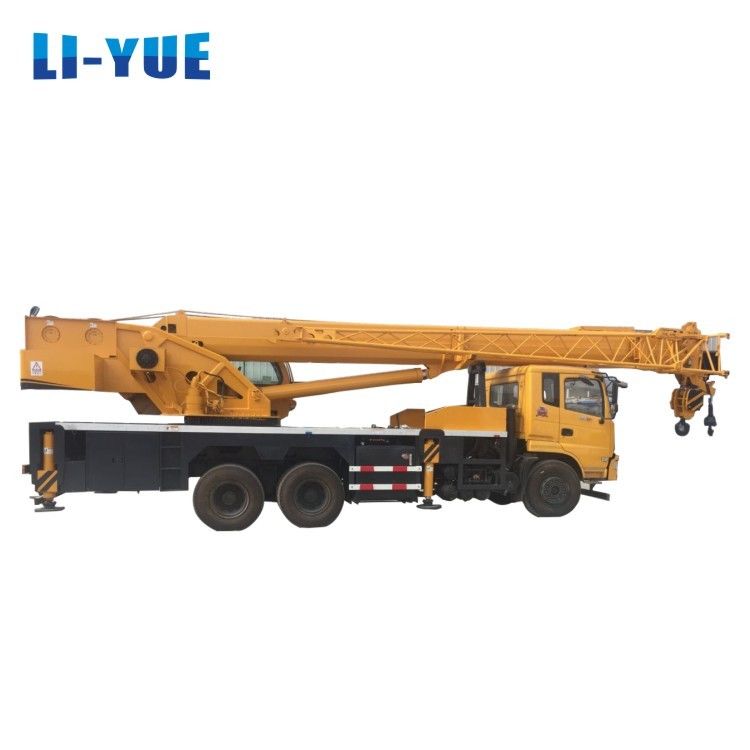

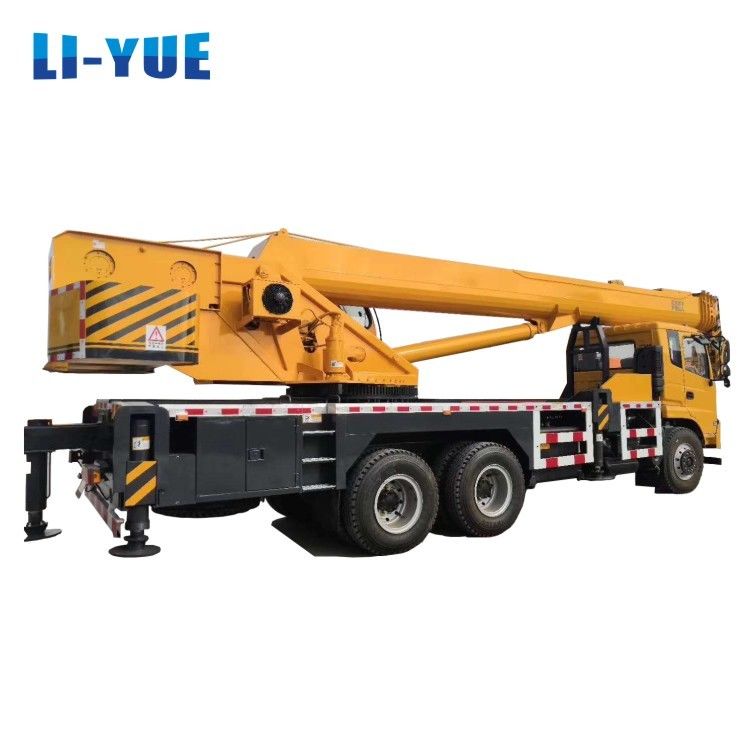

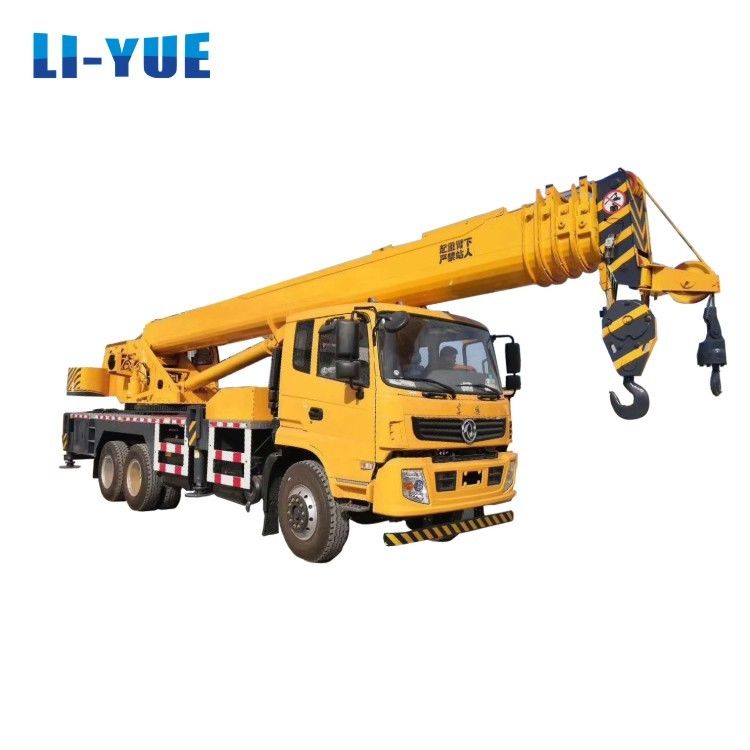

20 Ton Truck Crane With 360 Degree Rotation Angle And Hydraulic Arm On Dongfeng Chassis

Product Description

Project		Unit	Value
Crane Dimension	Model	－	QY 20-5-34
	Dimensions (LWH)	mm	1253525003400
	Outrigger Longitudinal/ Horizontal Span	mm	5230/ 6100
	Outriggers Quantity	Piece	5
	Basic Boom Lifting Length	m	10.4-43.2
	Main Boom Elevation	º	3-80
Working Parameter	Boom Quantity	Section	5
	Max. Total Lifting Capacity	KG	20000
	The Longest Boom Lifting Torque (Max.)	KN.m	520
	The Basic Boom Lifting Torque (Max.)	KN.m	950
	Max. Lifting Height (Fully Extended Boom)	m	42.3
	Max. Lifting Height (Fully Extended Boom+Jib)	m	47
	Working Radius	m	3--28
	Max. Slewing Speed	r/ min	≤3
	Duration for the Boom Come Out/ Lifting	s	35/50
	Speed of Sing Rope(No Load)	m/min	135
	Min. Speed for Main Winch	m/ min	135
	Min. Speed for Auxiliary Winch	m/ min	135
	Duration for the Boom Come Out/ Lifting	s	35/50

Radius/ m	Boom Length/ m
	10.6 m	15.28 m	19.96 m	24.64 m	29.32 m	34 m
	Weight/ t	Weight/ t	Weight/ t	Weight/ t	Weight/ t	Weight/ t
3.0	20	15	13.9
3.5	20	15	13.9
4.0	19.5	15	13.9	11.8
4.5	19.2	15	13.9	11.8
5.0	18.2	14.5	13.9	11.8	9.0
5.5	17.4	14	13.7	11.6	9.0
6.0	13.5	13.5	13.1	11.2	9.0	6.8
6.5	12	12.5	12.5	10.5	8.6	6.8
7.0	11	11.2	12.0	10.0	8.1	6.4
8.0	9.2	9.5	10.0	9.2	7.6	6.1
9.0		7.6	8.2	8.3	7.2	5.6
10.0		6.5	7.0	7.2	6.6	5.2
12.0		4.8	5.1	5.2	5.2	4.4
14.0			4.1	4.0	4.1	3.7
16.0			3.0	3.1	3.2	3.0
18.0				2.4	2.5	2.5
20.0					2.0	2.0
22.0					1.6	1.6
24.0					1.2	1.3
26.0						1
28.0						0.7
