Name: High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane
Brand: Henan Liyue Machinery Equipment Co., Ltd.
Price: 1.00 USD
Availability: InStock

Home > products > Truck Mounted Crane >

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane

8 Ton Hydraulic Truck Mounted Crane

Lorry Crane Truck Mounted Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

8 Ton

Rated Lifting Moment:

4.85-13 T.M

Max. Lifting Height:

15.2 M

Span:

2280-5580 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Pump

Weight (KG):

3315 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

8 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

1200 Mm

High Quality:

Mobile Crane Lifting Capacity

Port:

Qingdao/ Tianjin/ Lianyungang

Highlight:

8 Ton Hydraulic Truck Mounted Crane

Lorry Crane Truck Mounted Crane

Payment & Shipping Terms

Minimum Order Quantity

1 unit

Price

$14,500.00/units 1-2 units

Packaging Details

Nude packing

Supply Ability

3000 Unit/Units per Year

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price

Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price

Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price

Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price

86-153-3382-6131

Contact Now

Product Description

Hydraulic Straight Arm Electric 8 Ton Small Truck Mounted Crane With high Performance

Product Description

NOTE: The price is only for crane part.

Product Description

Project		Unit	Value
Crane Dimension	Crane Model	－	SQ 8
	Max. Lifting Capacity	kg	8,000
	Max. Lifting Height	m	18
	Working Radius/ Span	m	2.5-16.9
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	5
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	2280-5400
	Crane Weight	kg	3315
	Hydraulic Tank Capacity	L	140
	Max. Flow Rate of Hydraulic Oil System	L/min	50
	Hydraulic System Rated Pressure	Mpa	27
	Installation Space	mm	1200
Working Parameter	The Basic Boom Length	m	4.5-16.9
	Max. Lifting Torque	T.m	20
	Max. Slewing Speed	r/ min	2

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane 4

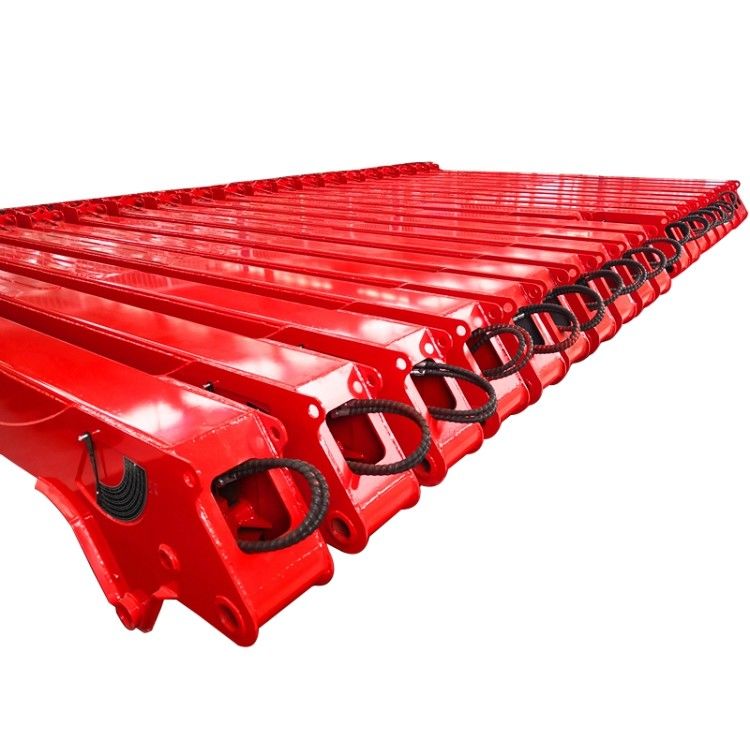

Prodution Progress

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane 5

Packing & Shipping

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane 6

Client Visit

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane 7

Company Information

Henan Liyue Machinery equipment Co., Ltd., located in Lankao County, Henan Province, is located in the middle of the Future Avenue of Industrial agglomeration area, is a trading and manufacturing combo.Established in 1980, our company covers an area of more than 66000 square meters and currently employs 320 people, including 30 professional and technical personnel, 15 senior technicians and 6 senior engineers. We have a large-scale cutting machine, bending machine, CNC cutting machine, copying cutting machine, plate rolling machine, square tube sewing machine, moving beam gantry milling machine, shot blasting machine and numerical control lathe and other equipments. Our company has launched 3T-25T truck cranes, truck mounted cranes and marine crane to fill the domestic blank market, and exported to more than 20 countries and regions such as South Africa and Angola market.We exported to more than a dozen countries and regions such as Thailand, Turkmenistan, Kazakhstan, Vietnam, Bhutan and so on. As the manufacturer, we accept OEM/ ODM orders.

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane 8

Certifications

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane 9

Optional Device

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane 10

Foreign Cases

High Performance 8 Ton Hydraulic truck mounted crane Lorry Crane 11
