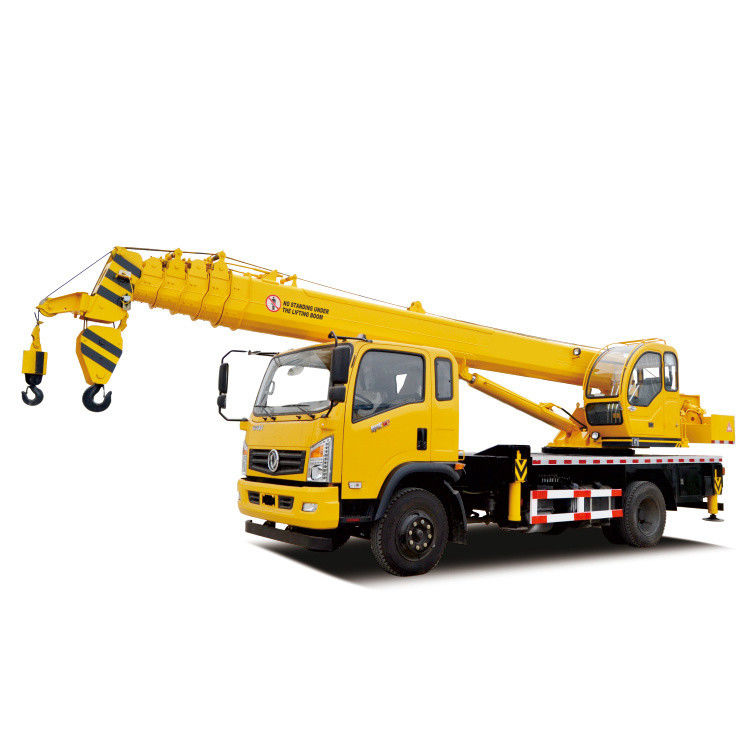

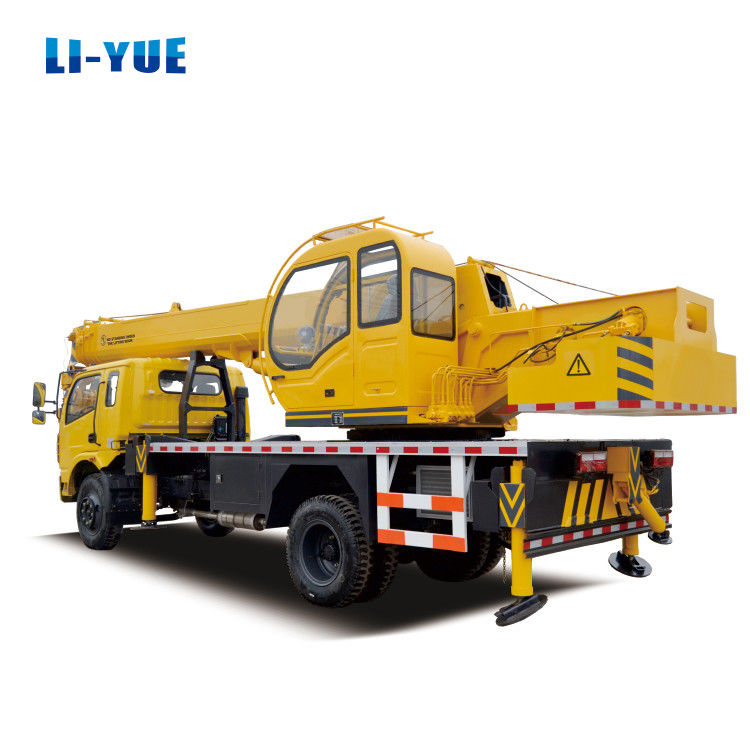

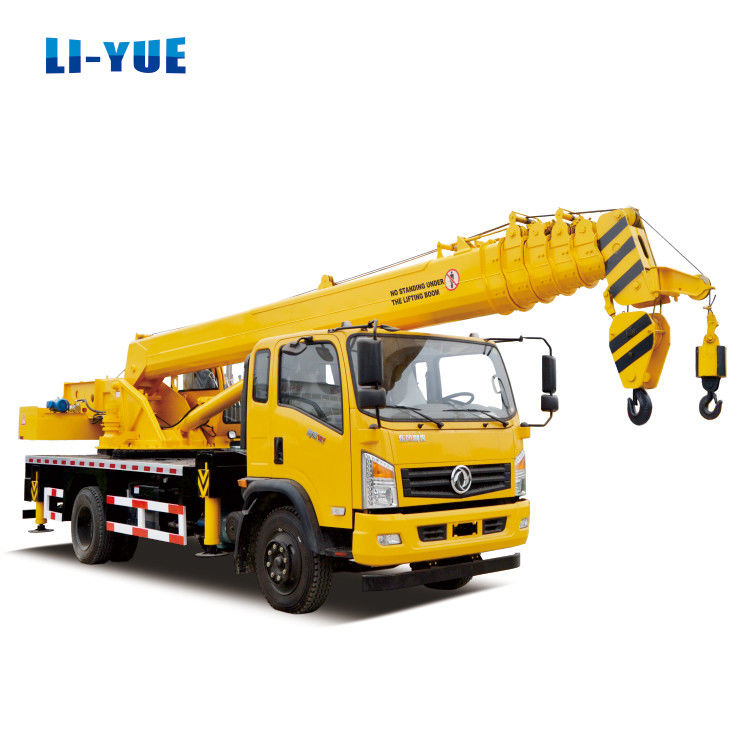

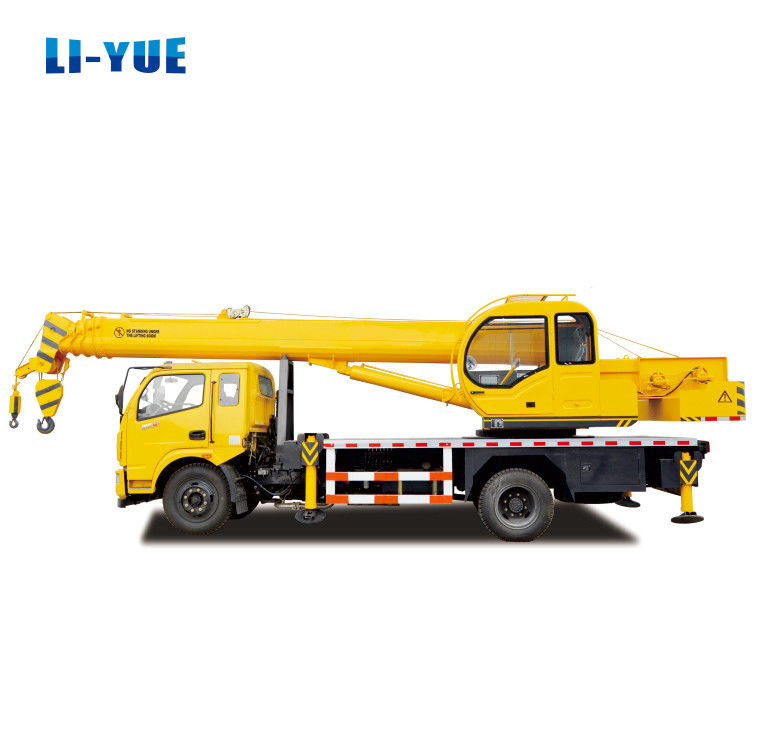

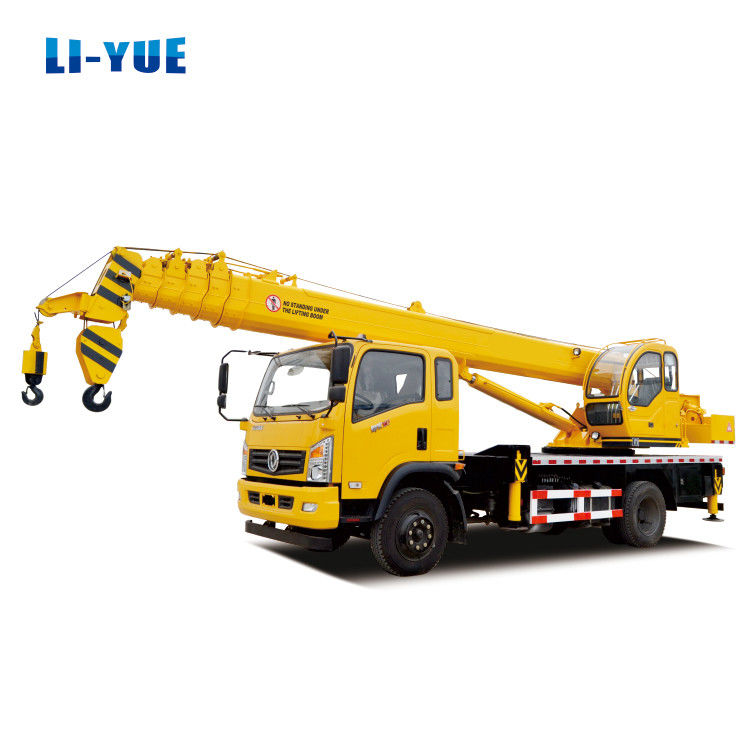

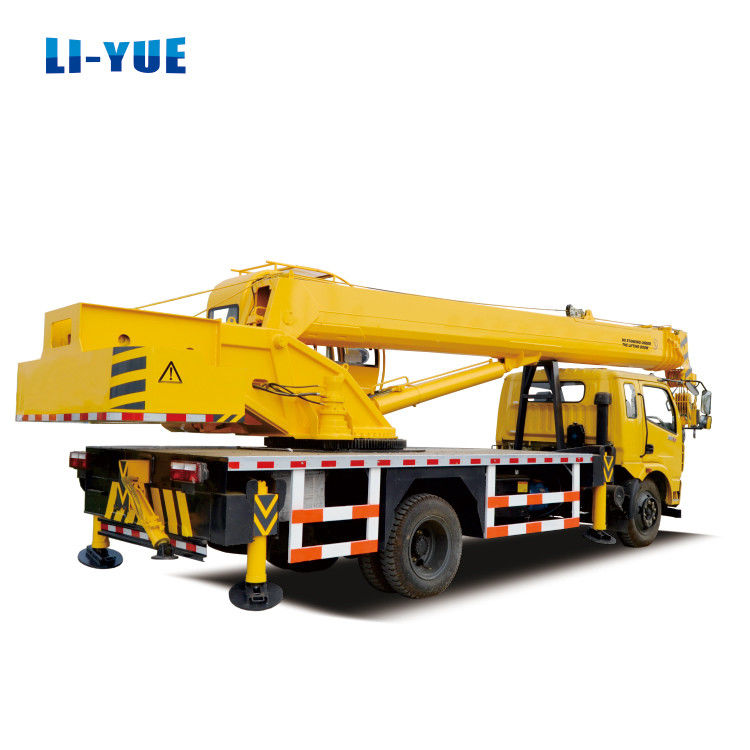

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction

Custom Hydraulic Truck Crane

360 Degree Rotation Hydraulic Truck Crane

16 Ton Hydraulic Truck Mounted Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

16 TON

Rated Lifting Moment:

480 KN.M

Max. Lifting Height:

30m

Span:

6.6m

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

3 Months

Core Components:

Pressure Vessel, Motor, Pump, Gearbox, Engine

Weight (KG):

15800 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

1-16 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Keyword:

Crane Truck Mobile Truck Crane Sizes

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Custom Hydraulic Truck Crane

360 Degree Rotation Hydraulic Truck Crane

16 Ton Hydraulic Truck Mounted Crane

Payment & Shipping Terms

Price

$48,500.00/units 1-4 units

Packaging Details

Nude packing

Supply Ability

3000 Unit/Units per Year

Stiff Boom Mobile Hydraulic Truck Crane 8 Ton Hoisting For Construction

Get Best Price

8 Ton Mini Mobile Truck Crane For Hydraulic Boom 3900/ 2240 - 4840mm Span

Get Best Price

6 Ton Construction Mobile Truck Crane 360 Degree Rotation With Hydraulic Parts

Get Best Price

Construction Hydraulic Pump Truck Crane 12 Ton With 4800 / 2290 - 6290mm Span

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

Construction Best Service 16 Ton Hydraulic Mobile Truck Crane With Changjiang Pump

Product Description

Project		Unit	Value
Crane Dimension	Model	-	QY 16-5-34
	Dimensions (LWH)	mm	1126023303260
	Outrigger Longitudinal/ Horizontal Span	mm	4800/ 2290-6290
	Outriggers Quantity	piece	5
	Basic Boom Lifting Length	m	9.1-30.28
	Main Boom Elevation	º	3-80
Working Parameter	Boom Quantity	Section	5
	Hydraulic Tank Capacity	L	200
	Max. Total Lifting Capacity	KG	16000
	The Basic Boom Lifting Torque (Max.)	KN.m	480
	Max. Lifting Height	m	34
	Working Radius	m	3--22
	Max. Slewing Speed	r/ min	≤3
Dongfeng Chassis Parameter	Total Mass	kg	15800
	Front And Rear Axle Load	kg	4800/ 11000
	Drive Type	-	4*2 RHD/ LHD
	Emission Standard	-	Euro 3/ Euro 5
	Tyre Size	-	7.50-16LT
	Front/ Rear Track	mm	1640/ 1650
	Engine Power	HP	130
	Wheel Base	mm	4300
Travelling Parameter	Max. Travel Speed	Km/ h	75
	Max. Gradeability	%	17
	Min. Turning Diameter	m	18
	Approach Angle/ Departure Angle	º	21/ 16
	Fuel Consumption of 100km	L	28
	Min. Ground Clearance	mm	260

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction 4

Prodution Progress

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction 5

Packing & Shipping

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction 6

Client Visit

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction 7

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction 8

Certifications

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction 9

Optional Device

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction 10

Foreign Cases

Custom Mobile Hydraulic Truck Crane 16 Ton 360 Degree Rotation Angle For Construction 11
