16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane

16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane

Telescopic Boom Mobile Hydraulic Truck Crane

16 Tons Mobile Hydraulic Truck Crane

Construction Lifting Mobile Hydraulic Truck Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Contact Us
Request A Quote

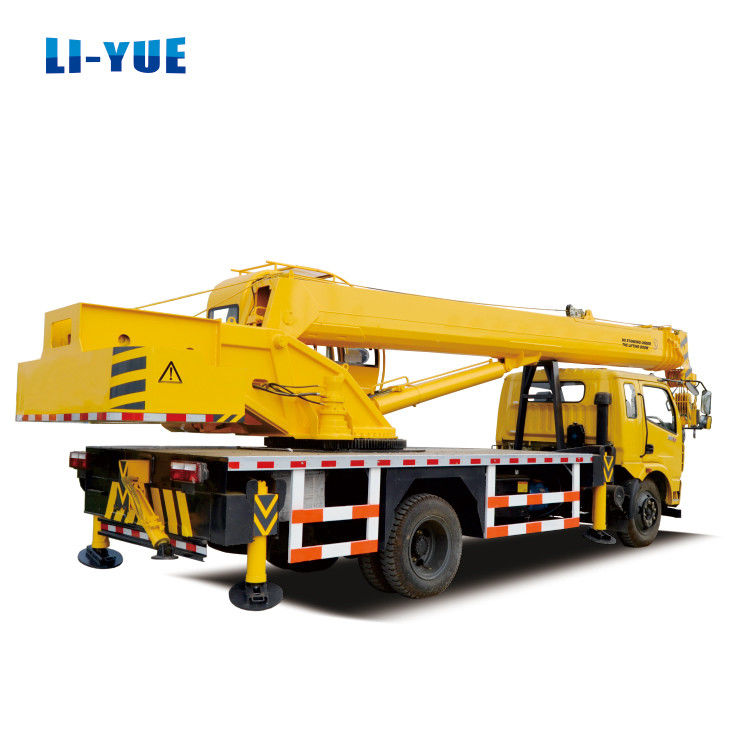

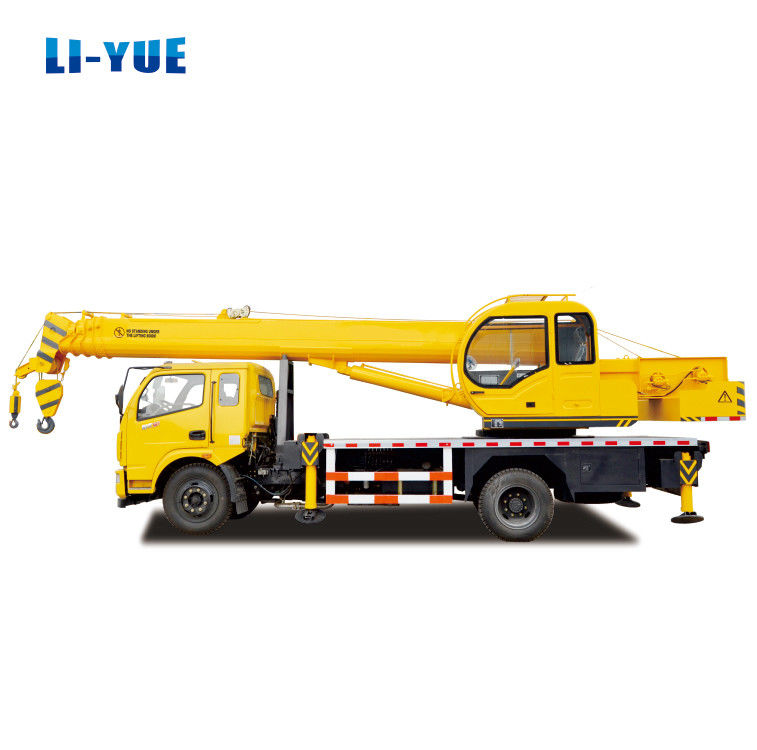

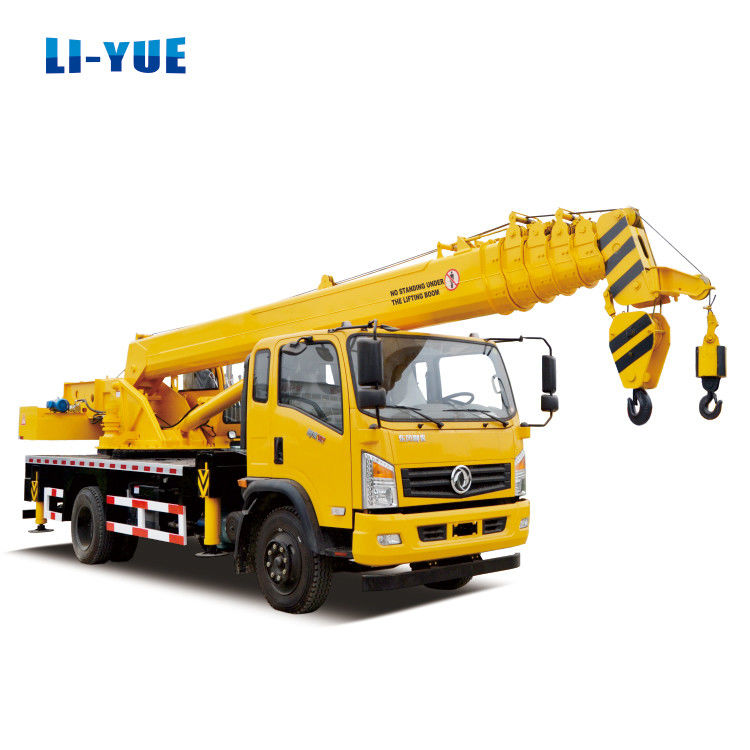

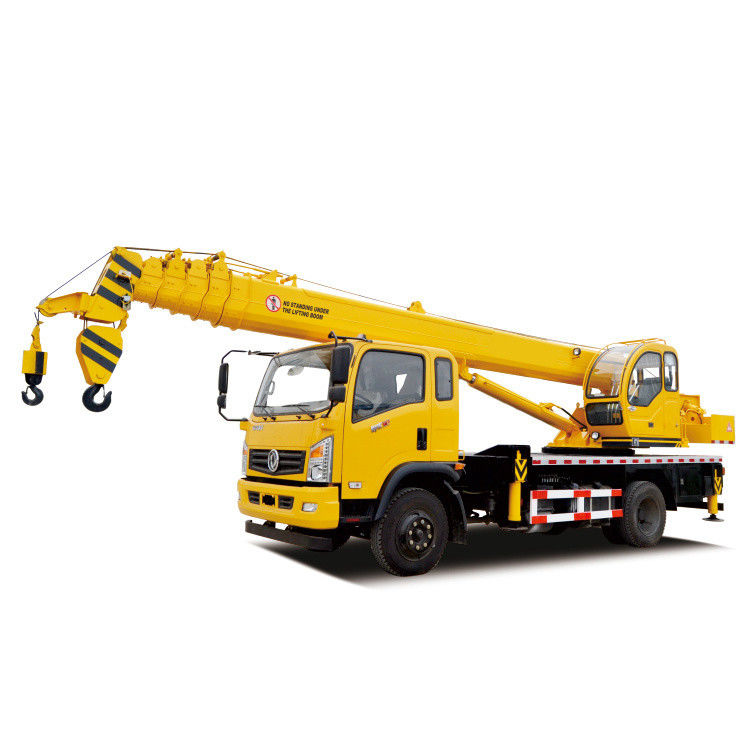

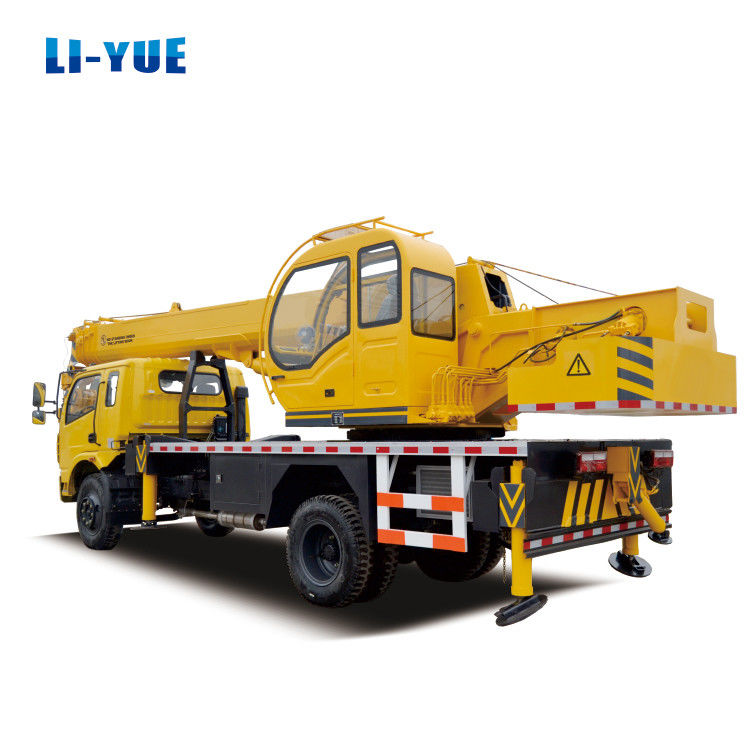

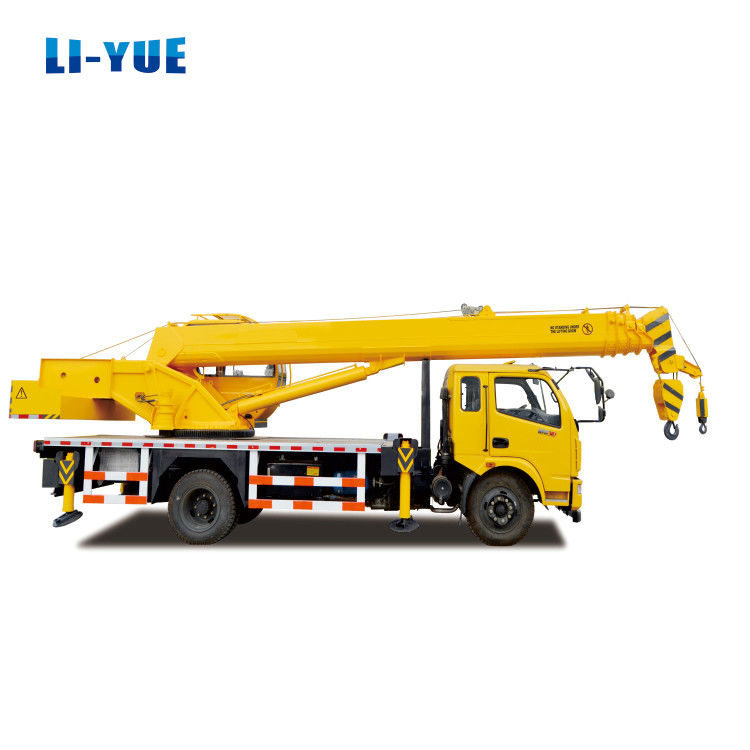

16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane
Product Details
Feature:
TRUCK CRANE
Showroom Location:
Indonesia
Condition:
New
Application:
Construction
Rated Loading Capacity:
16 TON
Rated Lifting Moment:
480 KN.M
Max. Lifting Height:
30m
Span:
6.6m
Warranty:
1 Year
Hydraulic Cylinder Brand:
MOOG
Hydraulic Pump Brand:
Changjiang
Hydraulic Valve Brand:
Liyuan
Engine Brand:
YUNNEI
UNIQUE SELLING POINT:
High Operating Efficiency
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
3 Months
Core Components:
Pressure Vessel, Motor, Pump, Gearbox, Engine
Weight (KG):
15800 Kg
Product Name:
Truck Mounted Crane
Crane Type:
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic Parts:
Famous Brand Hydraulic Parts
Capacity:
1-16 Ton Truck Crane
Boom Type:
Hydraulic Straight Arm
Color:
Customer Requirements
Usage:
Construction Lifting
Rotation Angle:
360 Degree
Keyword:
Crane Truck Mobile Truck Crane Sizes
High Quality:
Mobile Crane Lifting Capacity
Highlight:

Telescopic Boom Mobile Hydraulic Truck Crane

,

16 Tons Mobile Hydraulic Truck Crane

,

Construction Lifting Mobile Hydraulic Truck Crane

Payment & Shipping Terms
Price
$48,500.00/units 1-4 units
Packaging Details
Nude packing
Supply Ability
3000 Unit/Units per Year
RELATED PRODUCTS
Good price China's Top Brand 12 Ton Telescopic Boom Cargo Mobile Truck Crane for Sale online

China's Top Brand 12 Ton Telescopic Boom Cargo Mobile Truck Crane for Sale

Get Best Price
Good price Dongfeng New 12 Ton Truck Crane China Construction Mobile Crane Price for Sale online

Dongfeng New 12 Ton Truck Crane China Construction Mobile Crane Price for Sale

Get Best Price
Good price Construction Engineering Crane Telescopic Boom Crane Hydraulic 12 Tons Mobile Crane online

Construction Engineering Crane Telescopic Boom Crane Hydraulic 12 Tons Mobile Crane

Get Best Price
Good price Lifting Crane Equipment 12 Tons NEW High Lift Mobile Crane online

Lifting Crane Equipment 12 Tons NEW High Lift Mobile Crane

Get Best Price
Contact Us
+86 153 3382 6131
info@liyuemachinery.com
86-153-3382-6131
Contact Now
Product Description

OEM 16t Hydraumatic Single Arm Truck Crane

Product Description
16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 0

Project

Unit

Value

Crane Dimension

Model

-

QY 16-5-34

Dimensions (L*W*H)

mm

11260*2330*3260

Outrigger Longitudinal/ Horizontal Span

mm

4800/ 2290-6290

Outriggers Quantity

piece

5

Basic Boom Lifting Length

m

9.1-30.28

Main Boom Elevation

º

3-80

Working Parameter

Boom Quantity

Section

5

Hydraulic Tank Capacity

L

200

Max. Total Lifting Capacity

KG

16000

The Basic Boom Lifting Torque (Max.)

KN.m

480

Max. Lifting Height

m

34

Working Radius

m

3--22

Max. Slewing Speed

r/ min

≤3

Dongfeng Chassis Parameter

Total Mass

kg

15800

Front And Rear Axle Load

kg

4800/ 11000

Drive Type

-

4*2 RHD/ LHD

Emission Standard

-

Euro 3/ Euro 5

Tyre Size

-

7.50-16LT

Front/ Rear Track

mm

1640/ 1650

 Engine Power

HP

130

Wheel Base

mm

4300

Travelling Parameter

Max. Travel Speed

Km/ h

75

Max. Gradeability

%

17

Min. Turning Diameter

m

18

Approach Angle/ Departure Angle

º

21/ 16

Fuel Consumption of 100km

L

28

Min. Ground Clearance

mm

260
16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 1
16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 2
16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 3
Product Process

                              Famous Brand Hydraulic Parts for our Truck Crane



16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 4



                                                            Prodution Progress



16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 5

Packing & Shipping

16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 6

Client Visit

16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 7







16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 8



Certifications

16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 9



Optional Device

16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 10

Foreign Cases

16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 11

Related Products

16 Tons Mobile Hydraulic Truck Crane for Construction Lifting Telescopic Boom Crane 12
