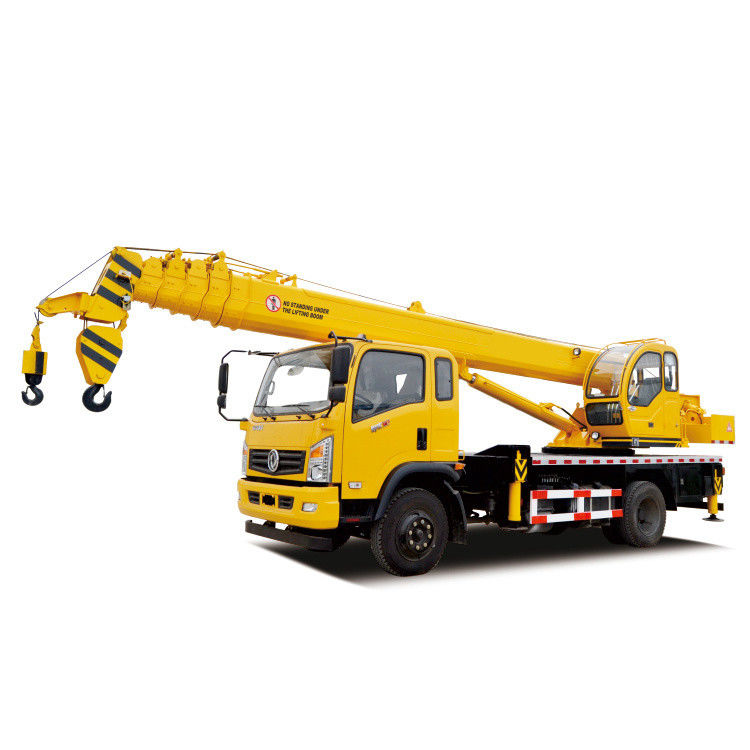

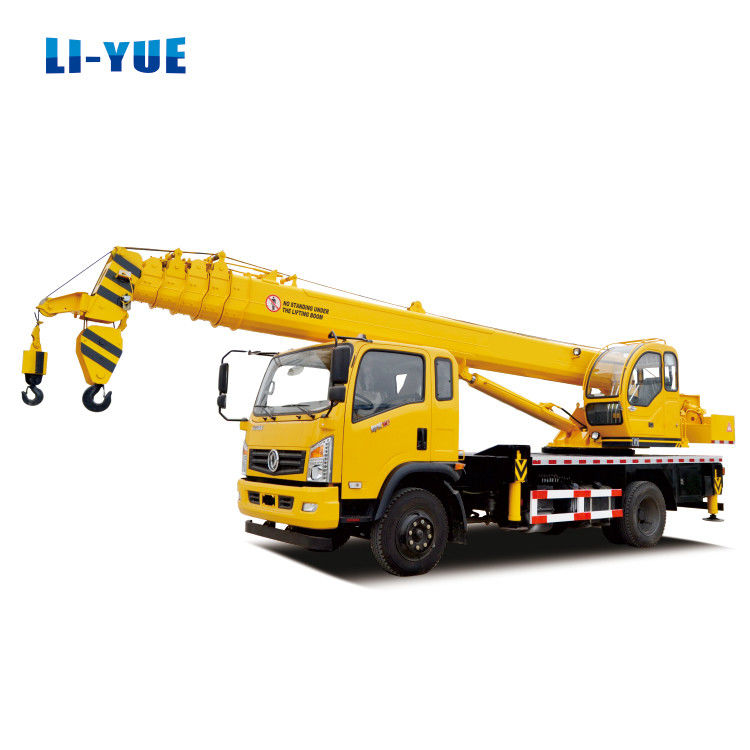

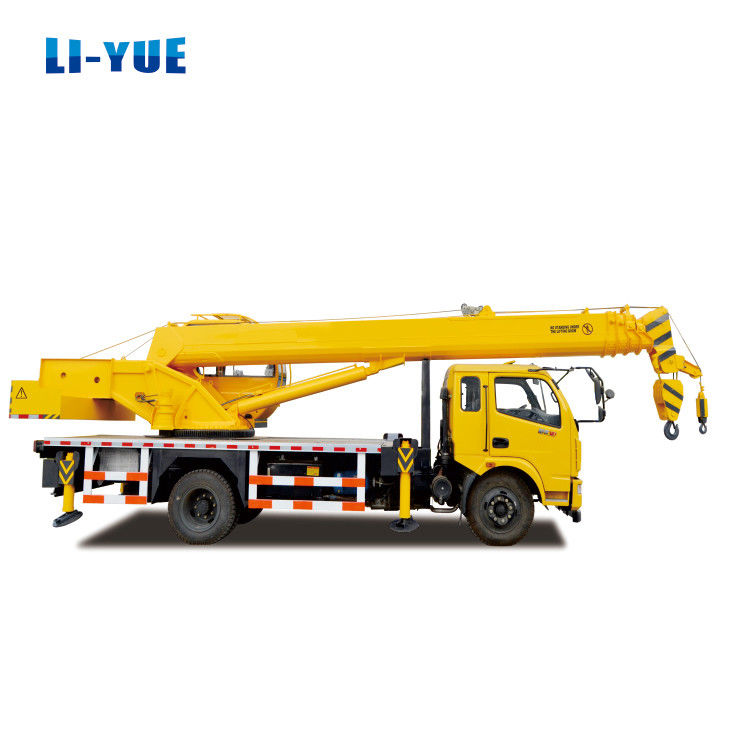

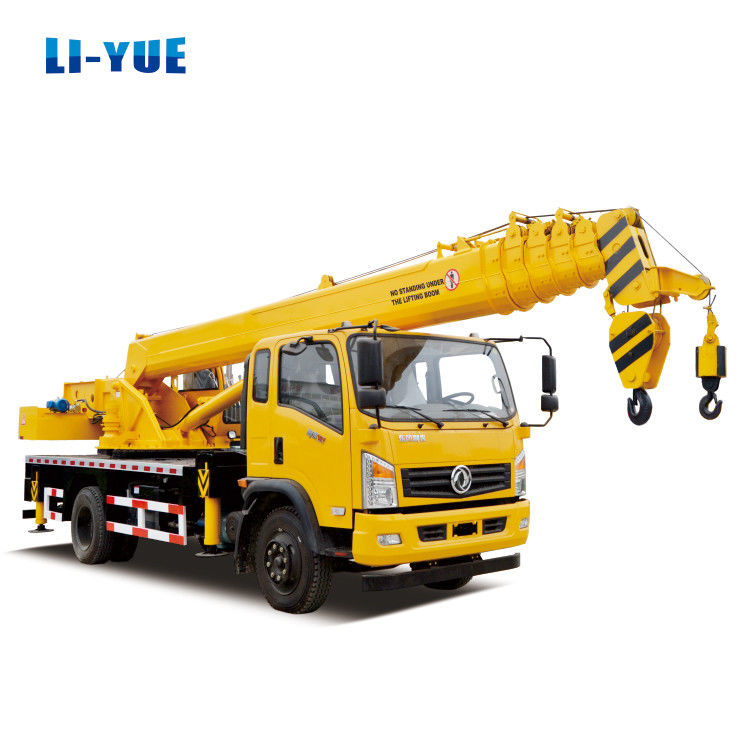

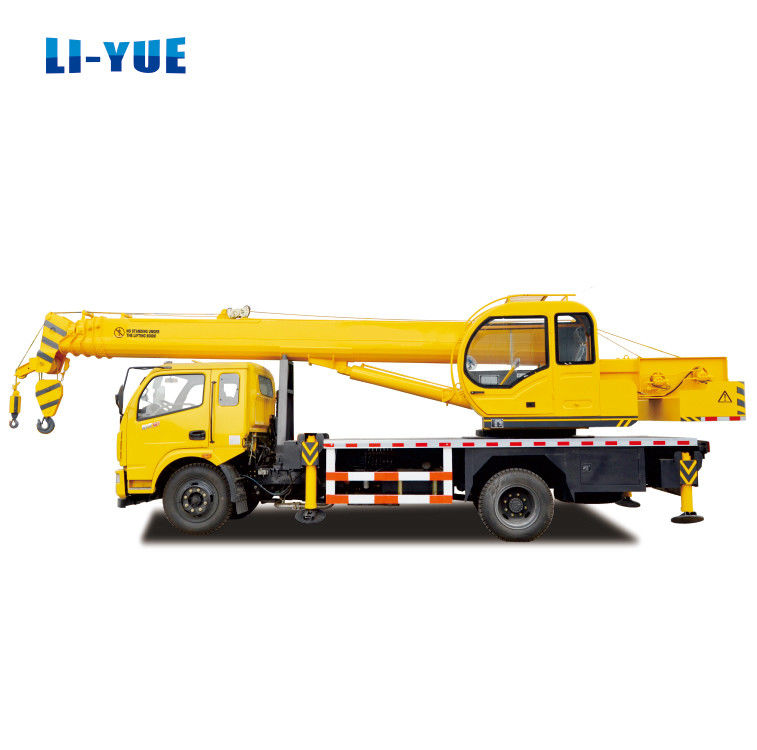

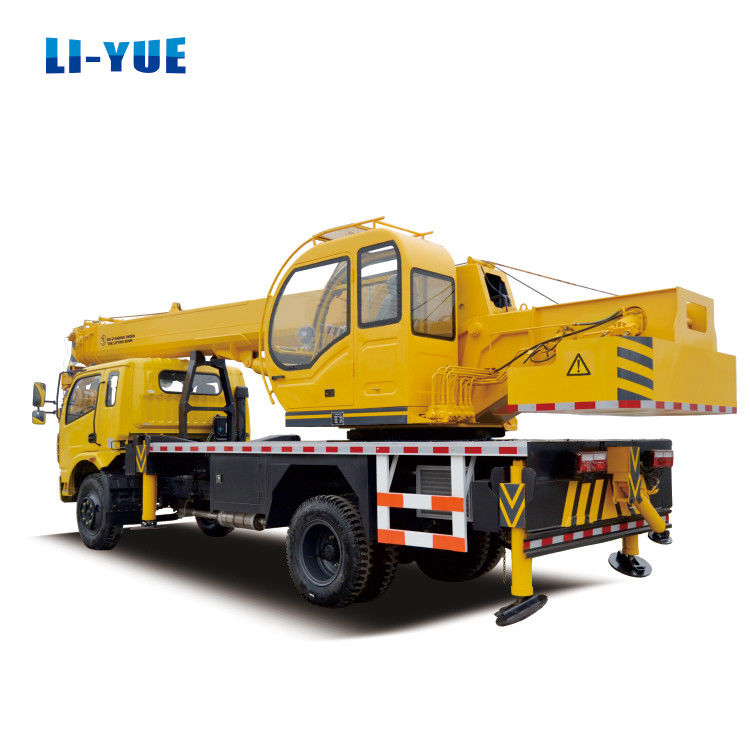

16 Ton Hydraulic Boom Truck Crane QY16 Construction Lifting Machinery With 34 Meters Reach

16 Ton Hydraulic Boom Truck Crane

Construction Lifting Hydraulic Boom Truck Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

16 Ton Hydraulic Boom Truck Crane QY16 Construction Lifting Machinery With 34 Meters Reach

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Uzbekistan

Condition:

New

Application:

Construction

Rated Loading Capacity:

16000kg

Rated Lifting Moment:

480 KN.m

Max. Lifting Height:

34m

Span:

4800/ 2290-6290mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

Liyuan

Hydraulic Pump Brand:

Liyuan

Hydraulic Valve Brand:

Liyuan

Engine Brand:

WEICHAI

UNIQUE SELLING POINT:

High Load Moment

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing

Weight (KG):

15800 Kg

Product Name:

High Quality Telescopic Boom 16Ton Crane Machine

Hydraulic Parts:

Telescopic Boom Mobile Crane Made

Brand:

OEM Service

Origin:

100% China

Capacity:

16 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Chassis Brand:

DongFeng.FAW.Foton.Sino.JAC.IVECO.Shacman

Color:

Customer Requirements

Emission Standard:

Euro 1/2/3/4/5

Delivery Time:

Within 35 Days

Highlight:

16 Ton Hydraulic Boom Truck Crane

Construction Lifting Hydraulic Boom Truck Crane

Payment & Shipping Terms

Price

$47,000.00/units 1-4 units

Packaging Details

High Quality Telescopic Boom 16Ton Crane Machine:Nude package.

Supply Ability

2000 Unit/Units per Year High Quality Telescopic Boom 12Ton Crane Machine

China's Top Brand 12 Ton Telescopic Boom Cargo Mobile Truck Crane for Sale

Get Best Price

Dongfeng New 12 Ton Truck Crane China Construction Mobile Crane Price for Sale

Get Best Price

Construction Engineering Crane Telescopic Boom Crane Hydraulic 12 Tons Mobile Crane

Get Best Price

Lifting Crane Equipment 12 Tons NEW High Lift Mobile Crane

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

Project		Unit	Value
Crane Dimension	Model	-	QY 16-5-34
	Dimensions (LWH)	mm	1126023303260
	Outrigger Longitudinal/ Horizontal Span	mm	4800/ 2290-6290
	Outriggers Quantity	piece	5
	Basic Boom Lifting Length	m	9.1-30.28
	Main Boom Elevation	º	3-80
Working Parameter	Boom Quantity	Section	5
	Hydraulic Tank Capacity	L	200
	Max. Total Lifting Capacity	KG	16000
	The Basic Boom Lifting Torque (Max.)	KN.m	480
	Max. Lifting Height	m	34
	Working Radius	m	3--22
	Max. Slewing Speed	r/ min	≤3
Dongfeng Chassis Parameter	Total Mass	kg	15800
	Front And Rear Axle Load	kg	4800/ 11000
	Drive Type	-	4x2 Left Hand Drive
	Emission Standard	-	Euro 3
	Tyre Size	-	8.25-16
	Front/ Rear Track	mm	1640/ 1650
	Engine Power	HP	160
	Wheel Base	mm	4300
Travelling Parameter	Max. Travel Speed	Km/ h	75
	Max. Gradeability	%	17
	Min. Turning Diameter	m	18
	Approach Angle/ Departure Angle	º	21/ 16
	Fuel Consumption of 100km	L	28
	Min. Ground Clearance	mm	260
