8 Ton Stiff Boom Lorry Crane With MOOG Hydraulic Cylinder And Changjiang Pump

Stiff Boom Lorry Crane

8 Ton Lorry Crane

Hydraulic Cylinder Lorry Truck Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

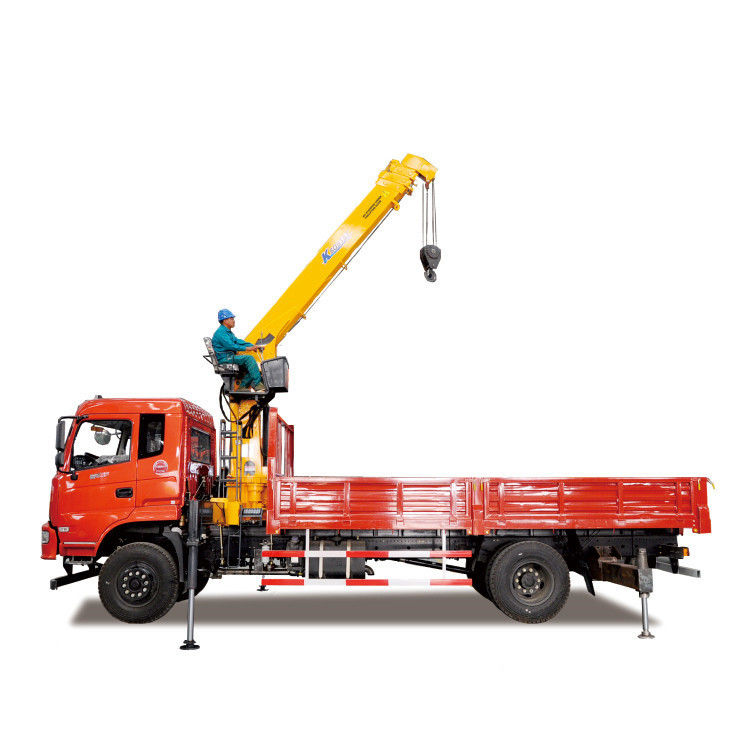

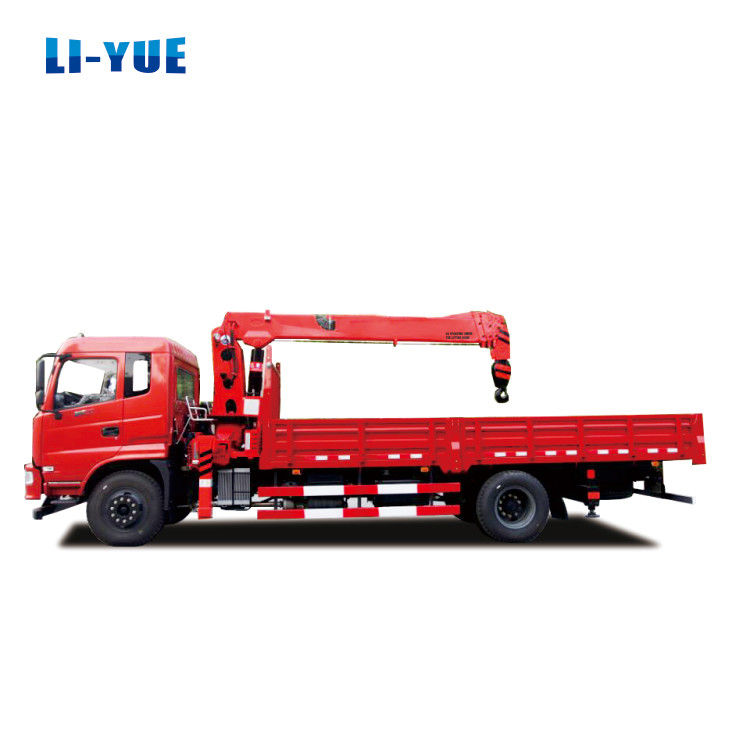

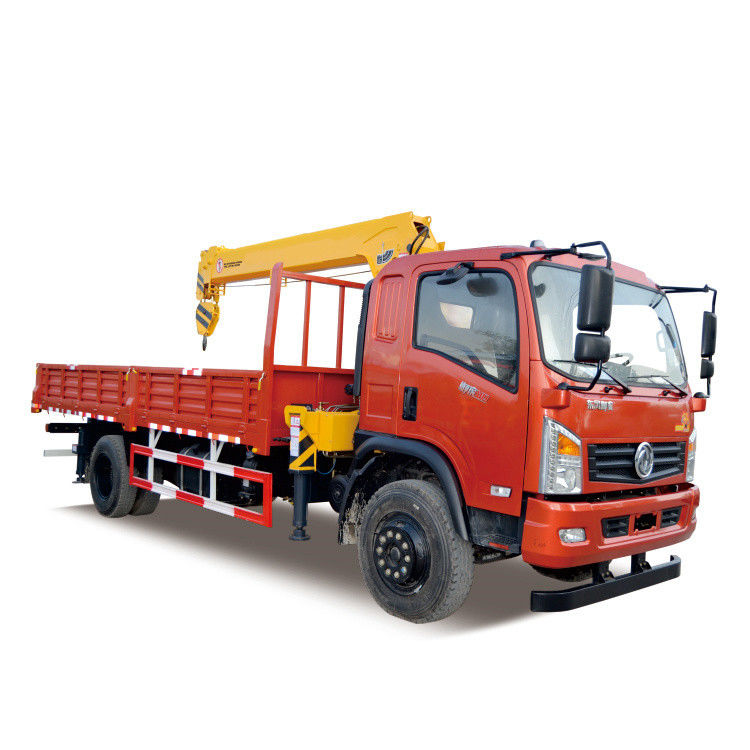

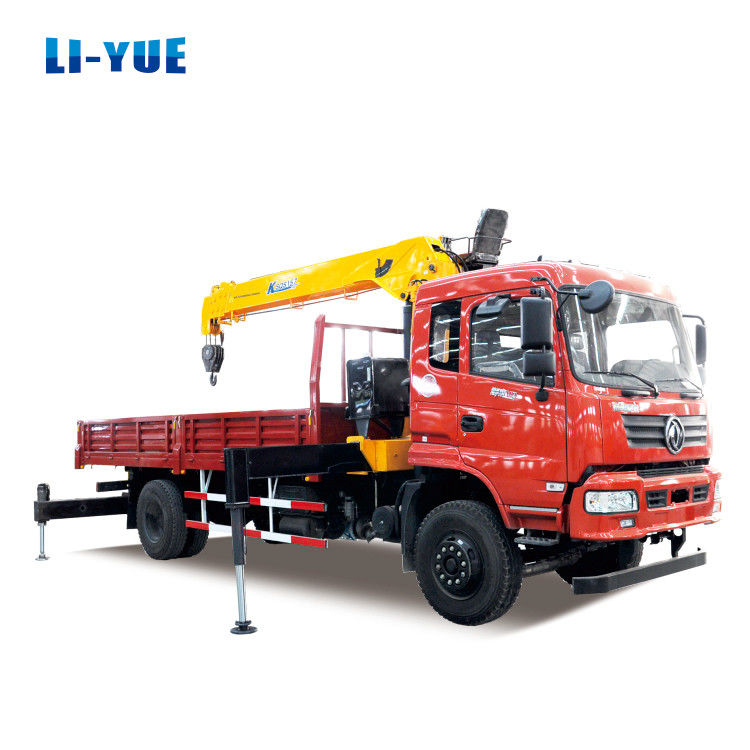

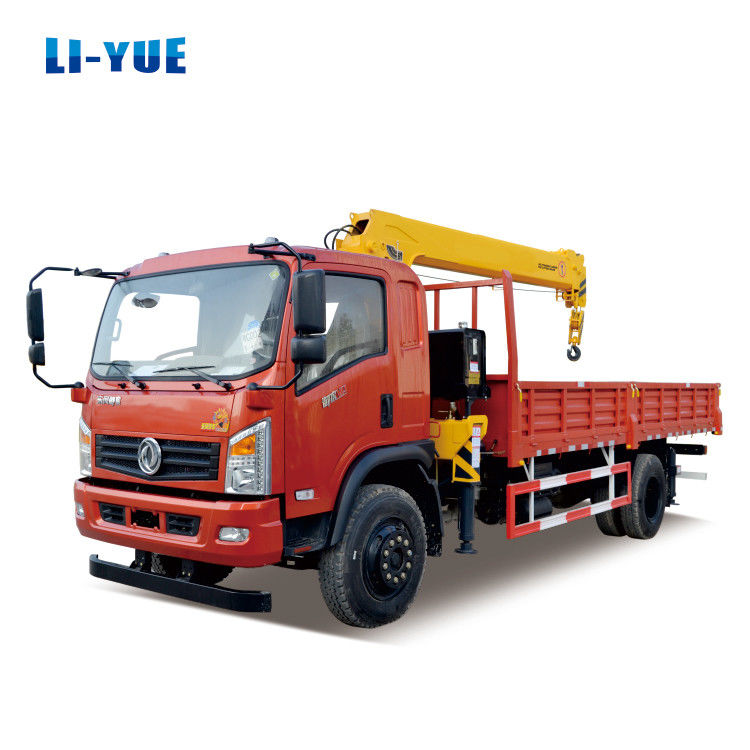

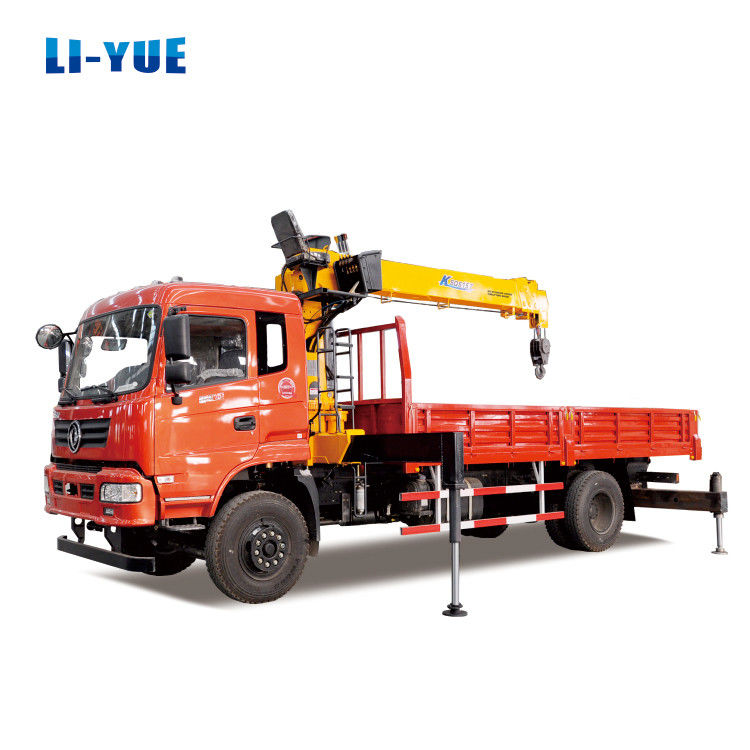

8 Ton Stiff Boom Lorry Crane With MOOG Hydraulic Cylinder And Changjiang Pump

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

8 Ton

Rated Lifting Moment:

4.85-13 T.M

Max. Lifting Height:

15.2 M

Span:

2280-5580 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Pump

Weight (KG):

3315 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

8 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

1200 Mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Stiff Boom Lorry Crane

8 Ton Lorry Crane

Hydraulic Cylinder Lorry Truck Crane

Payment & Shipping Terms

Price

$14,500.00/units 1-2 units

10 Ton Dump Truck With Crane Hydraulic Telescopic Boom Crane With MOOG Cylinder

Get Best Price

Dongfeng 8 Ton Lifting Machinery Straight Boom Lorry Crane With Hydraulic Parts

Get Best Price

8 Ton Hydraulic Truck Mounted Crane Remote Control For Construction

Get Best Price

Mobile Hydraulic 8 Ton Truck Crane With 6 Wheels Rated Lifting Moment 13 T.M

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

MOOG Hydraulic Cylinder And Changjiang Pump 8 Ton Stiff Boom Lorry Crane For Long-Term

Product Description

NOTE: The price is only for crane part.

Project		Unit	Value
Crane Dimension	Crane Model	-	SQ 8T
	Max. Lifting Capacity	kg	8000
	Max. Lifting Height	m	15
	Working Radius/ Span	m	2.5-12.5
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	4
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	2280-5400
	Crane Weight	kg	3315
	Hydraulic Tank Capacity	L	140
	Max. Flow Rate of Hydraulic Oil System	L/min	50
	Hydraulic System Rated Pressure	Mpa	27
	Installation Space	mm	1200
Working Parameter	The Basic Boom Length	m	4.85-13
	Max. Lifting Torque	T.m	20
	Max. Slewing Speed	r/ min	2
