16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump

Hydraulic Mobile Lorry Crane

Hydraulic Mobile Crane 16 Ton

360 Degree Rotation Lorry Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Contact Us
Request A Quote

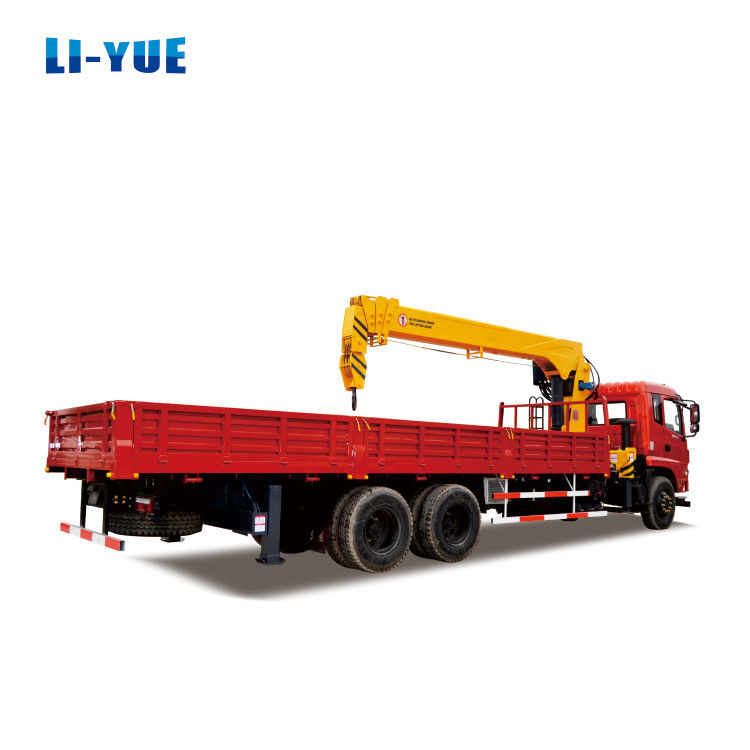

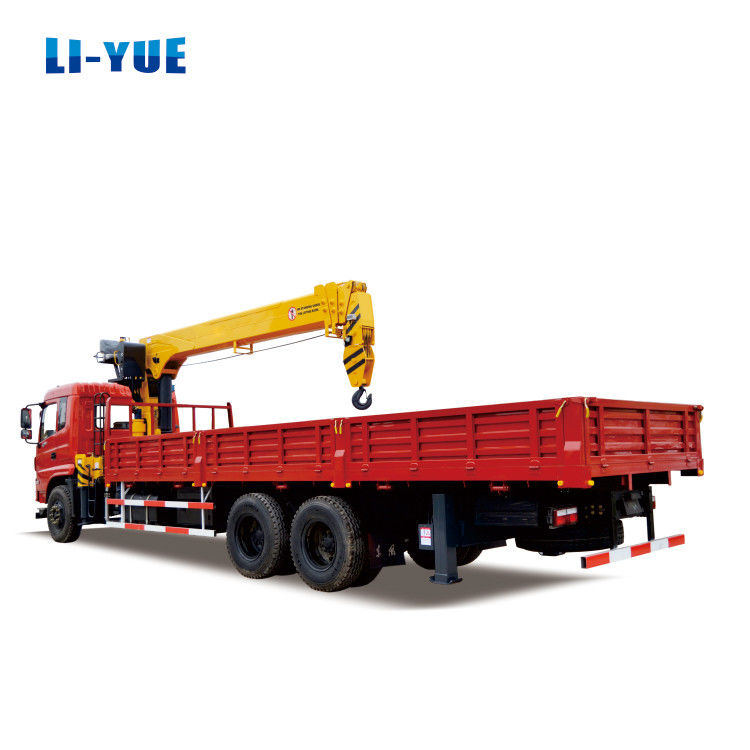

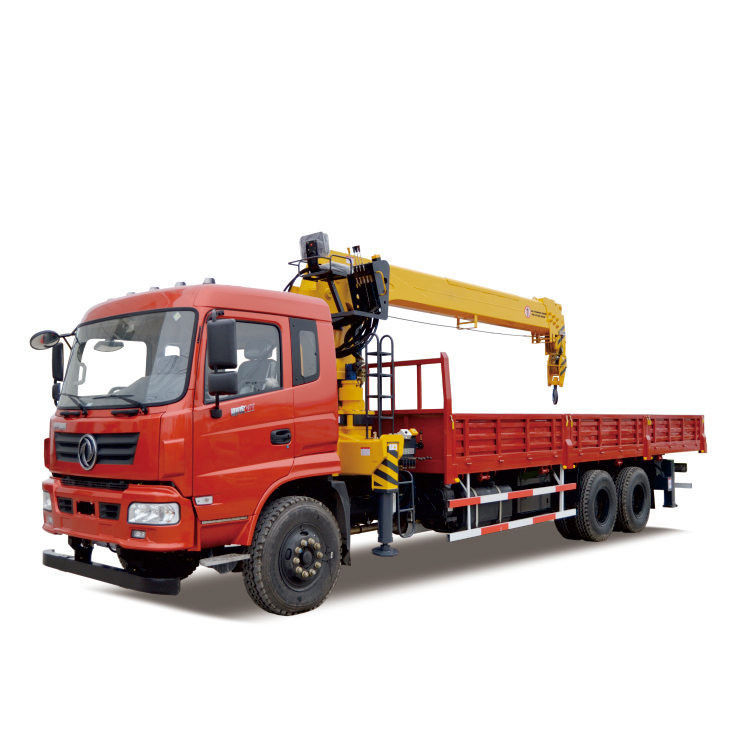

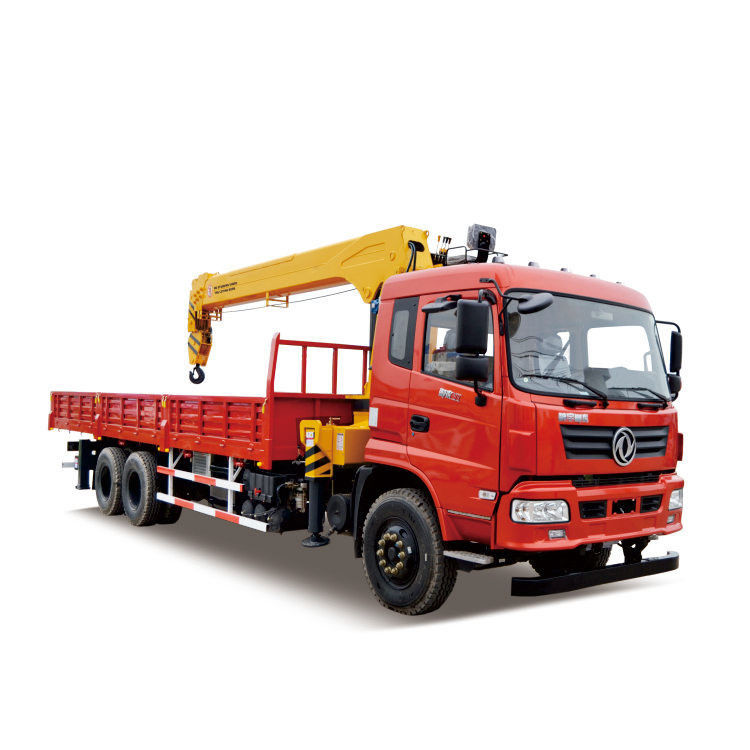

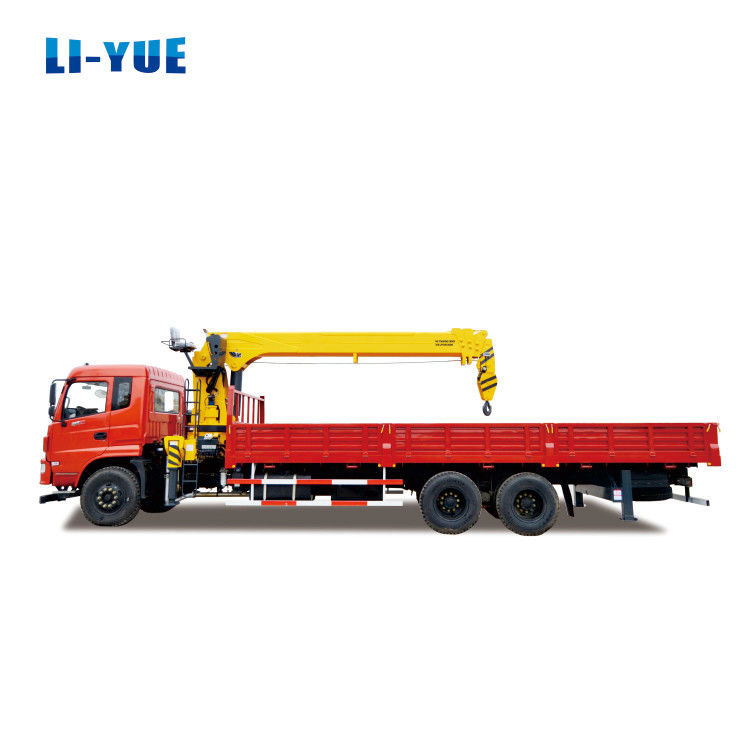

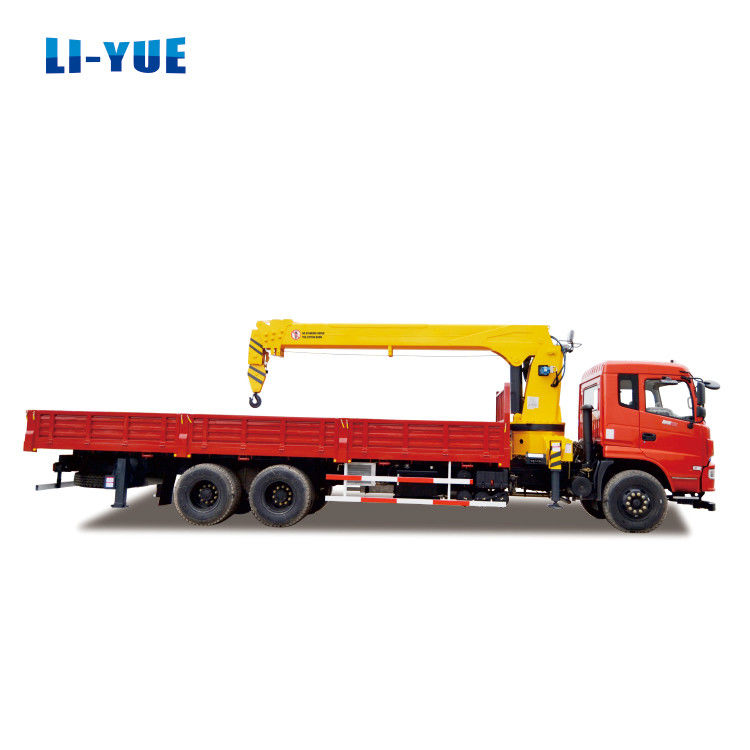

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump
Product Details
Feature:
TRUCK CRANE
Showroom Location:
Indonesia
Condition:
New
Application:
Construction
Rated Loading Capacity:
16 Ton
Rated Lifting Moment:
5.9-18 T.M
Max. Lifting Height:
18.8 M
Span:
2538-7240 Mm
Warranty:
1 Year
Hydraulic Cylinder Brand:
MOOG
Hydraulic Pump Brand:
Changjiang
Hydraulic Valve Brand:
Liyuan
Engine Brand:
YUNNEI
UNIQUE SELLING POINT:
High Operating Efficiency
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Bearing, Pump
Weight (KG):
6455 Kg
Product Name:
Truck Mounted Crane
Crane Type:
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic Parts:
Famous Brand Hydraulic Parts
Capacity:
16 Ton Truck Crane
Boom Type:
Hydraulic Straight Arm
Color:
Customer Requirements
Usage:
Construction Lifting
Rotation Angle:
360 Degree
Installation Space:
1400 Mm
High Quality:
Mobile Crane Lifting Capacity
Highlight:

Hydraulic Mobile Lorry Crane

,

Hydraulic Mobile Crane 16 Ton

,

360 Degree Rotation Lorry Crane

Payment & Shipping Terms
Price
$28,300.00/units 1-2 units
Packaging Details
Nude packing
Supply Ability
3000 Unit/Units per Year
RELATED PRODUCTS
Good price 10 Ton Dump Truck With Crane Hydraulic Telescopic Boom Crane With MOOG Cylinder online

10 Ton Dump Truck With Crane Hydraulic Telescopic Boom Crane With MOOG Cylinder

Get Best Price
Good price Dongfeng 8 Ton Lifting Machinery Straight Boom Lorry Crane With Hydraulic Parts online

Dongfeng 8 Ton Lifting Machinery Straight Boom Lorry Crane With Hydraulic Parts

Get Best Price
Good price 8 Ton Hydraulic Truck Mounted Crane Remote Control For Construction online

8 Ton Hydraulic Truck Mounted Crane Remote Control For Construction

Get Best Price
Good price Mobile Hydraulic 8 Ton Truck Crane With 6 Wheels Rated Lifting Moment 13 T.M online

Mobile Hydraulic 8 Ton Truck Crane With 6 Wheels Rated Lifting Moment 13 T.M

Get Best Price
Contact Us
+86 153 3382 6131
info@liyuemachinery.com
86-153-3382-6131
Contact Now
Product Description

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump

Product Description
NOTE: The price is only for crane part.
16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 0

Project

Unit

Value

Crane Dimension

Crane Model

-

SQ 16T

Max. Lifting Capacity

kg

16000

Max. Lifting Height

m

17/ 21

Working Radius/ Span

m

2.5-18.5

Rotation Angle

º

360

Boom Raising Angle Scope

º

0-75

Boom Sections

Piece

4/ 5

Outrigger Quantity

Piece

2

Outrigger Span (Fully Extended)

mm

2538—7240

Crane Weight

kg

6455

Hydraulic Tank Capacity

L

260

Max. Flow Rate of Hydraulic Oil System

L/min

80

Hydraulic System Rated Pressure

Mpa

28

Installation Space

mm

1400

Working Parameter

The Basic Boom Length

m

5.9-18

Max. Lifting Torque

T.m

43.2

Max. Slewing Speed

r/ min

2

Truck mounted crane, also known as lorry crane, boom crane, arrow crane, telescopic crane, etc. It can be equipped with cargo boxes of different lengths, generally 3.4m, 4.4m, 5.6m, 8.6m, etc.

Follow up lifting weight can be divided into 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14 tons and 1 ton.

The models of truck mounted cranes mainly include SQ3.2, SQ4, SQ5, SQ6.3, SQ8, SQ10, SQ12, SQ14 and SQ16. Cranes of different tonnage.

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 1
16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 2
16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 3



Product Process

                               Famous Brand Hydraulic Parts for our Truck Crane



16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 4



                                                            Prodution Progress



16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 5

Packing & Shipping

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 6

Client Visit

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 7







16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 8



Certifications

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 9



Optional Device

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 10

Foreign Cases

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 11

Related Products

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 12

customer evaluation

16 Ton Hydraulic Mobile Lorry Crane With 360 Degree Rotation And Changjiang Pump 13
