Home > products > Truck Mounted Crane >

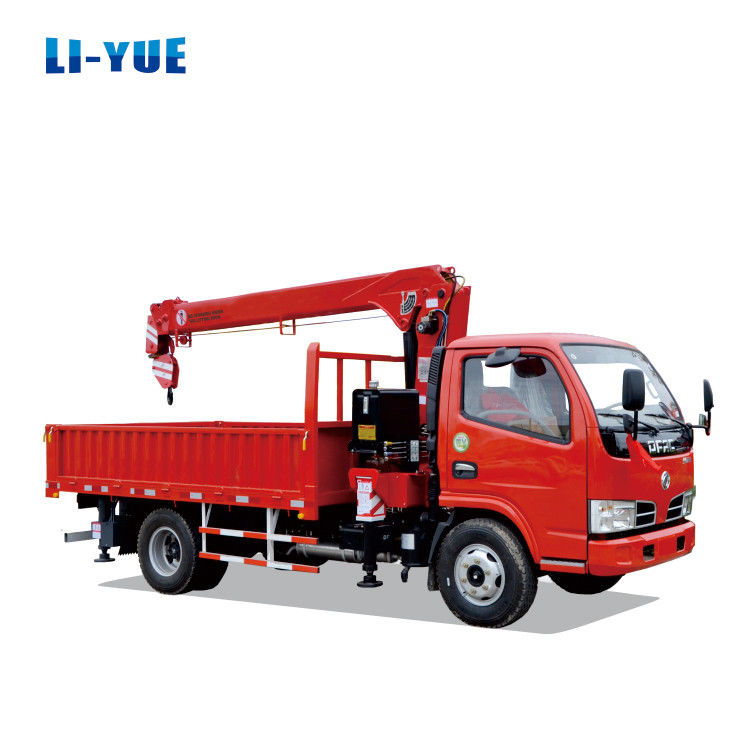

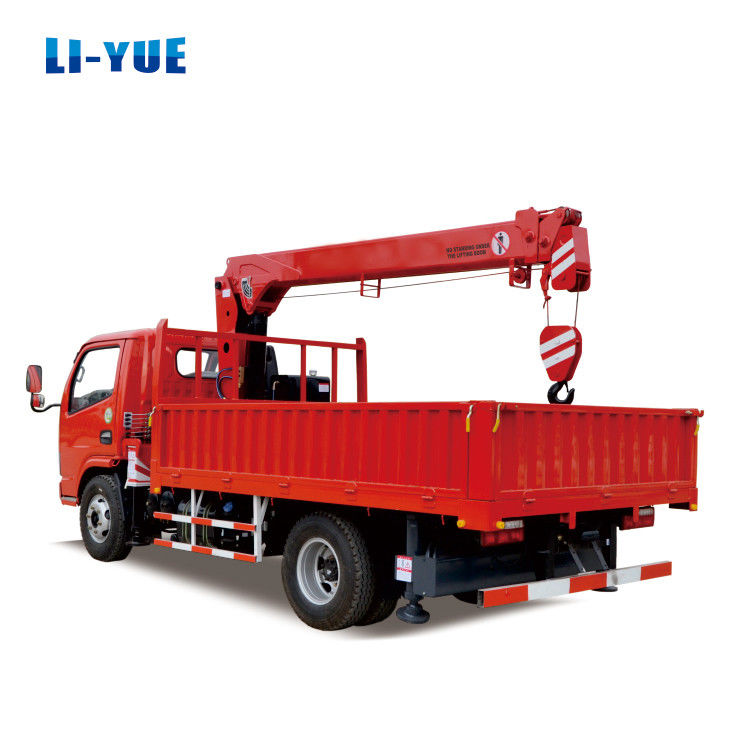

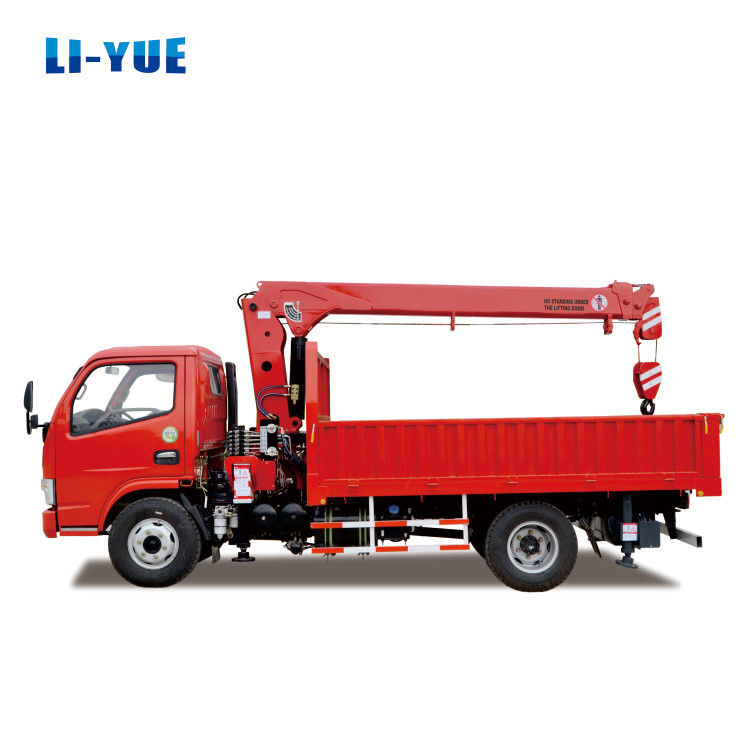

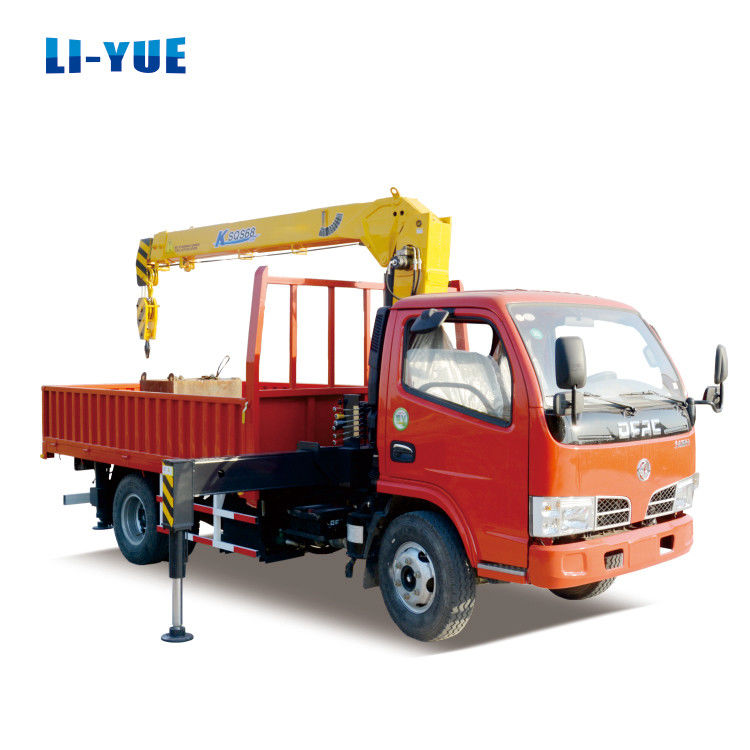

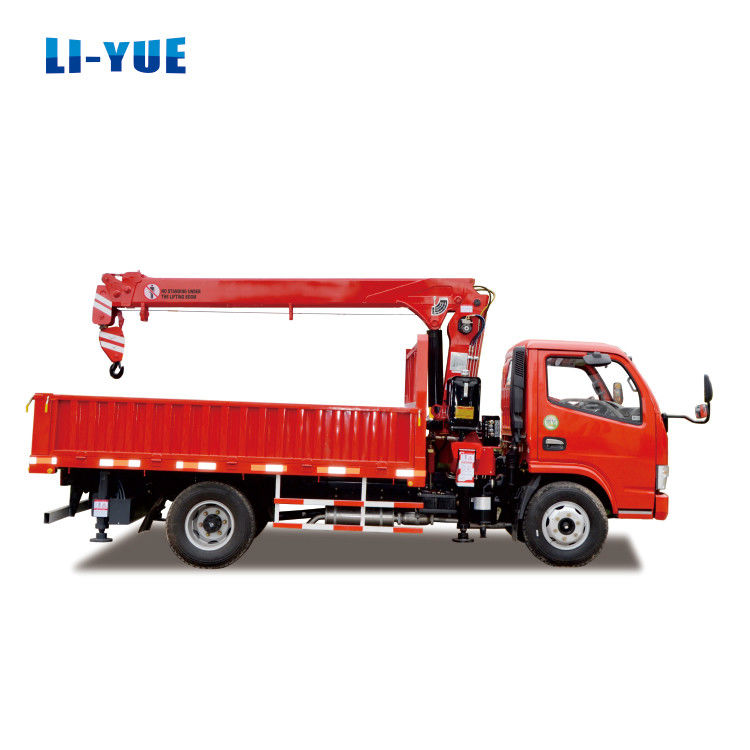

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm

Mobile Telescopic Boom Truck Mounted Crane

Hydraulic Straight Arm Truck Mounted Crane

1290 kg Truck Mounted Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

3 Ton

Rated Lifting Moment:

6.8 T.M

Max. Lifting Height:

9 M

Span:

1898-3329 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

New Product 2020

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Engine

Weight (KG):

1290 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

1-3 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

850 Mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Mobile Telescopic Boom Truck Mounted Crane

Hydraulic Straight Arm Truck Mounted Crane

1290 kg Truck Mounted Crane

Payment & Shipping Terms

Price

$7,000.00/units 1-4 units

Packaging Details

Nude packing

Supply Ability

3000 Unit/Units per Year

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price

Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price

Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price

Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

Crane Manufacturer Construction Machinery SQ3S3 3 Ton Telescopic Truck Mounted Crane

Product Description

NOTE: The price is only for crane part.

Project		Unit	Value
Crane Dimension	Crane Model	-	SQ 3.2T
	Max. Lifting Capacity	kg	3200
	Max. Lifting Height	m	9
	Working Radius/ Span	m	0.67-10
	Rotation Angle	º	360 Continious
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	3
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	1898-3329
	Crane Weight	kg	1290
	Hydraulic Tank Capacity	L	35
	Max. Flow Rate of Hydraulic Oil System	L/min	25
	Hydraulic System Rated Pressure	Mpa	21
	Installation Space	mm	850
Working Parameter	The Basic Boom Length	m	3.38-11.0
	Max. Lifting Torque	T.m	6.8
	Max. Slewing Speed	r/ min	2.5

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 4

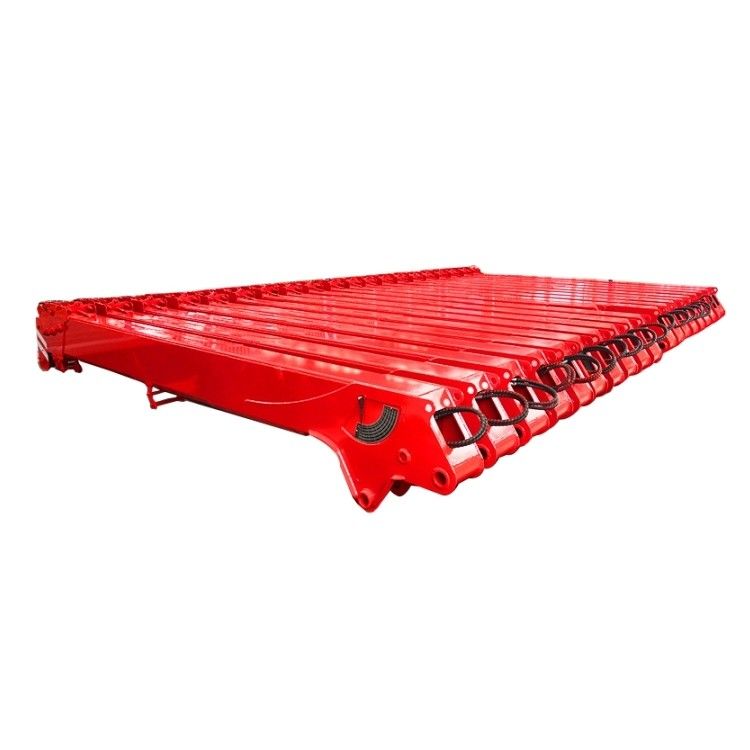

Prodution Progress

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 5

Packing & Shipping

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 6

Client Visit

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 7

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 8

Certifications

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 9

Optional Device

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 10

Foreign Cases

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 11

Clients Quality Approval

Mini Crane Mobile Telescopic Boom Straight Lifting Truck Mounted Crane 1290 kg Weight for YUNNEI Engine and Hydraulic Straight Arm 12
