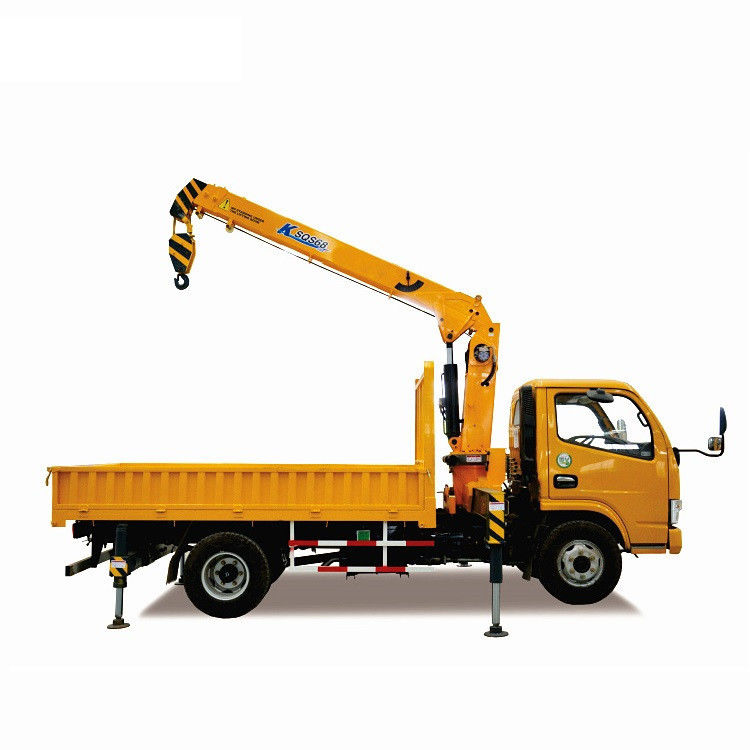

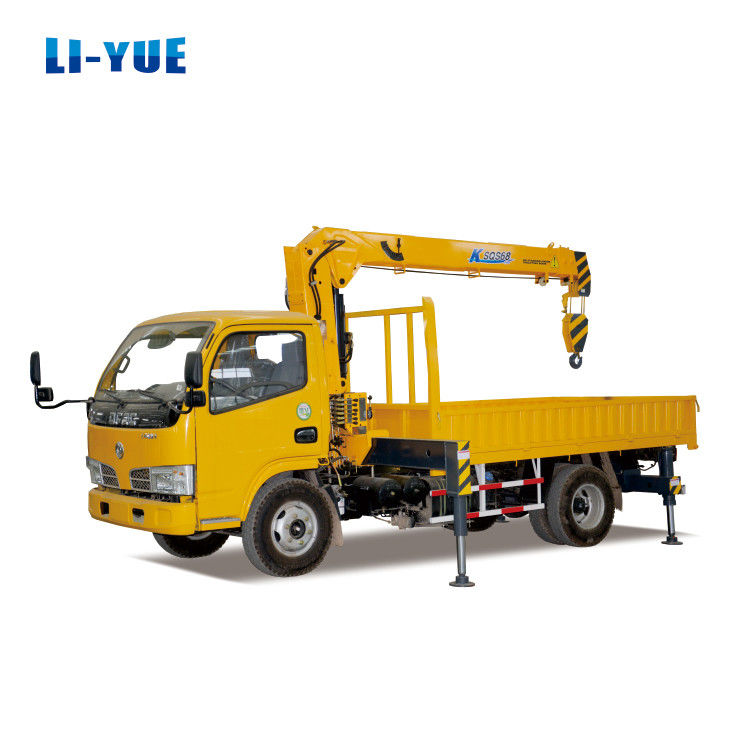

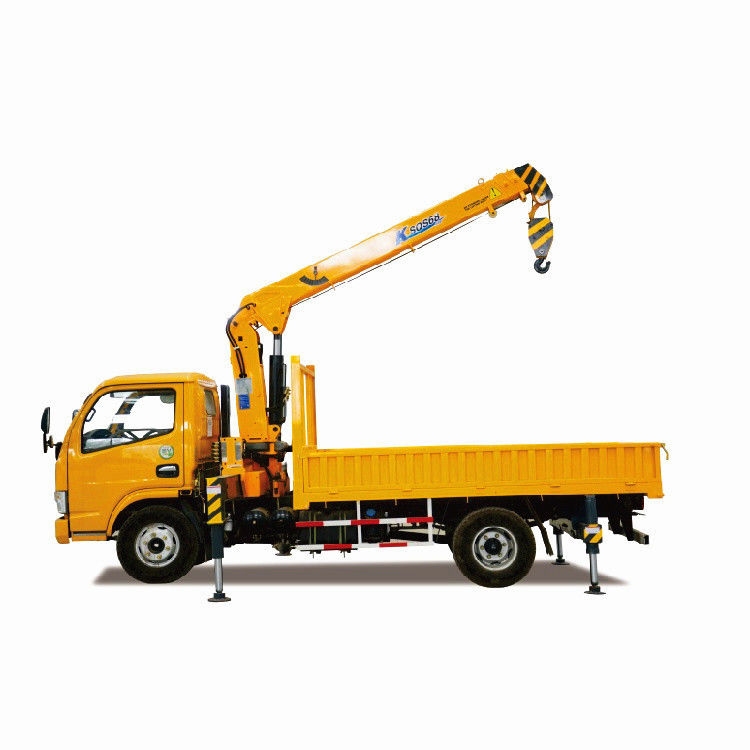

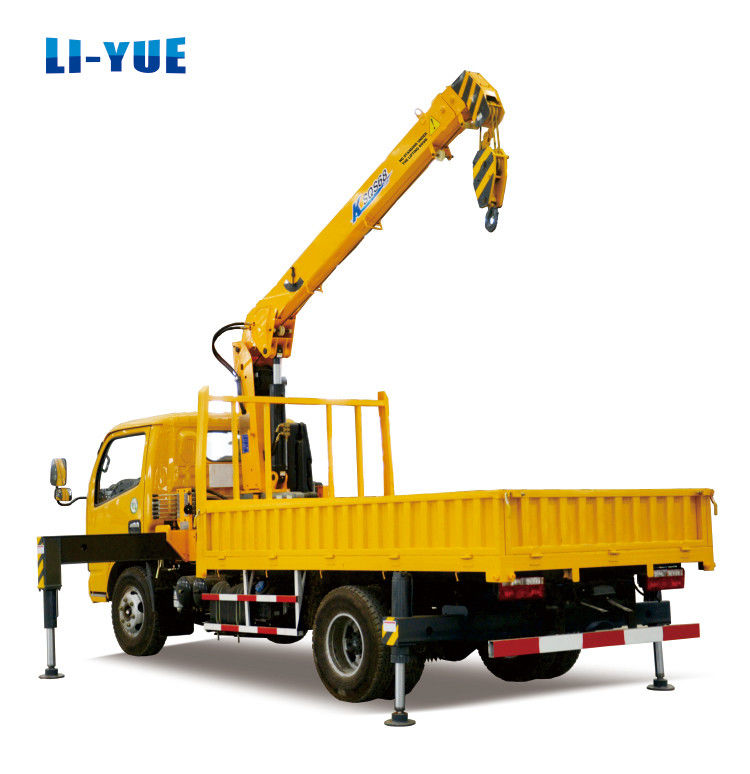

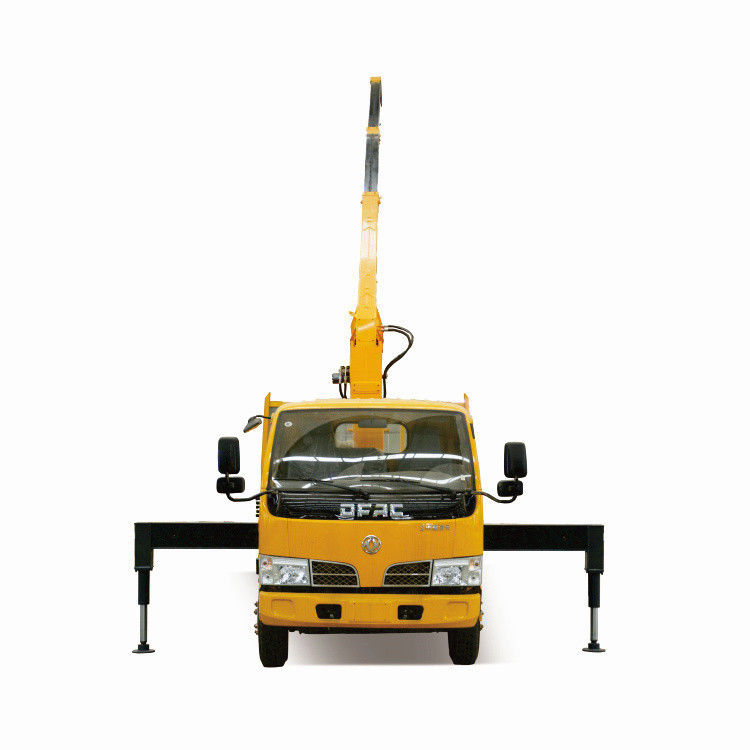

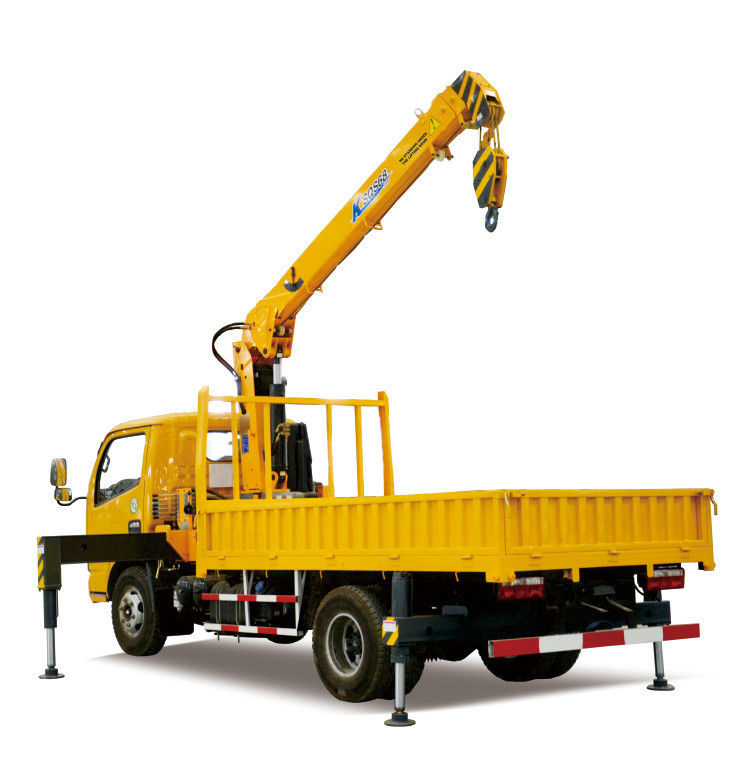

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane

Mobile Stiff Arm Truck Mounted Crane

900mm Installation Space Truck Mounted Crane

5 Tons Truck Mounted Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

5 Ton

Rated Lifting Moment:

12.5 T.M

Max. Lifting Height:

11.5 M

Span:

2280-5100 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Pump

Weight (KG):

2260 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

5 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

900 Mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Mobile Stiff Arm Truck Mounted Crane

900mm Installation Space Truck Mounted Crane

5 Tons Truck Mounted Crane

Payment & Shipping Terms

Price

$9,300.00/units 1-2 units

Packaging Details

Nude packing

Supply Ability

3000 Unit/Units per Year

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price

Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price

Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price

Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

5 Tons Dongfeng Hydraulic Telescopic Boom Truck Mounted Crane Cargo Crane

Product Description

NOTE: The price is for crane part only!

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 0

Project		Unit	Value
Crane Dimension	Crane Model	---	SQ 5T
	Max. Lifting Capacity	kg	5000
	Max. Lifting Height	m	8.7
	Working Radius/ Span	m	2.2-11
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
Chassis Truck Data and Weight	Chassis Brand	---	Dongfeng
	Overall Dimensions (LWH)	mm	900025003850
	Cargo Body Dimensions (LWH)	mm	60002300550
	Total Mass	kg	15800
	Rated Loading	kg	4225
	Front and Rear Axle Load	kg	5600/ 10200
	Engine Model	---	Cummins
	Engine Model	---	ISD185 50
	Engine Powder/ Engine Displacement	HP/ml	185/ 4500
Working Parameter	Gearbox	---	6 Forwards& 1 Reverse
	Service Brake	---	Automatically Air-Cut Brake
	Power Steering Model	---	Hydraulic sSteering with Power Assistance
	The Basic Boom Length	m	3.8-8.7
	Diameter of Wire Rope	mm	8
	Length of Wire Rope	m	55
	Speed of Sing Rope (No Load)	m/min	45
	Max. Lines of the Hook	Times	4
Travelling Parameter	Max. Travel Speed	Km/ h	90
	Max. Gradeability	%	30
	Min. Turning Diameter	m	14.5

Product Description

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 3

Prodution Progress

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 4

Packing & Shipping

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 5

Client Visit

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 6

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 7

Certifications

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 8

Optional Device

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 9

Foreign Cases

900mm Installation Space Hydraulic Crane 5 Tons Mobile Stiff Arm Truck Mounted Crane 10
