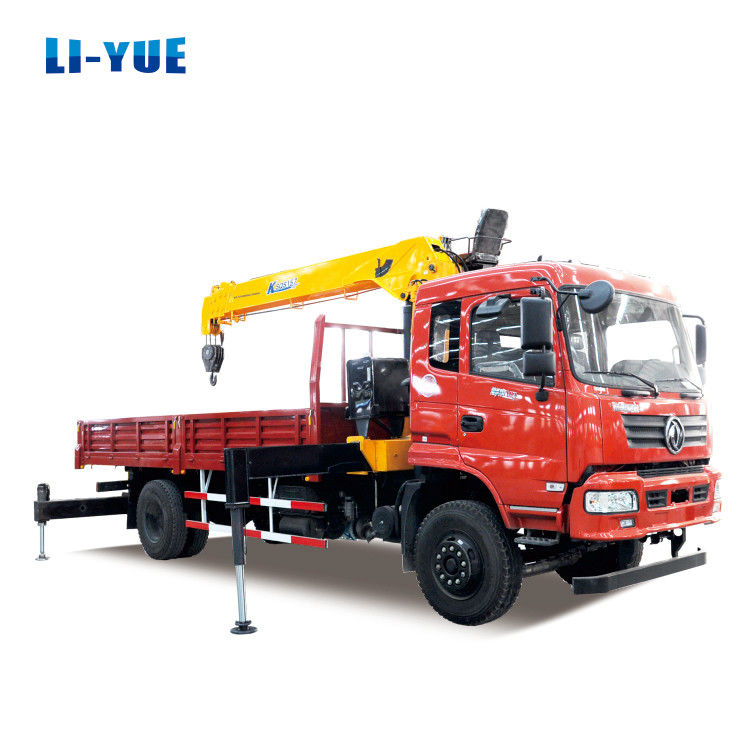

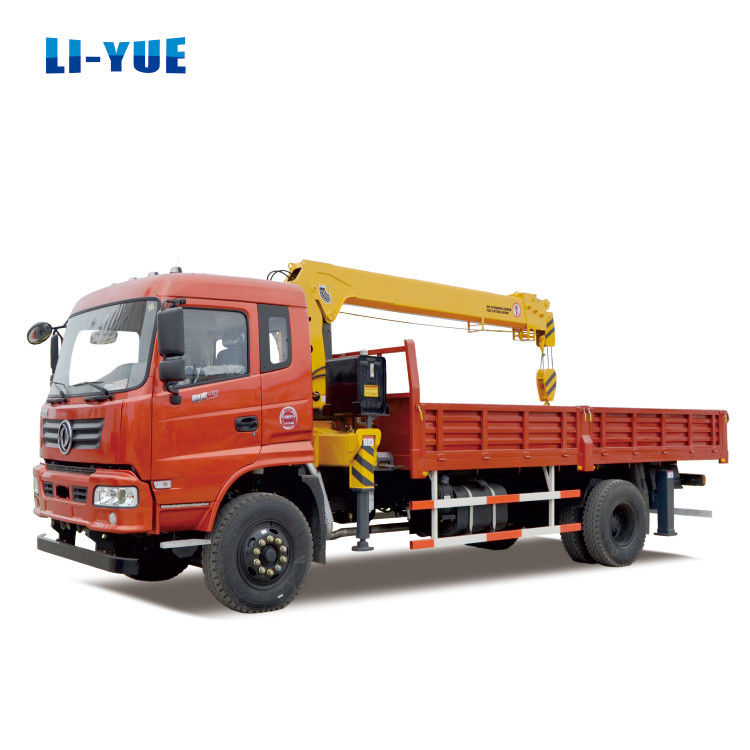

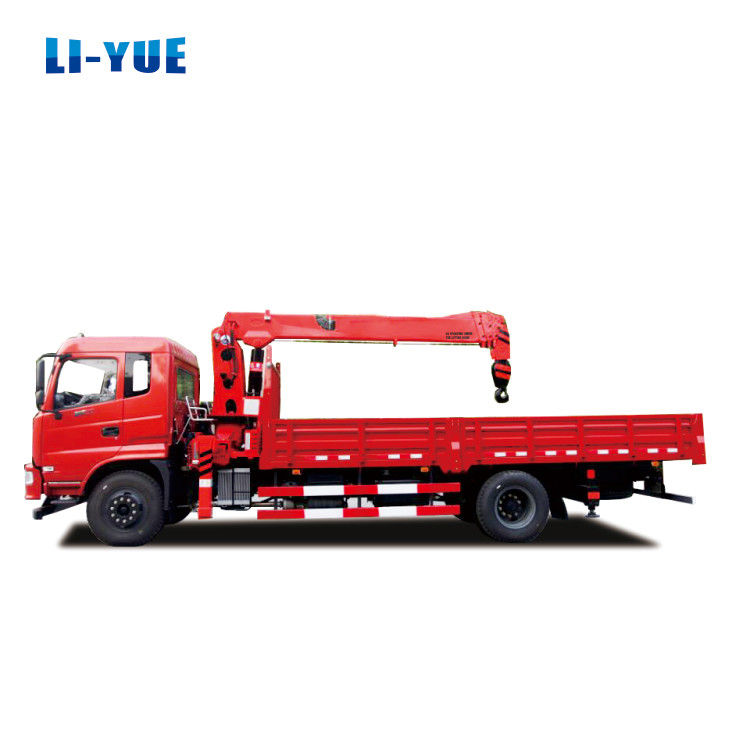

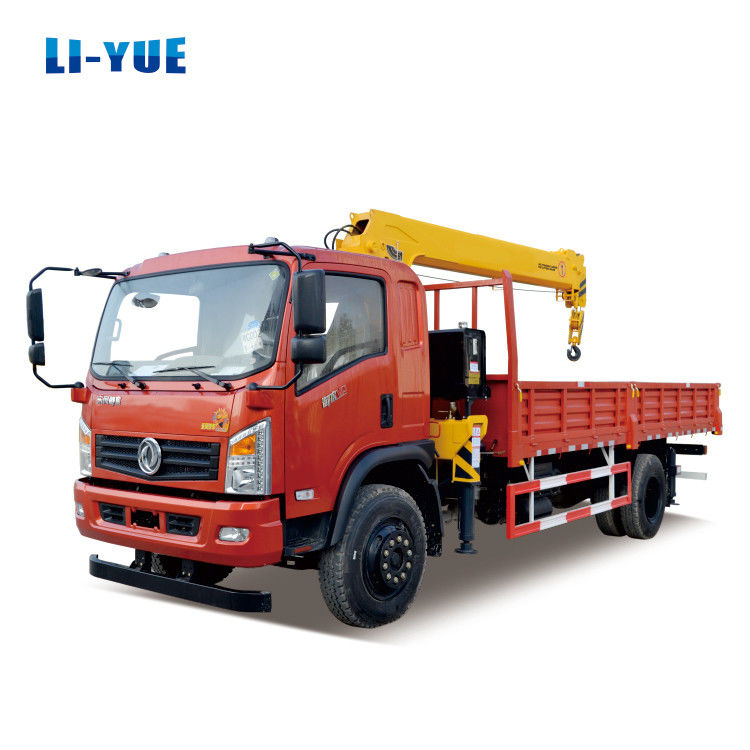

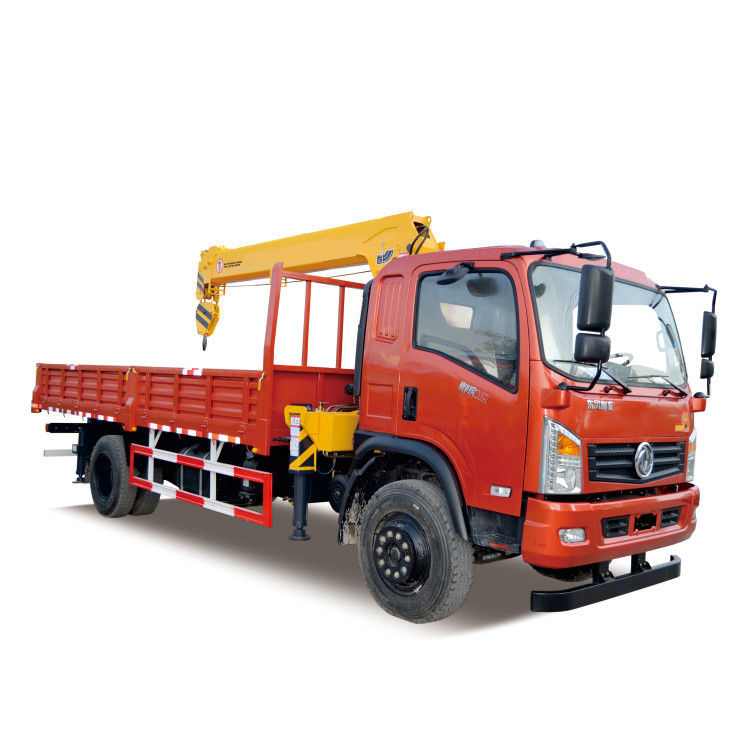

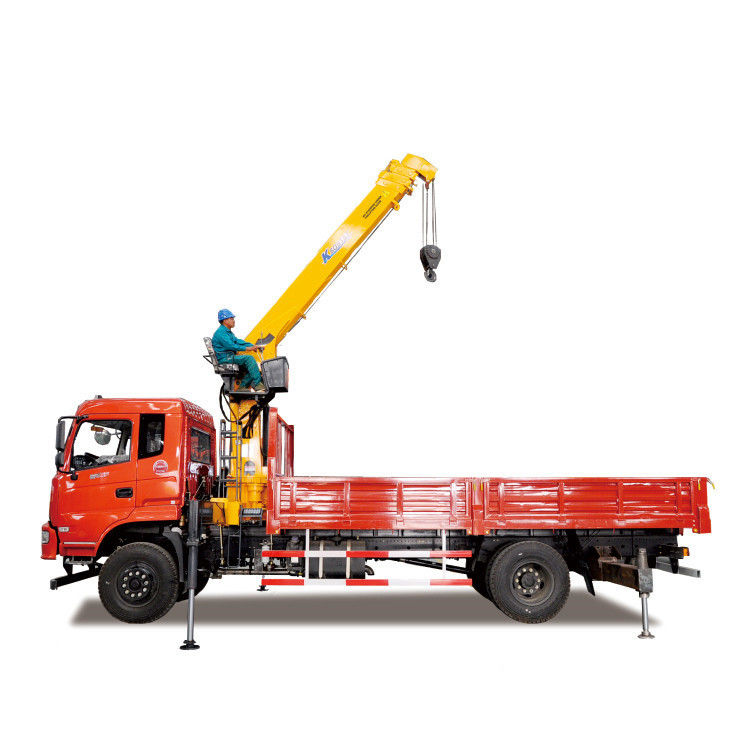

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine

8 Ton Truck Mounted Crane

YUNNEI Engine Truck Mounted Crane

3315 kg Truck Mounted Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Contact Us
Request A Quote
3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine
Product Details
Feature:
TRUCK CRANE
Showroom Location:
Indonesia
Condition:
New
Application:
Construction
Rated Loading Capacity:
8 Ton
Rated Lifting Moment:
4.85-13 T.M
Max. Lifting Height:
15.2 M
Span:
2280-5580 Mm
Warranty:
1 Year
Hydraulic Cylinder Brand:
MOOG
Hydraulic Pump Brand:
Changjiang
Hydraulic Valve Brand:
Liyuan
Engine Brand:
YUNNEI
UNIQUE SELLING POINT:
High Operating Efficiency
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Bearing, Pump
Weight (KG):
3315 Kg
Product Name:
Truck Mounted Crane
Crane Type:
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic Parts:
Famous Brand Hydraulic Parts
Capacity:
8 Ton Truck Crane
Boom Type:
Hydraulic Straight Arm
Color:
Customer Requirements
Usage:
Construction Lifting
Rotation Angle:
360 Degree
Installation Space:
1200 Mm
High Quality:
Mobile Crane Lifting Capacity
Highlight:

8 Ton Truck Mounted Crane

,

YUNNEI Engine Truck Mounted Crane

,

3315 kg Truck Mounted Crane

Payment & Shipping Terms
Price
$14,500.00/units 1-2 units
RELATED PRODUCTS
Good price Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation online Video

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price
Good price Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane online Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price
Good price 4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane online Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price
Good price 6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck online Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price
Contact Us
+86 153 3382 6131
info@liyuemachinery.com
86-153-3382-6131
Contact Now
Product Description

                                    Dongfeng 8 Tons Truck Mounted Crane

Product Description
NOTE: The price is only for crane part.
3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 0

Project

Unit

Value

Crane Dimension

Crane Model

-

SQ 8T

Max. Lifting Capacity

kg

8000

Max. Lifting Height

m

15

Working Radius/ Span

m

2.5-12.5

Rotation Angle

º

360

Boom Raising Angle Scope

º

0-75

Boom Sections

Piece

4

Outrigger Quantity

Piece

2

Outrigger Span (Fully Extended)

mm

2280-5400

Crane Weight

kg

3315

Hydraulic Tank Capacity

L

140

Max. Flow Rate of Hydraulic Oil System

L/min

50

Hydraulic System Rated Pressure

Mpa

27

Installation Space

mm

1200

Working Parameter

The Basic Boom Length

m

4.85-13

Max. Lifting Torque

T.m

20

Max. Slewing Speed

r/ min

2
 3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 1
3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 2
3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 3
Product Description



Product Process

                               Famous Brand Hydraulic Parts for our Truck Crane



3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 4



                                                            Prodution Progress



3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 5

Packing & Shipping

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 6

Client Visit

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 7







3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 8



Certifications

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 9



Optional Device

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 10

Foreign Cases

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 11

Related Products

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 12

customer evaluation

3315 kg Competitive 8 Ton Mobile Stiff Arm Truck Mounted Crane with YUNNEI Engine 13
