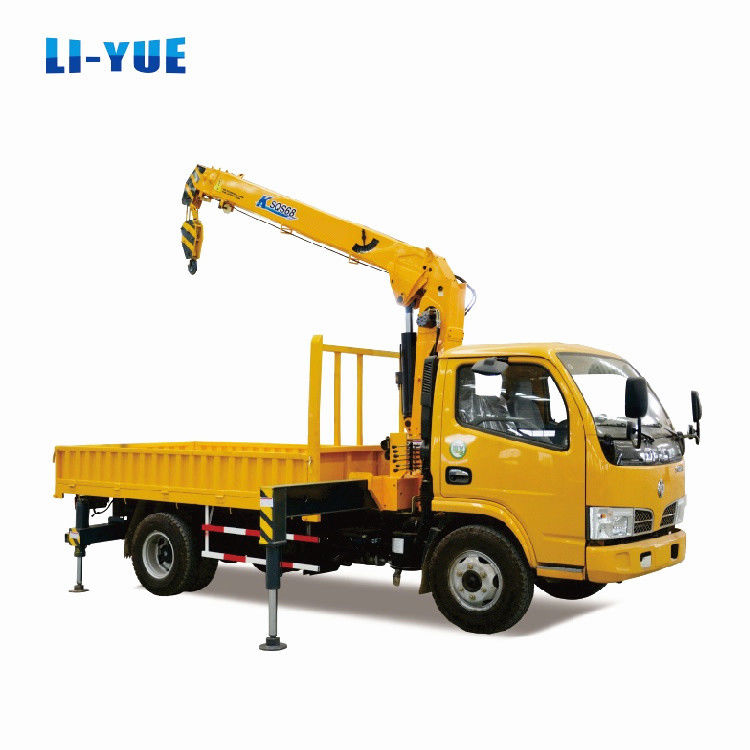

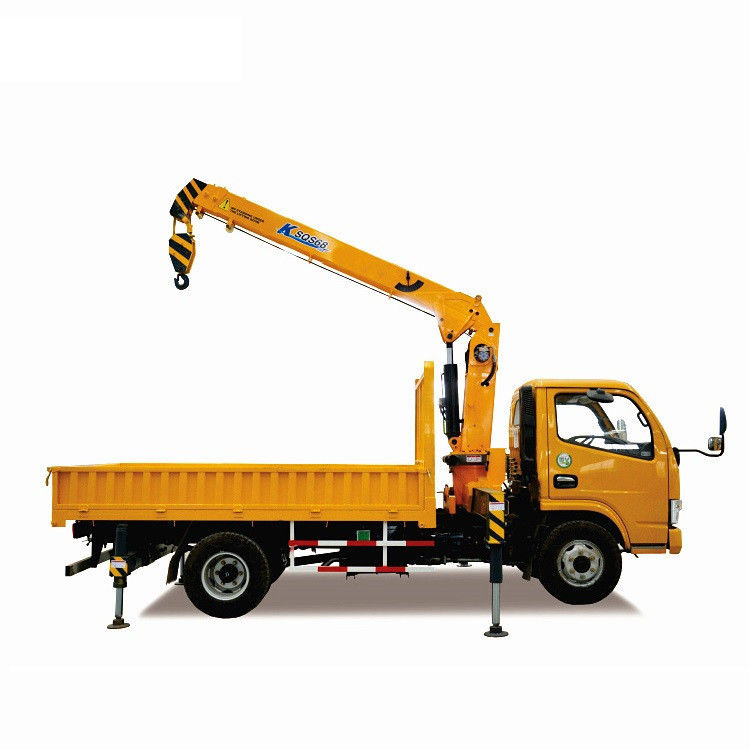

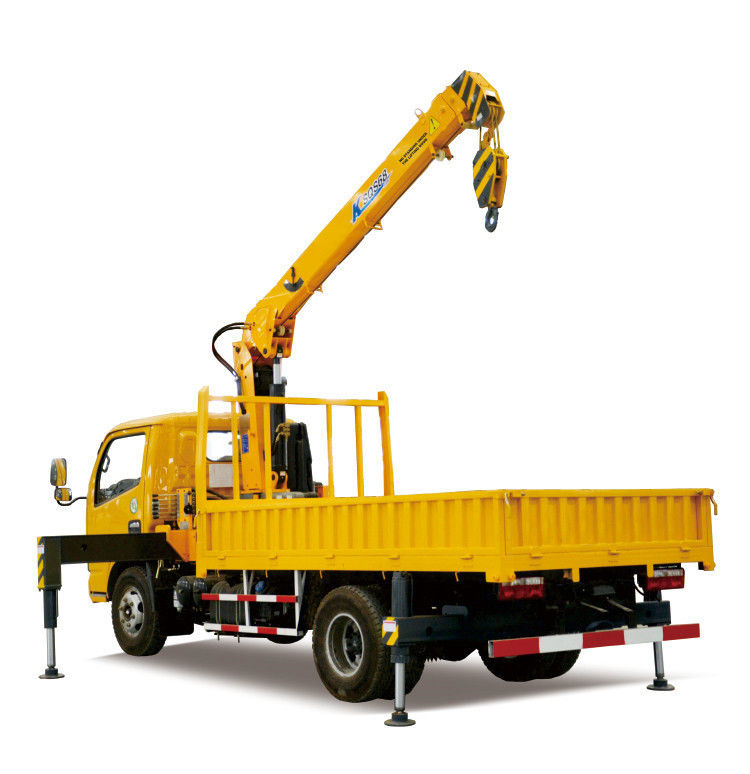

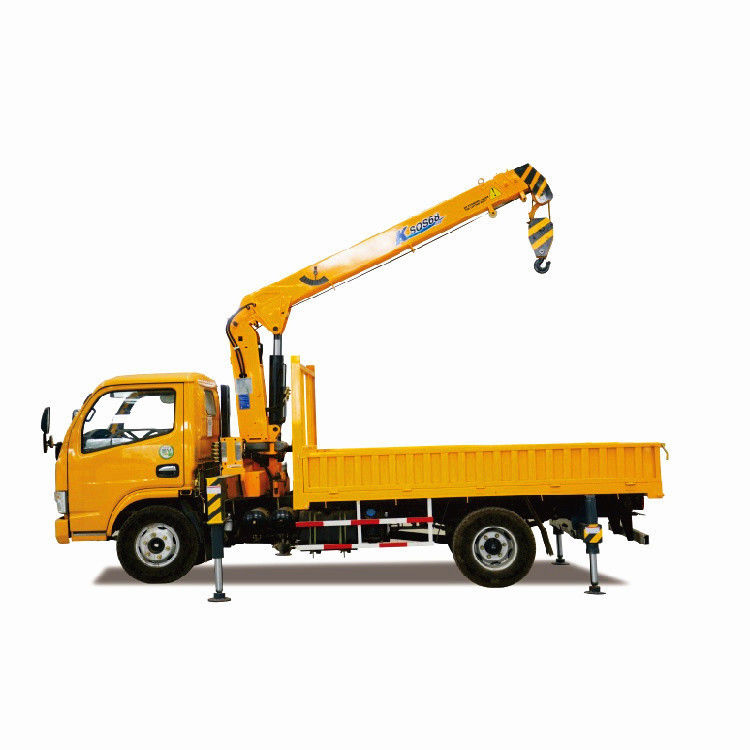

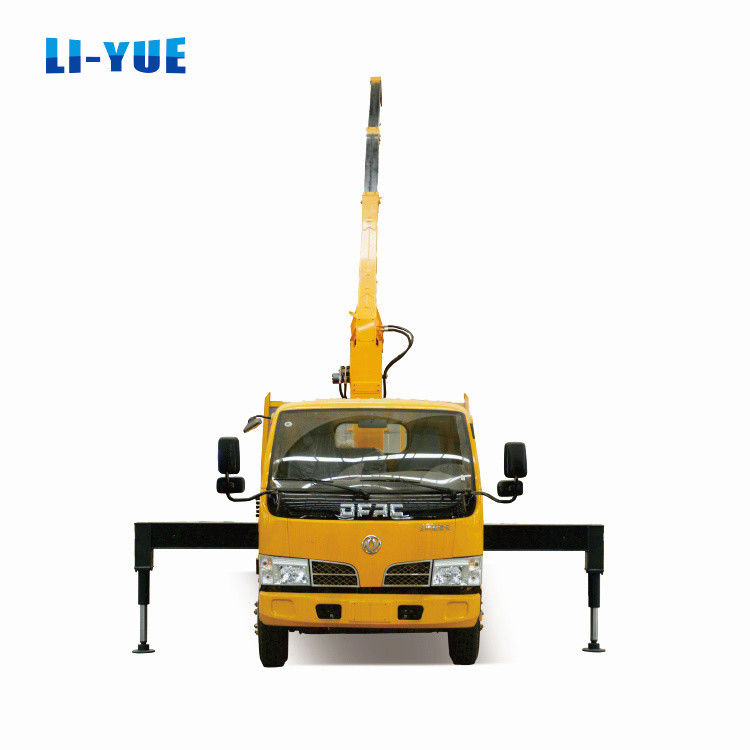

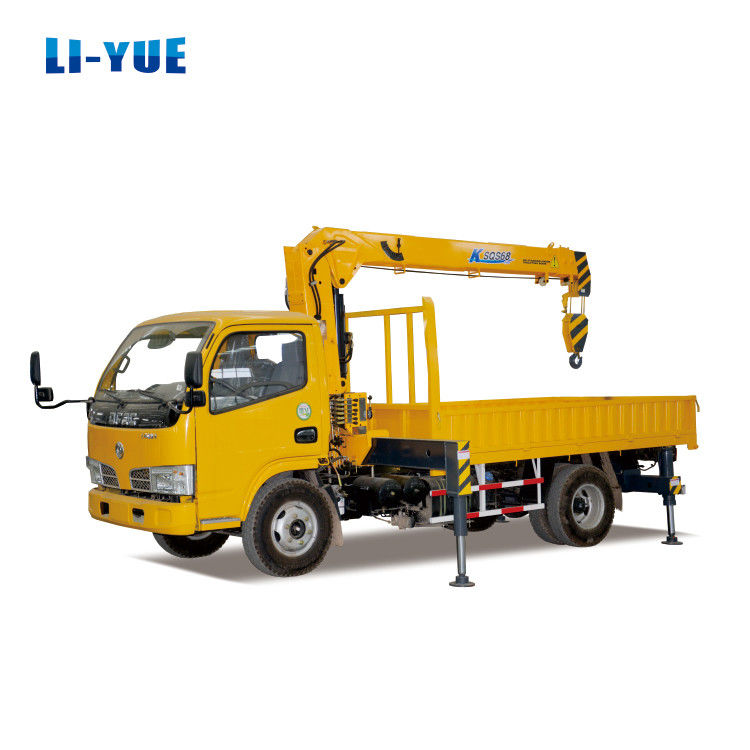

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency

5 Ton Hydraulic Mobile Crane

Unique Selling Point Hydraulic Mobile Crane

High Operating Efficiency Hydraulic Mobile Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Contact Us
Request A Quote
5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency
Product Details
Feature:
TRUCK CRANE
Showroom Location:
Indonesia
Condition:
New
Application:
Construction
Rated Loading Capacity:
5 Ton
Rated Lifting Moment:
12.5 T.M
Max. Lifting Height:
11.5 M
Span:
2280-5100 Mm
Warranty:
1 Year
Hydraulic Cylinder Brand:
MOOG
Hydraulic Pump Brand:
Changjiang
Hydraulic Valve Brand:
Liyuan
Engine Brand:
YUNNEI
UNIQUE SELLING POINT:
High Operating Efficiency
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
1 Year
Core Components:
Bearing, Pump
Weight (KG):
2260 Kg
Product Name:
Truck Mounted Crane
Crane Type:
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic Parts:
Famous Brand Hydraulic Parts
Capacity:
5 Ton Truck Crane
Boom Type:
Hydraulic Straight Arm
Color:
Customer Requirements
Usage:
Construction Lifting
Rotation Angle:
360 Degree
Installation Space:
900 Mm
High Quality:
Mobile Crane Lifting Capacity
Highlight:

5 Ton Hydraulic Mobile Crane

,

Unique Selling Point Hydraulic Mobile Crane

,

High Operating Efficiency Hydraulic Mobile Crane

Payment & Shipping Terms
Price
$9,300.00/units 1-2 units
Packaging Details
Nude packing
Supply Ability
3000 Unit/Units per Year
RELATED PRODUCTS
Good price Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation online Video

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price
Good price Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane online Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price
Good price 4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane online Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price
Good price 6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck online Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price
Contact Us
+86 153 3382 6131
info@liyuemachinery.com
86-153-3382-6131
Contact Now
Product Description



5 Tons Dongfeng Hydraulic Telescopic Boom Truck Mounted Crane Cargo Crane

Product Description

NOTE: The price is for crane part only!

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 05 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 15 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 2

Project

Unit

Value

Crane Dimension

Crane Model

---

SQ 5T

Max. Lifting Capacity

kg

5000

Max. Lifting Height

m

8.7

Working Radius/ Span

m

2.2-11

Rotation Angle

º

360

Boom Raising Angle Scope

º

0-75

Chassis Truck Data and Weight

Chassis Brand

---

Dongfeng

Overall Dimensions (L*W*H)

mm

9000*2500*3850

Cargo Body Dimensions (L*W*H)

mm

6000*2300*550

Total Mass

kg

15800

Rated Loading

kg

4225

Front and Rear Axle Load

kg

5600/ 10200

Engine Model

---

Cummins

ISD185 50

Engine Powder/ Engine Displacement

HP/ml

185/ 4500

Working Parameter

Gearbox

---

6 Forwards& 1 Reverse

Service Brake

---

Automatically Air-Cut Brake

Power Steering Model

---

Hydraulic sSteering with Power Assistance

The Basic Boom Length

m

3.8-8.7

Diameter of Wire Rope

mm

8

Length of Wire Rope

m

55

Speed of Sing Rope (No Load)

m/min

45

Max. Lines of the Hook

Times

4

Travelling Parameter

Max. Travel Speed

Km/ h

90

Max. Gradeability

%

30

Min. Turning Diameter

m

14.5



Product Description



Product Process

                               Famous Brand Hydraulic Parts for our Truck Crane



5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 3



                                                            Prodution Progress



5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 4

Packing & Shipping

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 5

Client Visit

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 6







5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 7



Certifications

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 8



Optional Device

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 9

Foreign Cases

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 10

Related Products

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 11

customer evaluation

5 Ton Hydraulic Mobile Crane with Unique Selling Point and High Operating Efficiency 12
