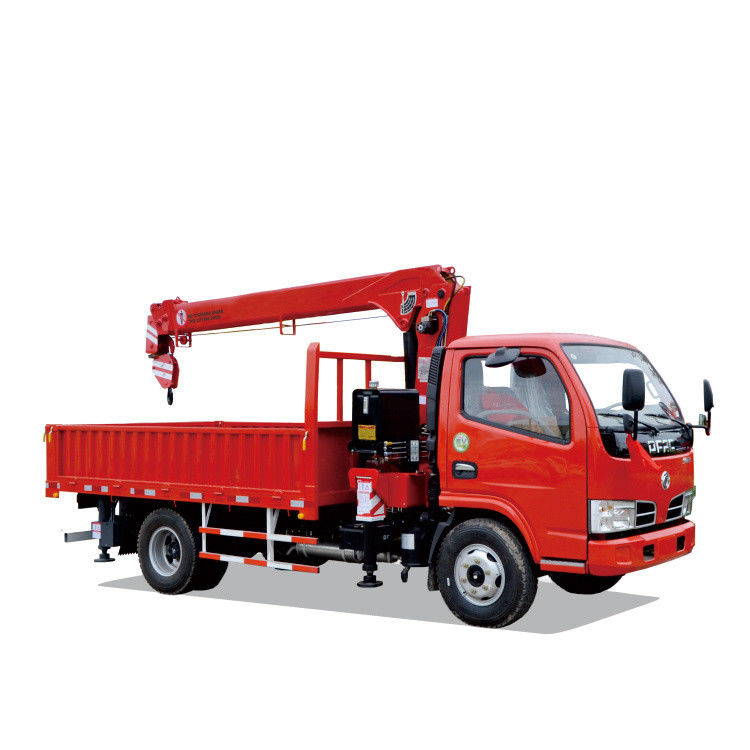

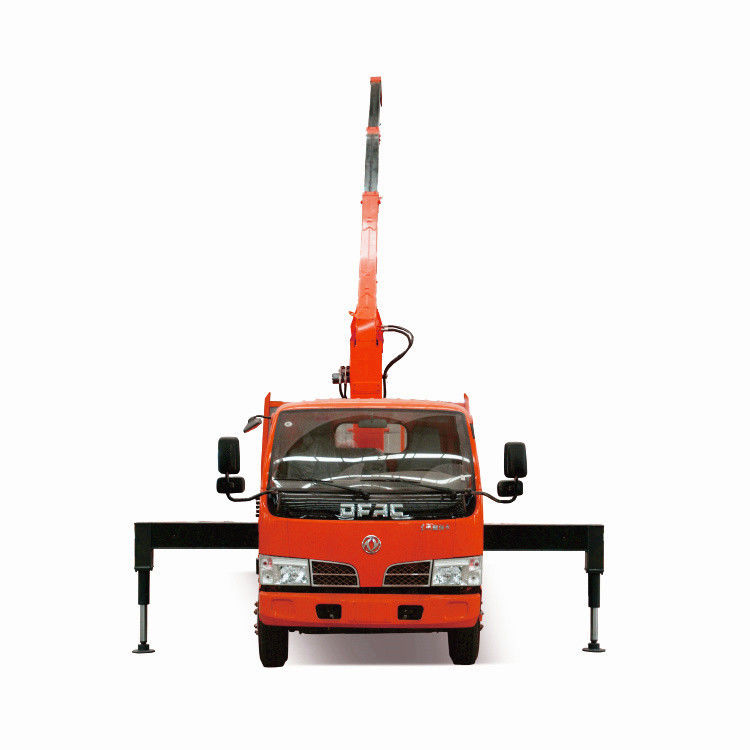

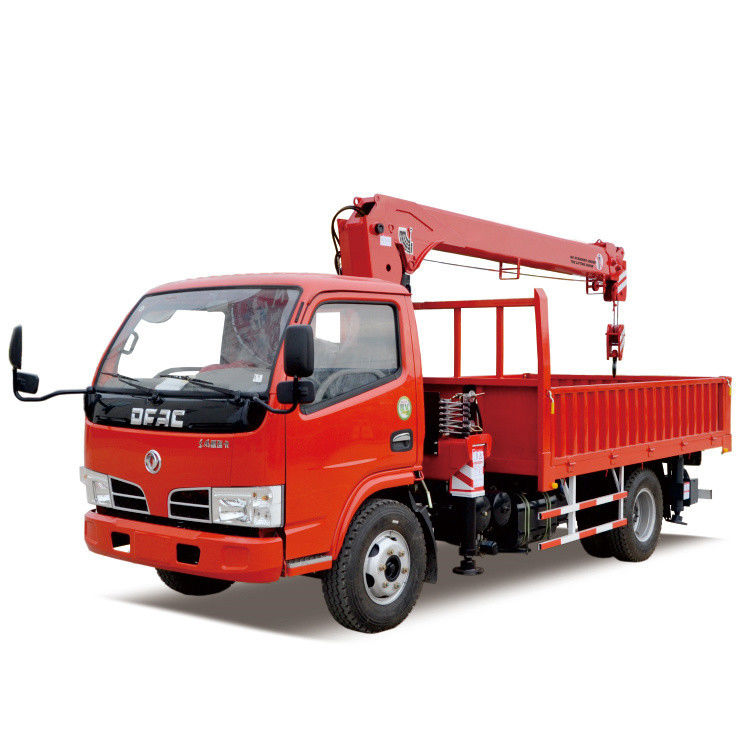

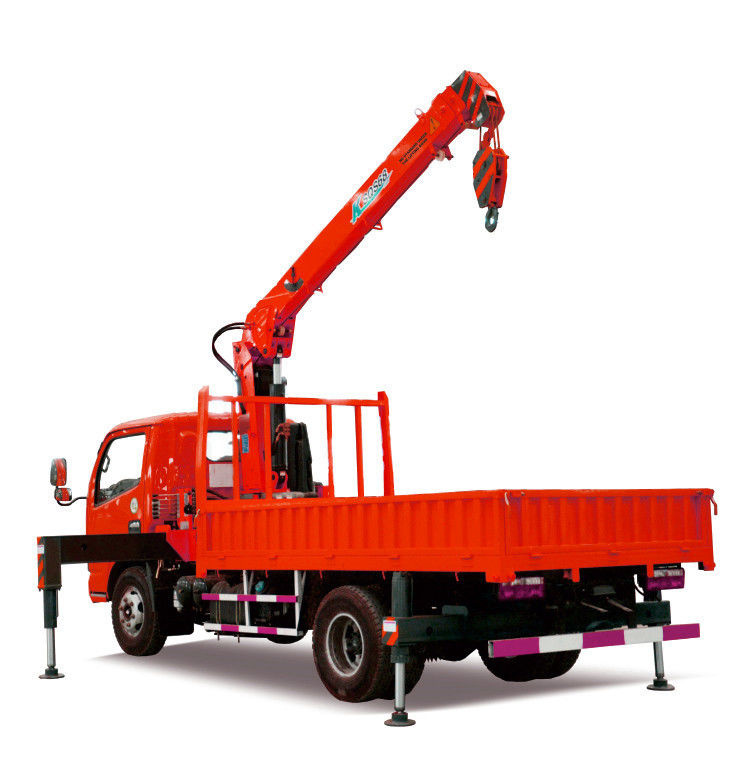

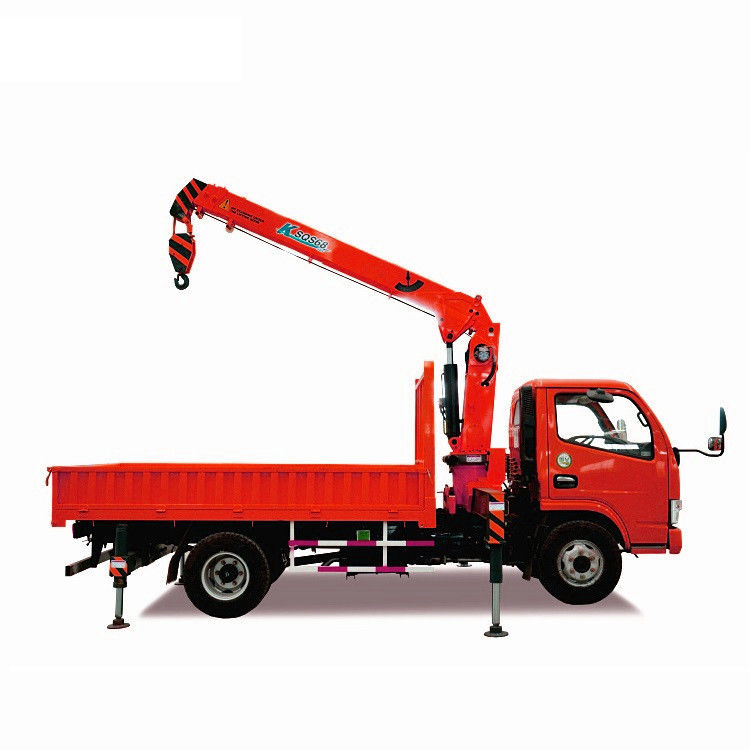

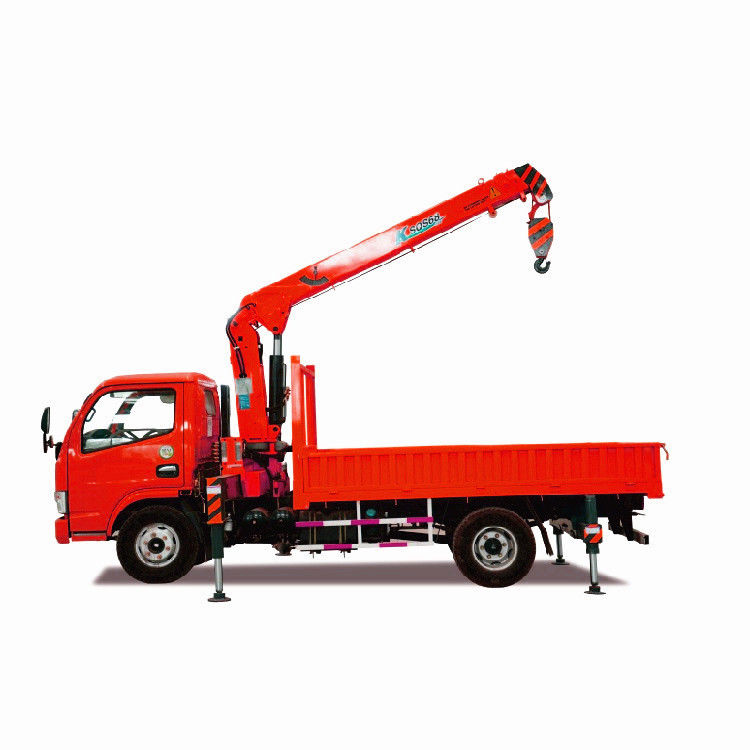

Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane

Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane

3.2 Ton Hydraulic Cylinder

MOOG Hydraulic Cylinder

Truck Mounted Crane Hydraulic Cylinder

Place of Origin:

Henan, China

Brand Name:

LIYUE

Contact Us
Request A Quote
Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane
Product Details
Feature:
TRUCK CRANE
Showroom Location:
Indonesia
Condition:
New
Application:
Construction
Rated Loading Capacity:
3 Ton
Rated Lifting Moment:
6.8 T.M
Max. Lifting Height:
9 M
Span:
1898-3329 Mm
Warranty:
1 Year
Hydraulic Cylinder Brand:
MOOG
Hydraulic Pump Brand:
Changjiang
Hydraulic Valve Brand:
Liyuan
Engine Brand:
YUNNEI
UNIQUE SELLING POINT:
High Operating Efficiency
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
Bearing, Gearbox, Engine
Weight (KG):
1290 Kg
Product Name:
Truck Mounted Crane
Crane Type:
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic Parts:
Famous Brand Hydraulic Parts
Capacity:
1-3 Ton Truck Crane
Boom Type:
Hydraulic Straight Arm
Color:
Customer Requirements
Usage:
Construction Lifting
Rotation Angle:
360 Degree
Installation Space:
850 Mm
High Quality:
Mobile Crane Lifting Capacity
Port:
Qingdao/ Tianjin/ Lianyungang
Highlight:

3.2 Ton Hydraulic Cylinder

,

MOOG Hydraulic Cylinder

,

Truck Mounted Crane Hydraulic Cylinder

Payment & Shipping Terms
Price
$7,000.00/units 1-4 units
Packaging Details
Nude packing
Supply Ability
3000 Unit/Units per Year
RELATED PRODUCTS
Good price Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation online Video

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price
Good price Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane online Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price
Good price 4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane online Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price
Good price 6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck online Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price
Contact Us
+86 153 3382 6131
info@liyuemachinery.com
86-153-3382-6131
Contact Now
Product Description

Crane Manufacturer Construction Machinery SQ3S3 3 Ton Telescopic Truck Mounted Crane

Product Description
NOTE: The price is only for crane part.
Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 0

Project

Unit

Value

Crane Dimension

Crane Model

-

SQ 3.2T

Max. Lifting Capacity

kg

3200

Max. Lifting Height

m

9

Working Radius/ Span

m

0.67-10

Rotation Angle

º

360 Continious

Boom Raising Angle Scope

º

0-75

Boom Sections

Piece

3

Outrigger Quantity

Piece

2

Outrigger Span (Fully Extended)

mm

1898-3329

Crane Weight

kg

1290

Hydraulic Tank Capacity

L

35

Max. Flow Rate of Hydraulic Oil System

L/min

25

Hydraulic System Rated Pressure

Mpa

21

Installation Space

mm

850

Working Parameter

The Basic Boom Length

m

3.38-11.0

Max. Lifting Torque

T.m

6.8

Max. Slewing Speed

r/ min

2.5
 Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 1
Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 2
Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 3
Product Process

                               Famous Brand Hydraulic Parts for our Truck Crane



Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 4



                                                            Prodution Progress



Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 5

Packing & Shipping

Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 6

Client Visit

Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 7







Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 8



Certifications

Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 9



Optional Device

Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 10

Foreign Cases

Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 11



Clients Quality Approval



Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 12

Related Products

Construction Lifting Hydraulic Cylinder MOOG 3.2 Ton Dongfeng Gruas Truck Mounted Crane 13
