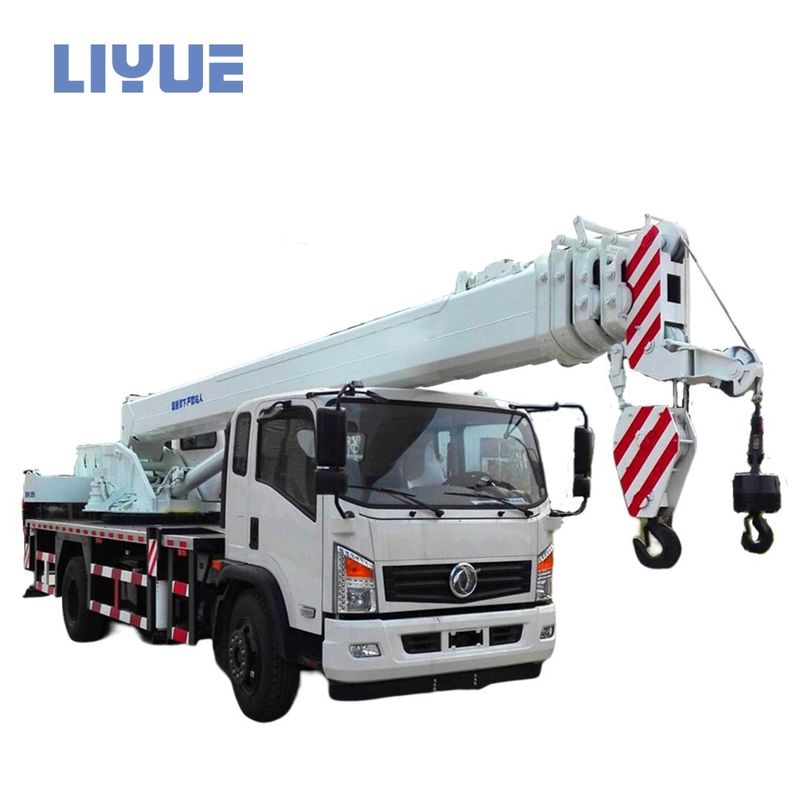

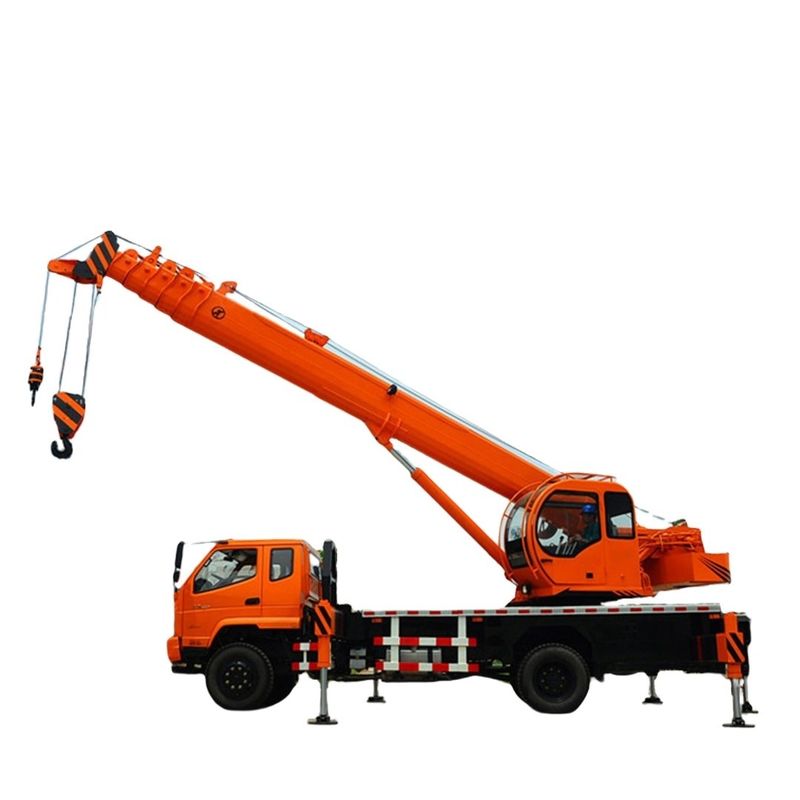

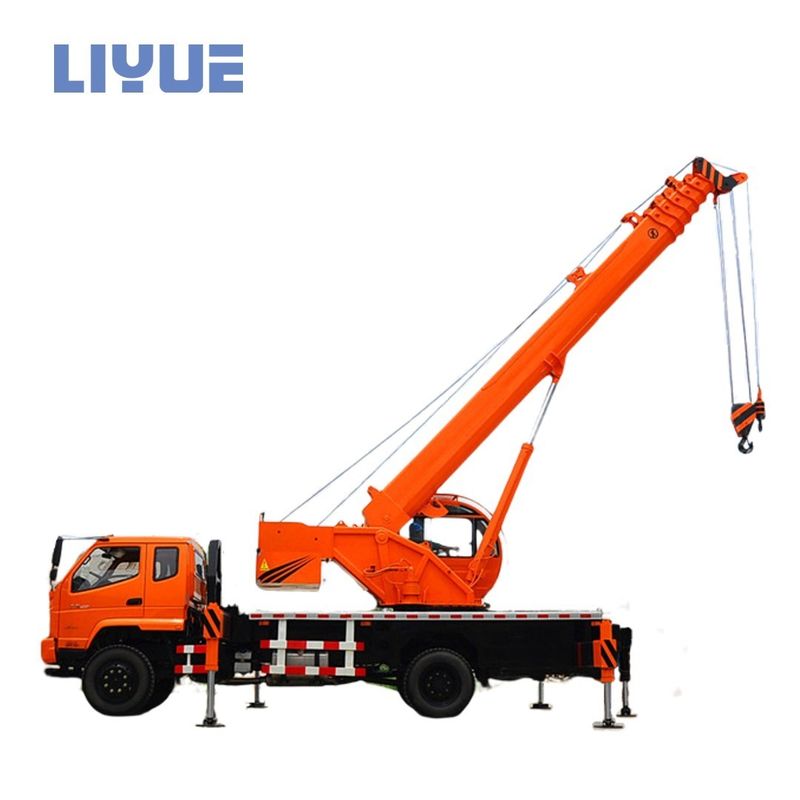

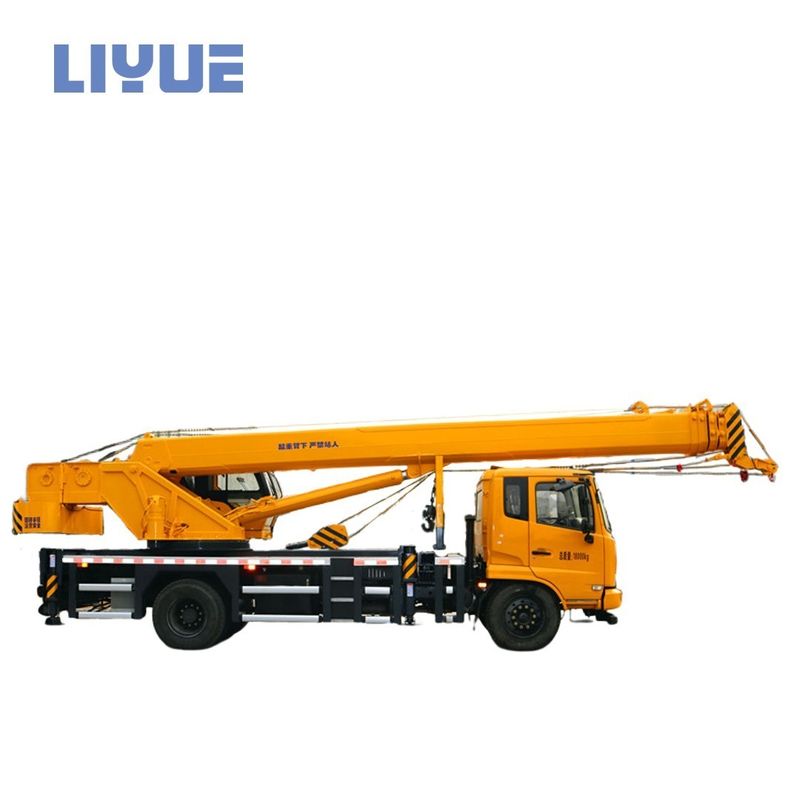

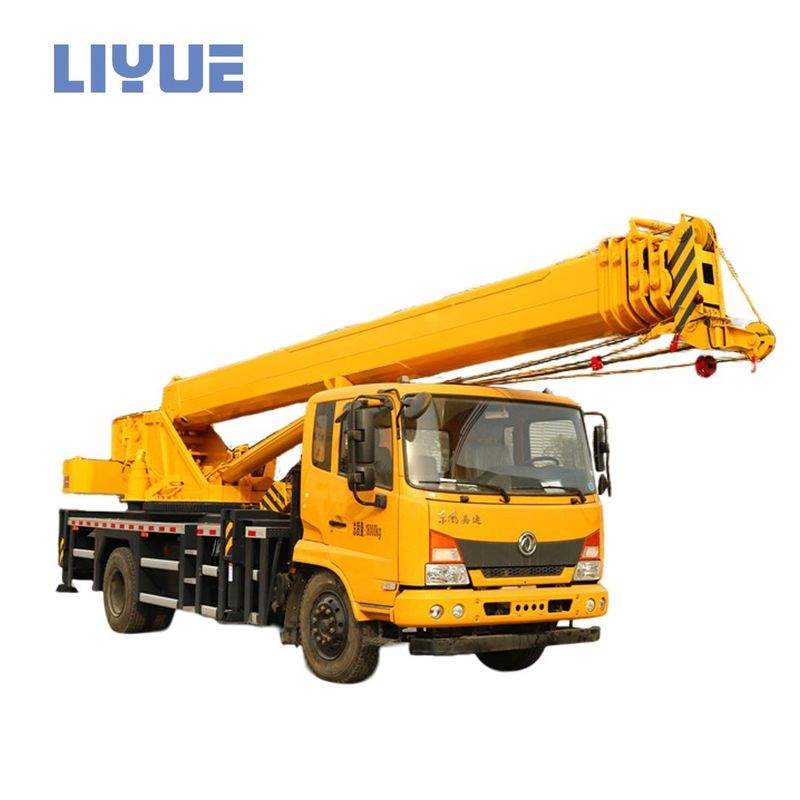

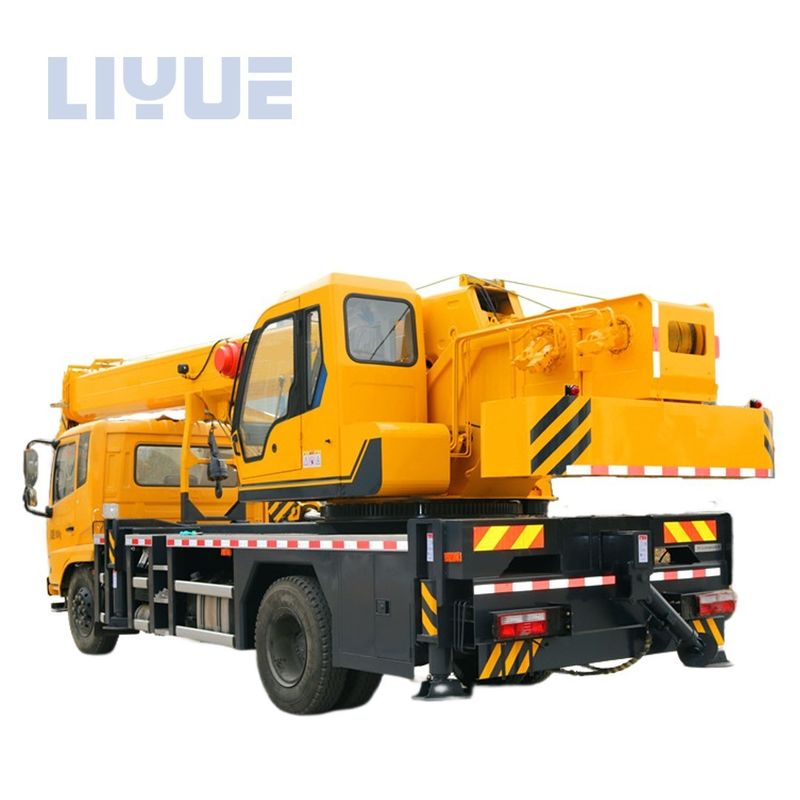

Hydraulic Valve Construction 16 Ton Truck Crane With 30m Max. Lifting Height

Hydraulic Valve 16 Ton Truck Crane

Construction 16 Ton Truck Crane

30m Construction Truck Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

Hydraulic Valve Construction 16 Ton Truck Crane With 30m Max. Lifting Height

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

16 TON

Rated Lifting Moment:

480 KN.M

Max. Lifting Height:

30m

Span:

6.6m

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

3 Months

Core Components:

Pressure Vessel, Motor, Pump, Gearbox, Engine

Weight (KG):

15800 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

1-16 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Keyword:

Crane Truck Mobile Truck Crane Sizes

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Hydraulic Valve 16 Ton Truck Crane

Construction 16 Ton Truck Crane

30m Construction Truck Crane

Payment & Shipping Terms

Price

$48,500.00/units 1-4 units

China's Top Brand 12 Ton Telescopic Boom Cargo Mobile Truck Crane for Sale

Get Best Price

Dongfeng New 12 Ton Truck Crane China Construction Mobile Crane Price for Sale

Get Best Price

Construction Engineering Crane Telescopic Boom Crane Hydraulic 12 Tons Mobile Crane

Get Best Price

Lifting Crane Equipment 12 Tons NEW High Lift Mobile Crane

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

Liyuan Hydraulic Valve 16 Ton Truck Crane With 22M Working Radius 30m Max. Lifting Height

Product Description

Project		Unit	Value
Crane Dimension	Model	-	QY 16-5-34
	Dimensions (LWH)	mm	1126023303260
	Outrigger Longitudinal/ Horizontal Span	mm	4800/ 2290-6290
	Outriggers Quantity	piece	5
	Basic Boom Lifting Length	m	9.1-30.28
	Main Boom Elevation	º	3-80
Working Parameter	Boom Quantity	Section	5
	Hydraulic Tank Capacity	L	200
	Max. Total Lifting Capacity	KG	16000
	The Basic Boom Lifting Torque (Max.)	KN.m	480
	Max. Lifting Height	m	34
	Working Radius	m	3--22
	Max. Slewing Speed	r/ min	≤3
Dongfeng Chassis Parameter	Total Mass	kg	15800
	Front And Rear Axle Load	kg	4800/ 11000
	Drive Type	-	4*2 RHD/ LHD
	Emission Standard	-	Euro 3/ Euro 5
	Tyre Size	-	7.50-16LT
	Front/ Rear Track	mm	1640/ 1650
	Engine Power	HP	130
	Wheel Base	mm	4300
Travelling Parameter	Max. Travel Speed	Km/ h	75
	Max. Gradeability	%	17
	Min. Turning Diameter	m	18
	Approach Angle/ Departure Angle	º	21/ 16
	Fuel Consumption of 100km	L	28
	Min. Ground Clearance	mm	260
