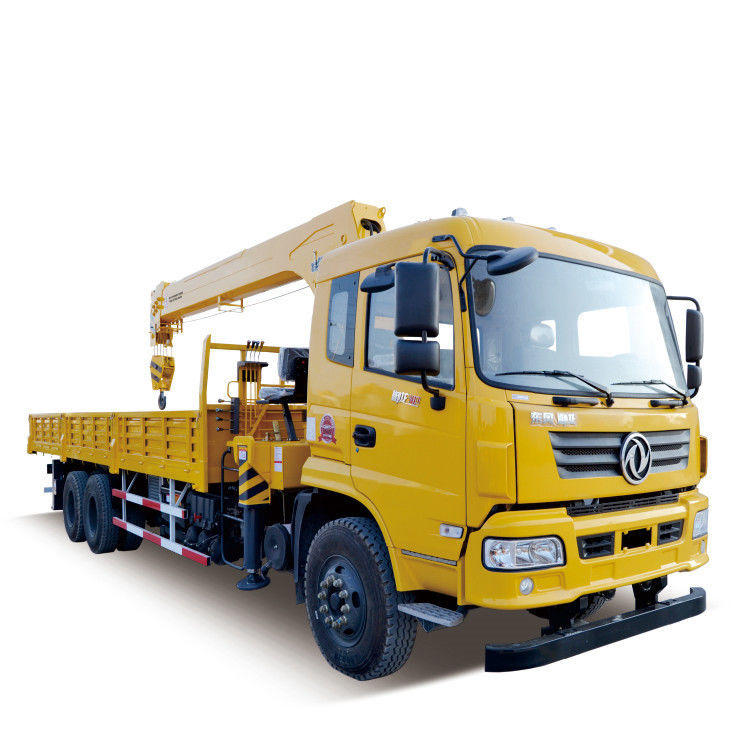

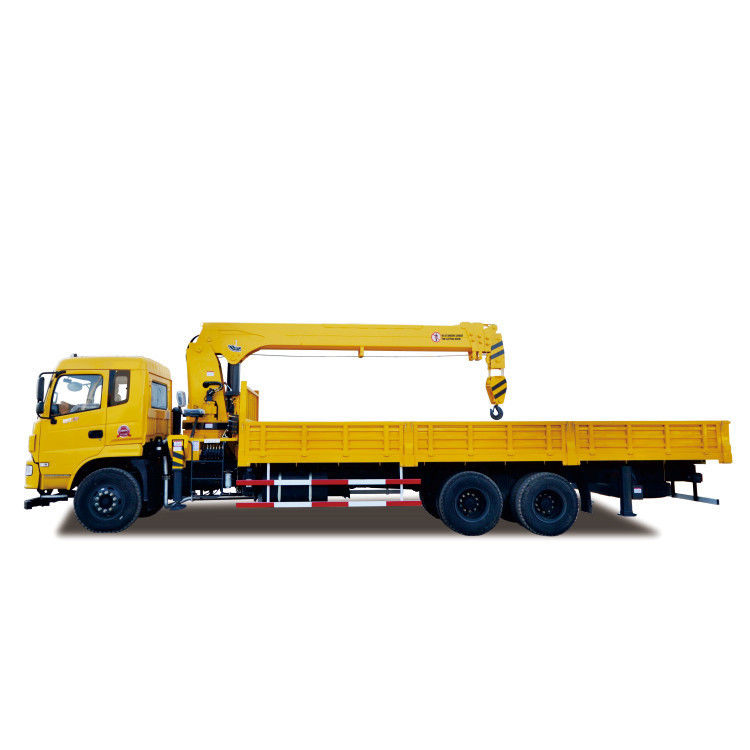

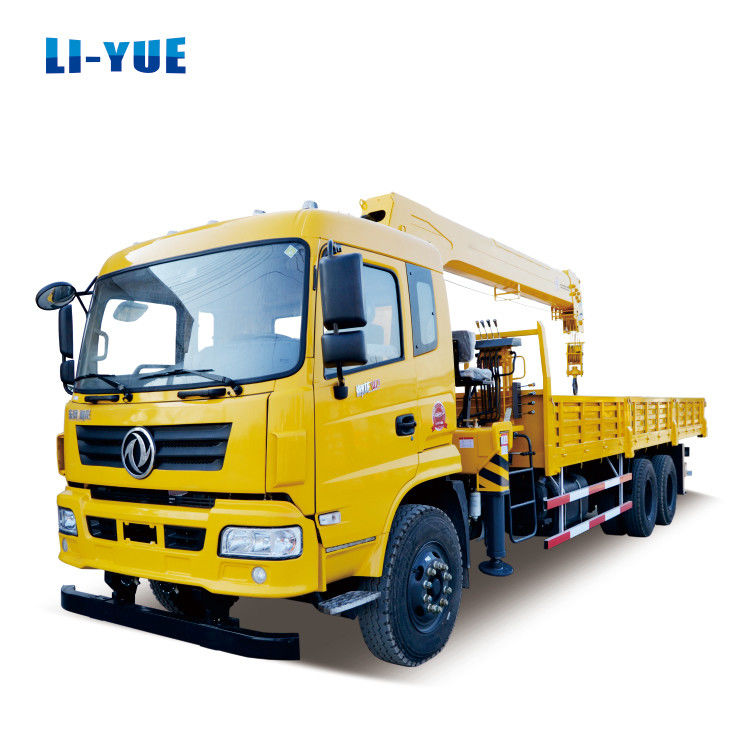

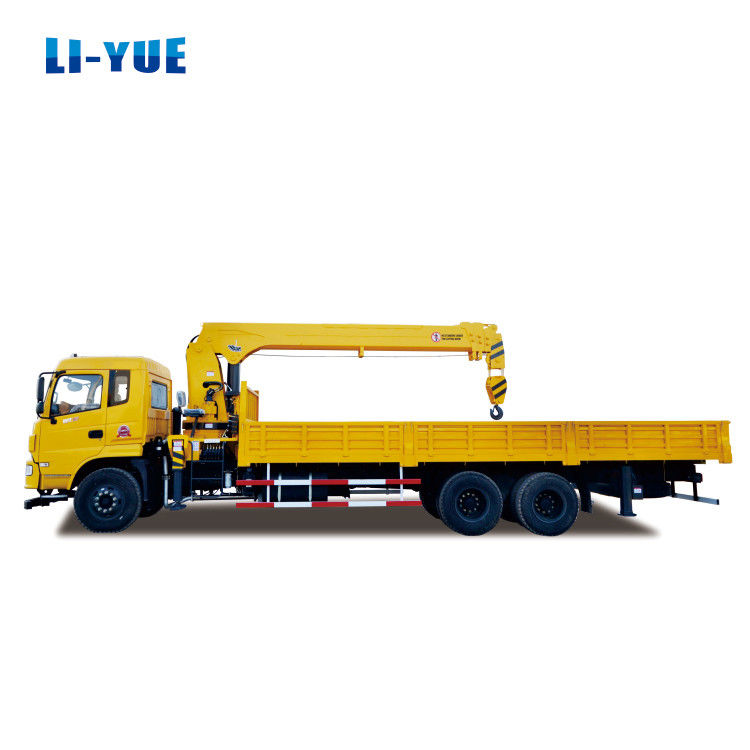

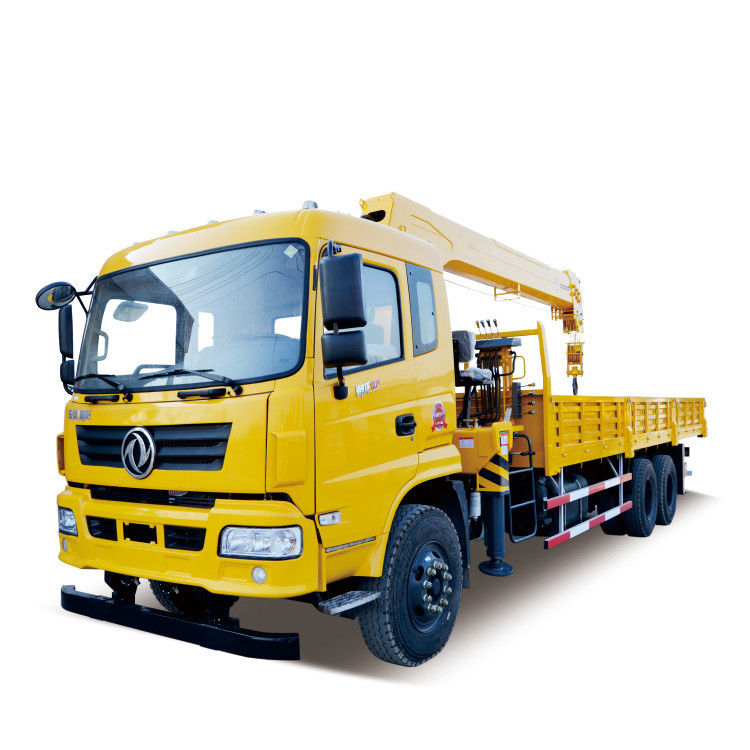

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered

14T Truck Mounted Telescopic Boom Crane

Construction Telescopic Boom Truck Crane

Hydraulic Pump Powered Telescopic Boom Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

14 Ton

Rated Lifting Moment:

3.3-18 T.M

Max. Lifting Height:

20 M

Span:

2270-5270 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Pump

Weight (KG):

4426 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

14 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

1400 Mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

14T Truck Mounted Telescopic Boom Crane

Construction Telescopic Boom Truck Crane

Hydraulic Pump Powered Telescopic Boom Crane

Payment & Shipping Terms

Price

$24,800.00/units 1-2 units

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price

Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price

Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price

Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

YUNNEI Engine And Changjiang Hydraulic Pump Powered 14 Ton Truck Mounted Telescopic Boom

Product Description

NOTE: The price is only for crane part.

Project		Unit	Value
Crane Dimension	Crane Model	-	SQ 14T
	Max. Lifting Capacity	kg	14000
	Max. Lifting Height	m	21
	Working Radius/ Span	m	2.1-15.5
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	5
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	2270-5270
	Crane Weight	kg	4426
	Hydraulic Tank Capacity	L	160
	Max. Flow Rate of Hydraulic Oil System	L/min	63
	Hydraulic System Rated Pressure	Mpa	26
	Installation Space	mm	1400
Working Parameter	The Basic Boom Length	m	3.3-18
	Max. Lifting Torque	T.m	32
	Max. Slewing Speed	r/ min	2

Truck mounted crane, also known as lorry crane, boom crane, arrow crane, telescopic crane, etc. It can be equipped with cargo boxes of different lengths, generally 3.4m, 4.4m, 5.6m, 8.6m, etc.

Follow up lifting weight can be divided into 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 14 tons and 1 ton.

The models of truck mounted cranes mainly include SQ3.2, SQ4, SQ5, SQ6.3, SQ8, SQ10, SQ12, SQ14 and SQ16. Cranes of different tonnage.

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered 4

Prodution Progress

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered 5

Packing & Shipping

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered 6

Client Visit

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered 7

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered 8

Certifications

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered 9

Optional Device

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered 10

Foreign Cases

14T Truck Mounted Telescopic Boom Crane With Changjiang Hydraulic Pump Powered 11
