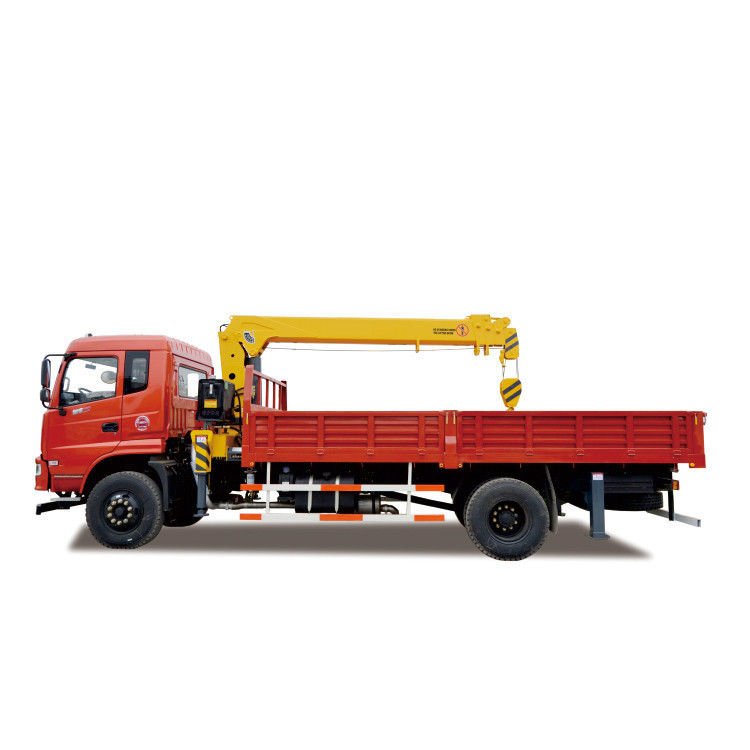

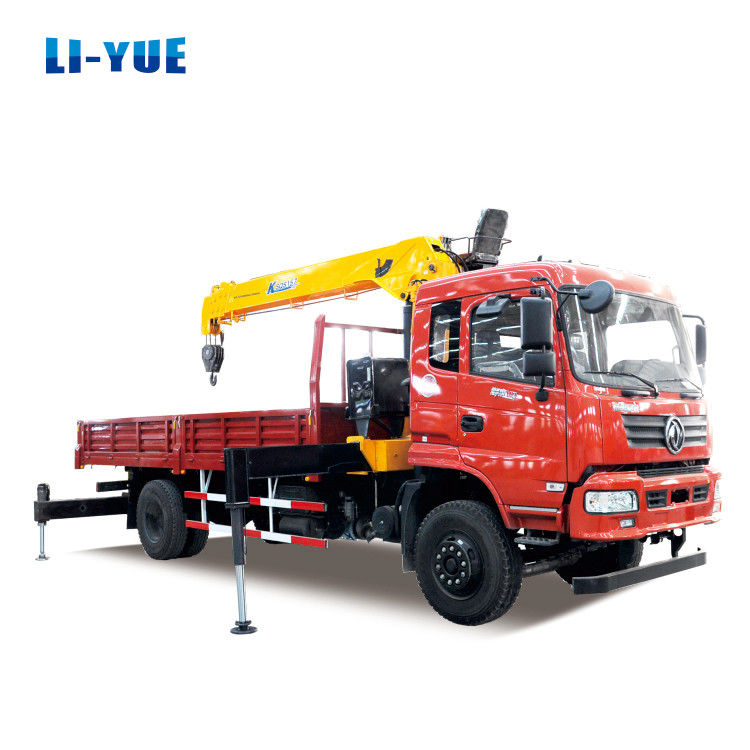

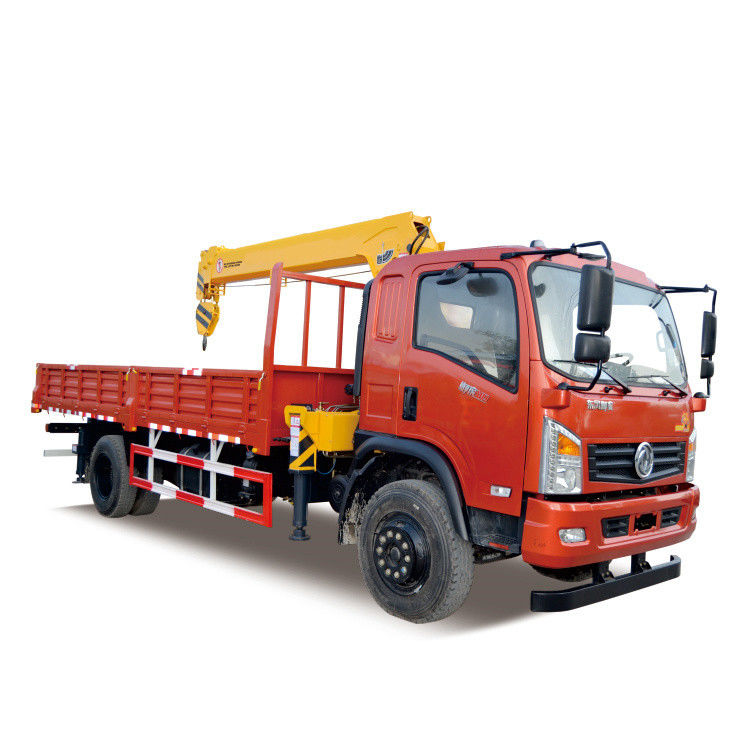

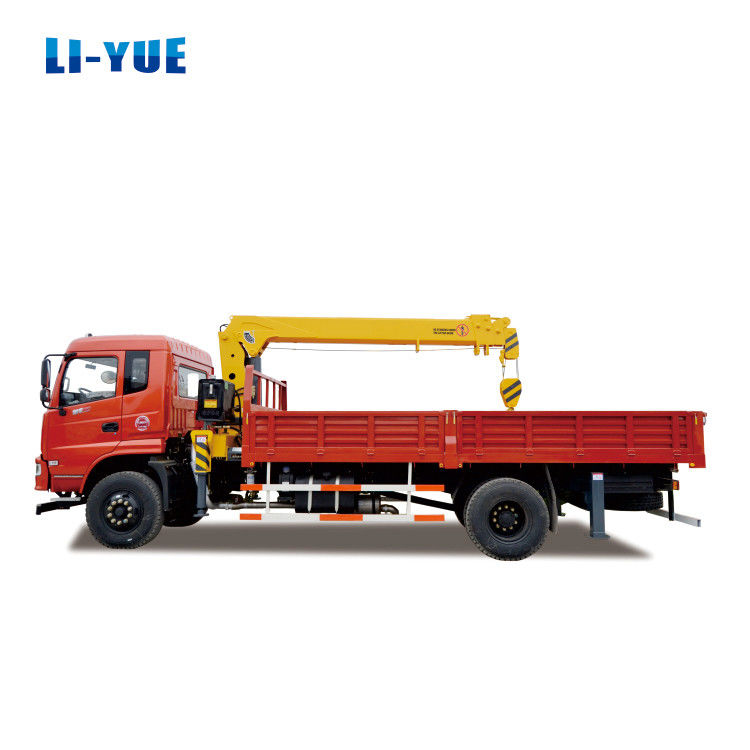

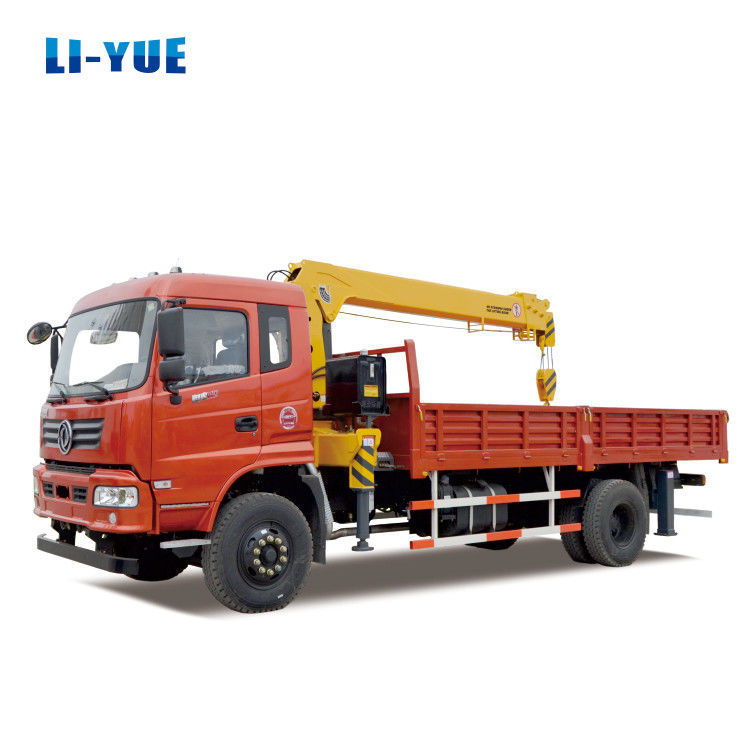

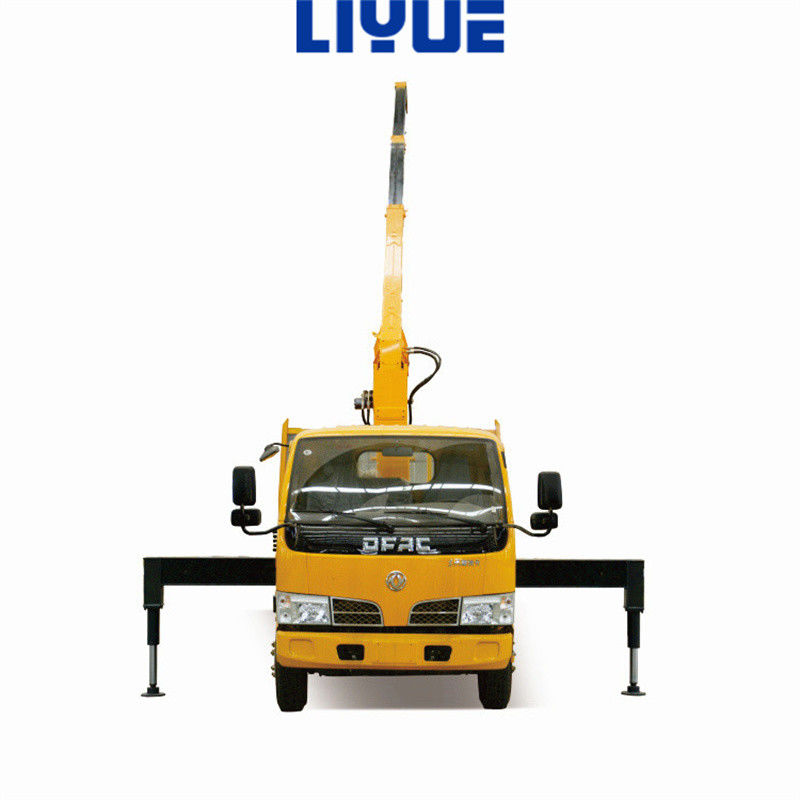

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency

Mini Truck Mounted Cranes

6.3T Truck Mounted Cranes

Mini Hydraulic Boom Truck Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

6.3 Ton

Rated Lifting Moment:

12.5 T.M

Max. Lifting Height:

12.8 M

Span:

2280-5100 Mm

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Pump

Weight (KG):

2260 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

6.3 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

900 Mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Mini Truck Mounted Cranes

6.3T Truck Mounted Cranes

Mini Hydraulic Boom Truck Crane

Payment & Shipping Terms

Price

$11,500.00/units 1-2 units

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price

Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price

Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price

Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency

Product Description

NOTE: The price is only for crane part.

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 0

Project		Unit	Value
Crane Dimension	Crane Model	---	SQ 6.3T
	Max. Lifting Capacity	kg	6300
	Max. Lifting Height	m	8.7
	Working Radius/ Span	m	2.5-11
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
Chassis Truck Data and Weight	Chassis Brand	---	Dongfeng
	Overall Dimensions (LWH)	mm	900025003850
	Cargo Body Dimensions (LWH)	mm	60002300550
	Total Mass	kg	15800
	Rated Loading	kg	4225
	Front and Rear Axle Load	kg	5600/ 10200
	Engine Model	---	Cummins ISD185 50
	Engine powder/ Engine Displacement	HP/ml	185/ 4500
	Engine Torque Ratings	N.m/, r/min	650/1400
	Drive Type	---	4*2 Left/ Right Hand Drive
	Emission Standard	---	Euro 3/ Euro 5
	Wheel Base	mm	3800
Working Parameter	Diameter of Wire Rope	mm	8
	Length of Wire Rope	m	55
	Speed of Sing Rope (No Load)	m/min	67
	Max. Lines of the Hook	Times	4
	Safety Device	---	Turn off Alarm
	Max. Lifting Torque	T.m	12.5
Travelling Parameter	Max. Travel Speed	Km/ h	90
	Max. Gradeability	%	30
	Min. Turning Diameter	m	14.5

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 3

Prodution Progress

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 4

Packing & Shipping

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 5

Client Visit

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 6

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 7

Certifications

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 8

Optional Device

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 9

Foreign Cases

6.3T Mini Hydraulic Boom Lift Truck Mounted Cranes With High Operating Efficiency 10
