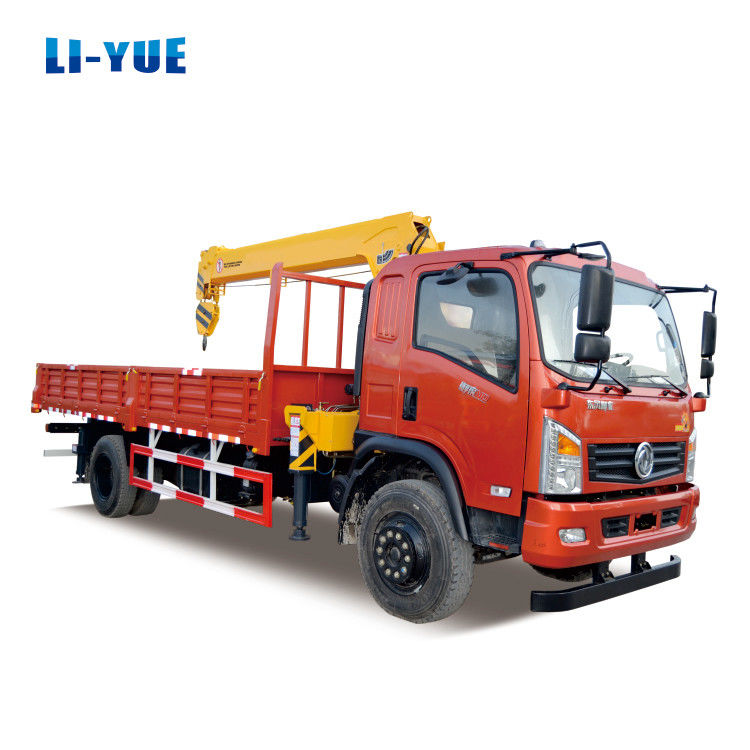

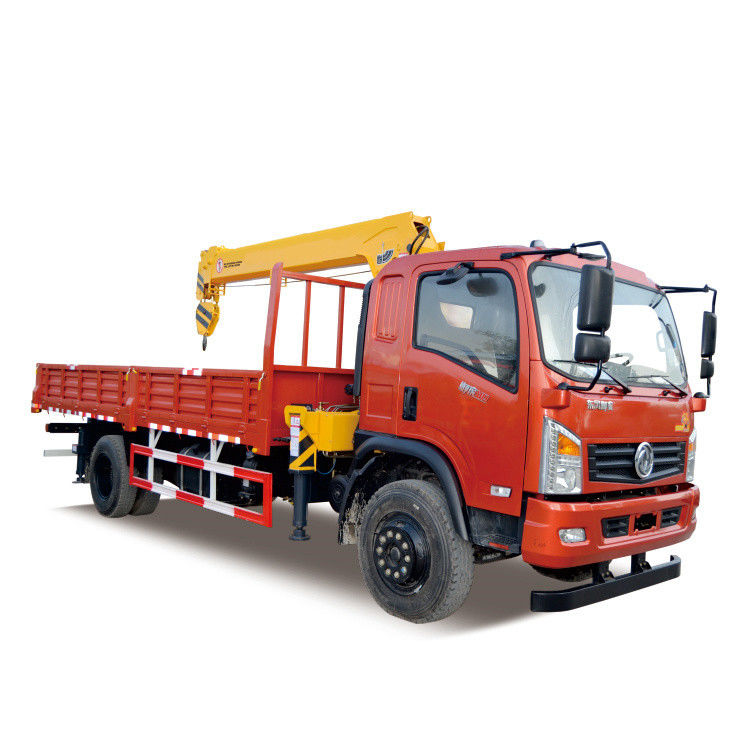

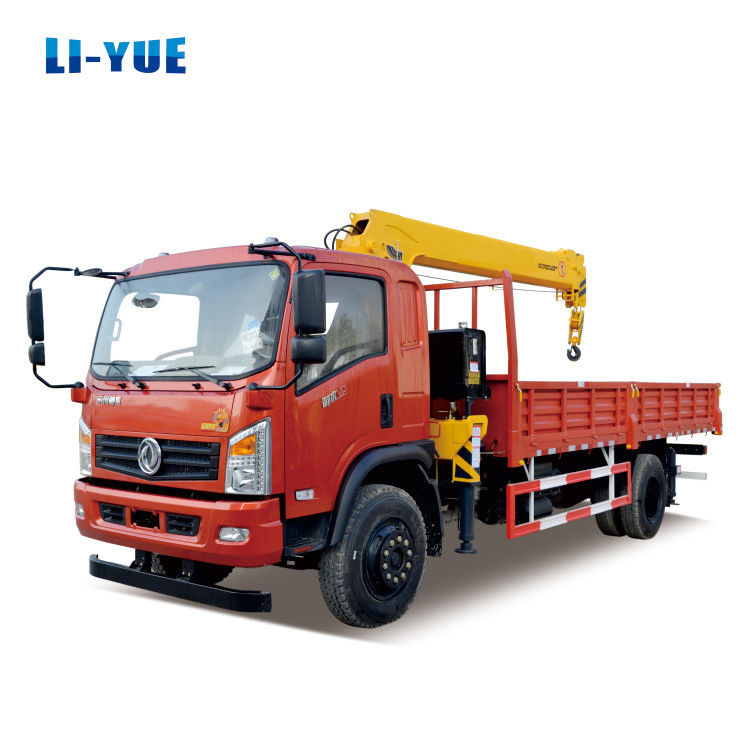

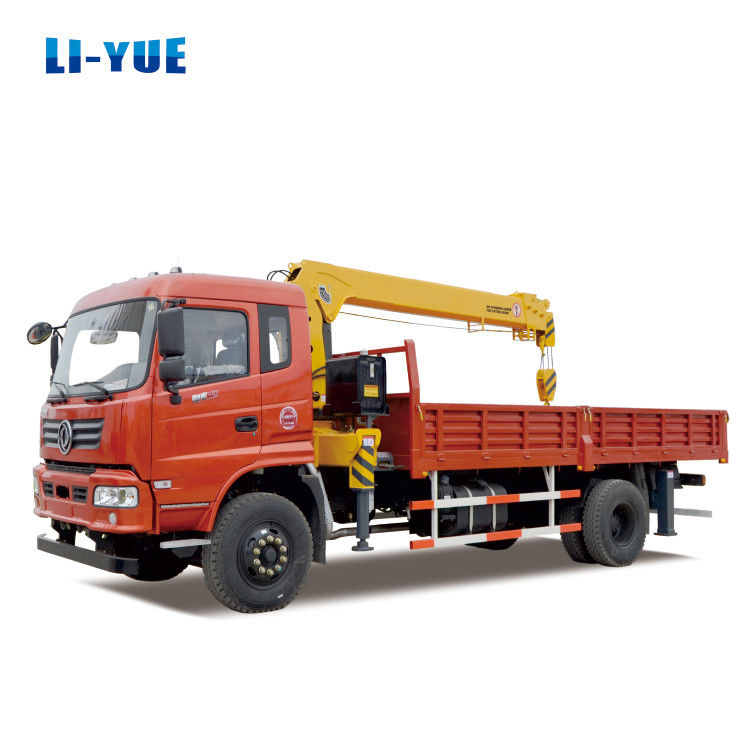

Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction

Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction

Articulated Mobile Crane Truck

8 Tons Mobile Crane Truck

Articulated Mobile Crane With Auger Drills

Place of Origin:

Henan, China

Brand Name:

LIYUE

Contact Us
Request A Quote
Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction
Product Details
Feature:
TRUCK CRANE
Showroom Location:
Indonesia
Condition:
New
Application:
Construction
Rated Loading Capacity:
8 Ton
Rated Lifting Moment:
16.5 T.M
Max. Lifting Height:
18m
Span:
4.6m
Warranty:
1 Year
Hydraulic Cylinder Brand:
MOOG
Hydraulic Pump Brand:
Changjiang
Hydraulic Valve Brand:
Liyuan
Engine Brand:
YUNNEI
UNIQUE SELLING POINT:
High Operating Efficiency
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
Ordinary Product
Warranty Of Core Components:
3 Months
Core Components:
Bearing, Gearbox
Weight (KG):
2500 Kg
Product Name:
Truck Mounted Crane
Crane Type:
Truck Crane Mobile Crane Hydraulic Crane
Hydraulic Parts:
Famous Brand Hydraulic Parts
Capacity:
1-8 Ton Truck Crane
Boom Type:
Hydraulic Straight Arm
Color:
Customer Requirements
Usage:
Construction Lifting
Rotation Angle:
360 Degree
Installation Space:
1000mm
High Quality:
Mobile Crane Lifting Capacity
Port:
Qingdao/ Tianjin/ Lianyungang/ Kashi/ Khorgos/ Erenhot
Highlight:

Articulated Mobile Crane Truck

,

8 Tons Mobile Crane Truck

,

Articulated Mobile Crane With Auger Drills

Payment & Shipping Terms
Price
$13,500.00/units 1-4 units
Packaging Details
Nude packing
Supply Ability
3000 Unit/Units per Year
RELATED PRODUCTS
Good price Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation online Video

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price
Good price Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane online Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price
Good price 4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane online Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price
Good price 6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck online Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price
Contact Us
+86 153 3382 6131
info@liyuemachinery.com
86-153-3382-6131
Contact Now
Product Description

Isuzu/Foton 8t 10t 15t Articulated Mobile Crane Truck With Auger Drills Construction

Product Description
NOTE: The price is only for crane part.
Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 0

Project

Unit

Value

Crane Dimension

Crane Model

-

SQ 8T

Max. Lifting Capacity

kg

8000

Max. Lifting Height

m

15.2

Working Radius/ Span

m

2.5-12.5

Rotation Angle

º

360

Boom Raising Angle Scope

º

0-75

Boom Sections

Piece

4

Outrigger Quantity

Piece

2

Outrigger Span (Fully Extended)

mm

2280-5580

Crane Weight

kg

3315

Hydraulic Tank Capacity

L

160

Max. Flow Rate of Hydraulic Oil System

L/min

55

Hydraulic System Rated Pressure

Mpa

27

Installation Space

mm

1200

Working Parameter

The Basic Boom Length

m

4.85-13

Max. Lifting Torque

T.m

20

Max. Slewing Speed

r/ min

2
Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 1
Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 2
Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 3
Product Process

                               Famous Brand Hydraulic Parts for our Truck Crane



Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 4



                                                            Prodution Progress



Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 5

Packing & Shipping

Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 6

Client Visit

Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 7







Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 8



Certifications

Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 9



Optional Device

Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 10

Foreign Cases

Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 11

Related Products

Isuzu / Foton 8 Tons Articulated Mobile Crane Truck With Auger Drills Construction 12
