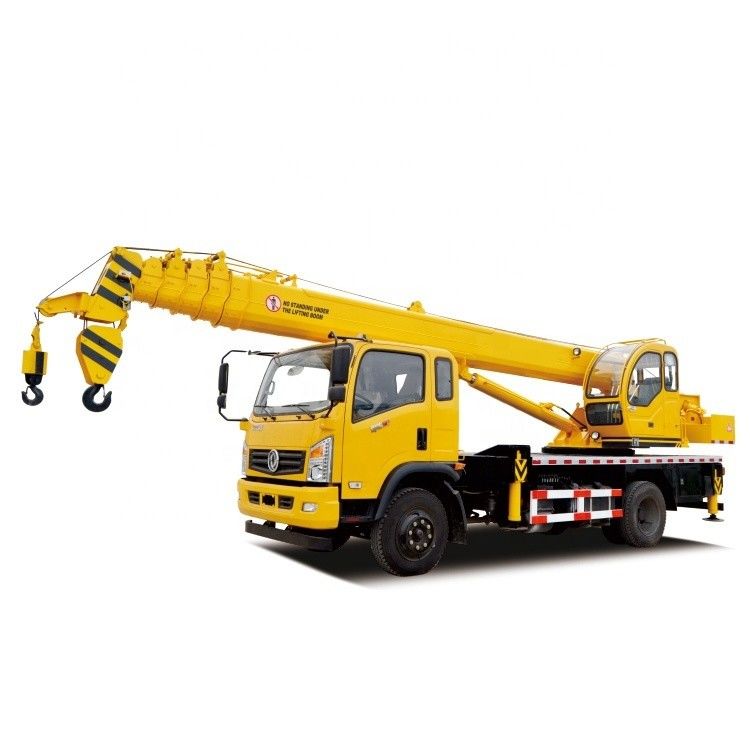

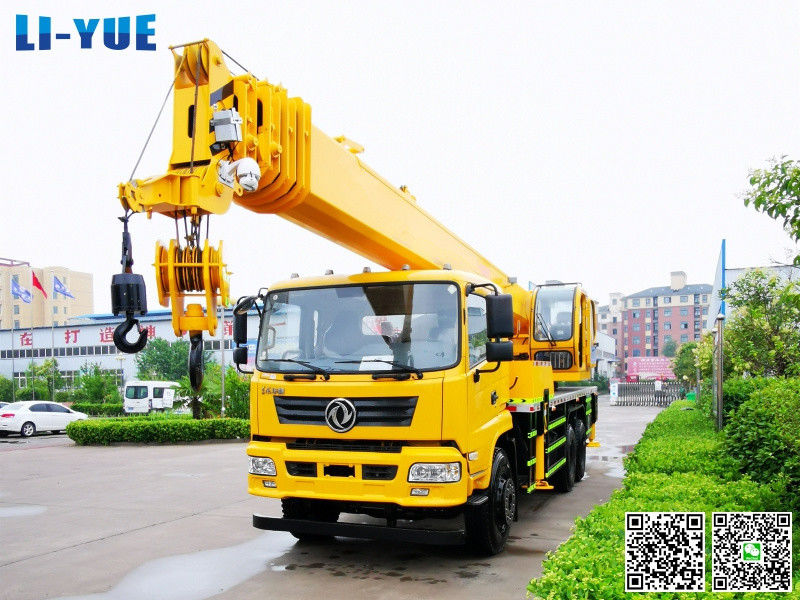

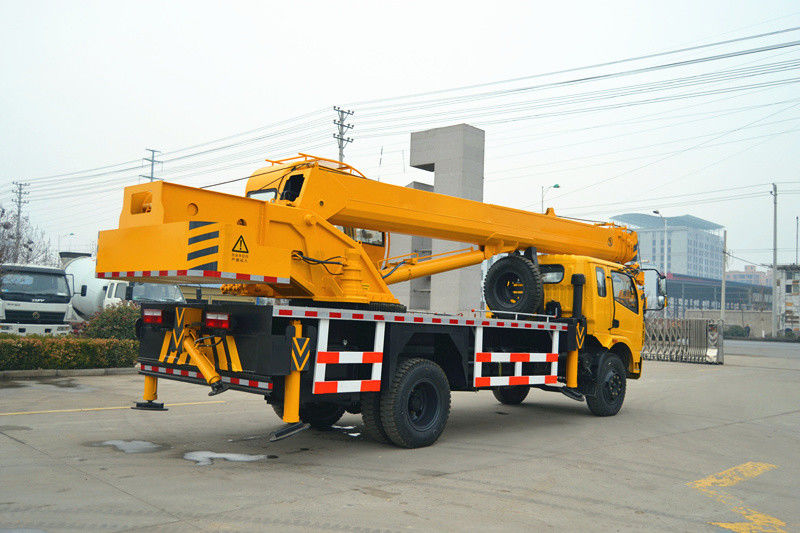

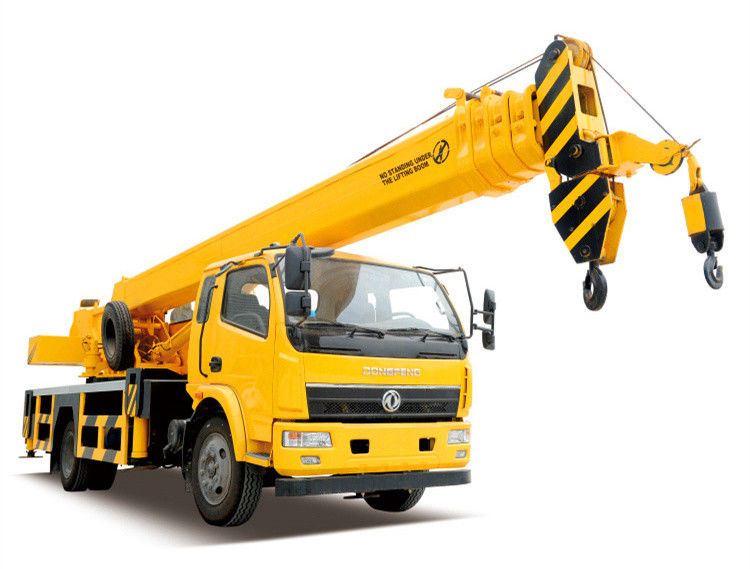

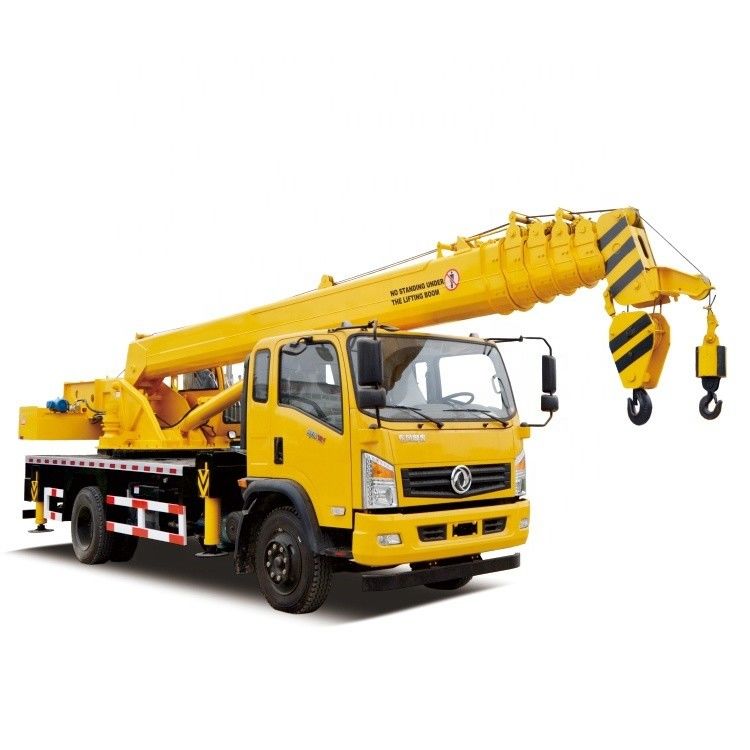

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm

Construction 20 Ton Truck Crane

Hydraulic Straight Arm 20 Ton Truck Crane

Cargo Truck Crane 20 Ton

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

20 TON

Rated Lifting Moment:

520 KN.M

Max. Lifting Height:

47 M

Span:

6.0 M

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

3 Months

Core Components:

Motor, Bearing, Pump, Gearbox, Engine

Weight (KG):

25500 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

1-20 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Keyword:

Crane Truck Mobile Truck Crane Sizes

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Construction 20 Ton Truck Crane

Hydraulic Straight Arm 20 Ton Truck Crane

Cargo Truck Crane 20 Ton

Payment & Shipping Terms

Price

$86,400.00/units 1-4 units

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price

Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price

Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price

Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

Top Quality 6 Tons Dongfeng Chassis Truck Crane With Drill and Basket From Chinese FactoryChina 5 sections boom 6 tons capacity Isuzu Custom Truck Mounted Cranes with Auger

Product Description

Project		Unit	Value
Crane Dimension	Model	-	QY 6-5-26
	Dimensions (LWH)	mm	895021903000
	Outrigger Longitudinal/ Horizontal Span	mm	3650/ 2190-4290
	Outriggers Quantity	piece	5
	Basic Boom Lifting Length	m	7.35-25.35
	Main Boom Elevation	º	3-80
Working Parameter	Boom Quantity	Section	5
	Hydraulic Tank Capacity	L	140
	Max. Total Lifting Capacity	KG	6000
	The Basic Boom Lifting Torque (Max.)	KN.m	180
	Max. Lifting Height	m	26
	Working Radius	m	3--16
	Max. Slewing Speed	r/ min	≤3
Dongfeng Chassis Parameter	Total Mass	kg	8280
	Front And Rear Axle Load	kg	2680/ 5600
	Drive Type	-	4*2 LHD/ RHD
	Emission Standard	-	Euro 3/ Euro 5
	Tyre Size	-	7.50-16LT
	Front/ Rear Track	mm	1690
	Engine Power	HP	95
	Wheel Base	mm	3360
Travelling Parameter	Max. Travel Speed	Km/ h	75
	Max. Gradeability	%	30
	Min. Turning Diameter	m	14
	Approach Angle/ Departure Angle	º	20/ 12
	Fuel Consumption of 100km	L	16
	Min. Ground Clearance	mm	260

Product Process

Famous Brand Hydraulic Parts for our Truck Crane

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm 4

Prodution Progress

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm 5

Packing & Shipping

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm 6

Client Visit

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm 7

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm 8

Certifications

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm 9

Optional Device

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm 10

Foreign Cases

Construction 360HP Dongfeng Cargo 20 Ton Truck Crane With Hydraulic Straight Arm 11
