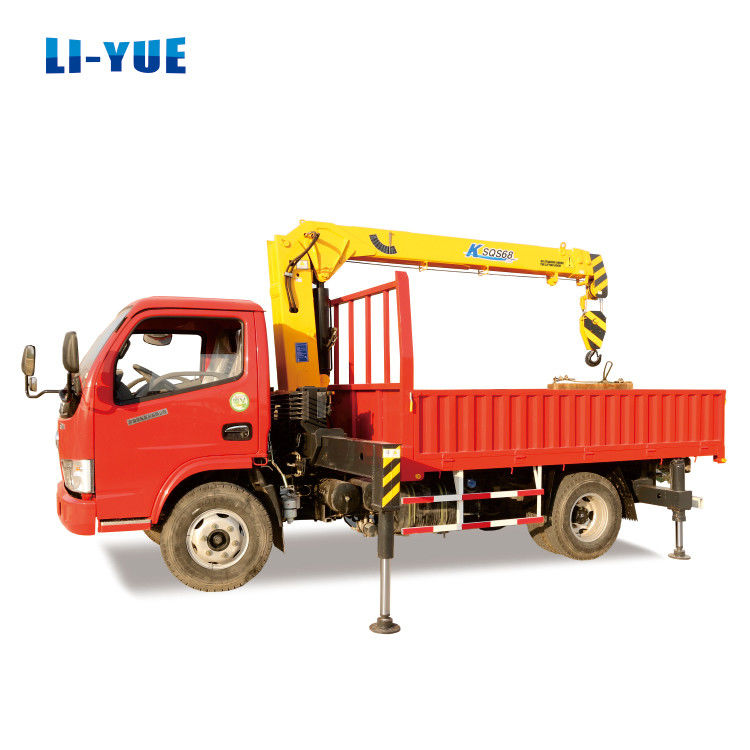

Construction Lifting Mobile Truck Mounted Crane 4 Ton With Working Basket

Construction Lifting Truck Mounted Crane

Truck Mounted Crane With Working Basket

4 Ton Truck Mounted Mobile Crane

Place of Origin:

Henan, China

Brand Name:

LIYUE

Request A Quote

Construction Lifting Mobile Truck Mounted Crane 4 Ton With Working Basket

Product Details

Feature:

TRUCK CRANE

Showroom Location:

Indonesia

Condition:

New

Application:

Construction

Rated Loading Capacity:

4 TON

Rated Lifting Moment:

8.4 T.M

Max. Lifting Height:

11m

Span:

4.6m

Warranty:

1 Year

Hydraulic Cylinder Brand:

MOOG

Hydraulic Pump Brand:

Changjiang

Hydraulic Valve Brand:

Liyuan

Engine Brand:

YUNNEI

UNIQUE SELLING POINT:

High Operating Efficiency

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Marketing Type:

Ordinary Product

Warranty Of Core Components:

1 Year

Core Components:

Bearing, Pump

Weight (KG):

1500 Kg

Product Name:

Truck Mounted Crane

Crane Type:

Truck Crane Mobile Crane Hydraulic Crane

Hydraulic Parts:

Famous Brand Hydraulic Parts

Capacity:

1-4 Ton Truck Crane

Boom Type:

Hydraulic Straight Arm

Color:

Customer Requirements

Usage:

Construction Lifting

Rotation Angle:

360 Degree

Installation Space:

900mm

High Quality:

Mobile Crane Lifting Capacity

Highlight:

Construction Lifting Truck Mounted Crane

Truck Mounted Crane With Working Basket

4 Ton Truck Mounted Mobile Crane

Payment & Shipping Terms

Price

$7,800.00/units 1-4 units

Dongfeng 5 Ton Telescopic Boom Truck Crane Hydraulic Mobile Lorry Crane For Special Transportation

Get Best Price

Video

Customizable 8 Tons Hydraulic Truck Mounted Crane Telescopic Boom Truck Mounted Cranes Mini Crane

Get Best Price

Video

4 Ton Hydraulic Cargo Truck Crane Hydraulic Lorry Crane Mini Truck Mounted Crane

Get Best Price

Video

6.3 Ton Hydraulic Cranes Truck Mounted Crane Knuckle 4X2 Wheel Crane Truck

Get Best Price

+86 153 3382 6131

info@liyuemachinery.com

86-153-3382-6131

Contact Now

Product Description

Construction Lifting Truck Mounted Crane With Working Basket Of High Operating Efficiency

Product Description

NOTE: The price is only for crane part.

Project		Unit	Value
Crane Dimension	Crane Model	-	SQ 4T
	Max. Lifting Capacity	kg	4000
	Max. Lifting Height	m	11.5
	Working Radius/ Span	m	2.1-7.93
	Rotation Angle	º	360
	Boom Raising Angle Scope	º	0-75
	Boom Sections	Piece	3
	Outrigger Quantity	Piece	2
	Outrigger Span (Fully Extended)	mm	1989-3329
	Crane Weight	kg	1271
	Hydraulic Tank Capacity	L	30
	Max. Flow Rate of Hydraulic Oil System	L/min	25
	Hydraulic System Rated Pressure	Mpa	20
	Installation Space	mm	850
Working Parameter	The Basic Boom Length	m	3.3-11.5
	Max. Lifting Torque	T.m	6.8
	Max. Slewing Speed	r/ min	2
